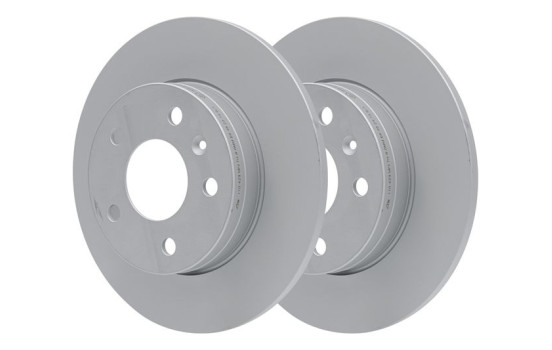

Brake disc 24.0110-0423.1 ATE
Product number: 1771456
Manufacturer number: 24.0110-0423.1
EAN: 4006633495806
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-

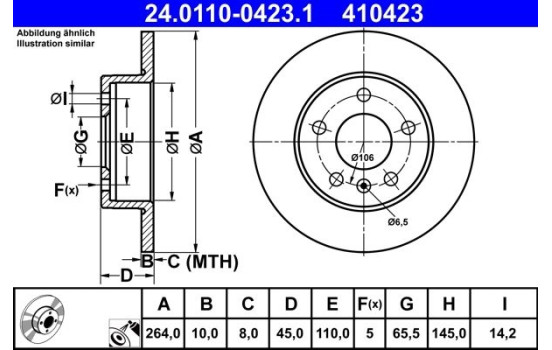

Specifications
Outer diameter [mm] 264,0 Brake Disc Type Complete Surface Coated Number of Holes 5 Brake pads Exclusive Inner diameter [mm] 145,0 Bolt Hole Circle Ø [mm] 110,0 Centering Diameter [mm] 65,5 Inspection Tag E1 90R-02C0165 / 0635 MAPP code available Guarantee 2 years Height [mm] 45,0 Additional information With screws Brake disc thickness (mm) 10,0 Minimum thickness (mm) 8,0 Hole diameter [mm] 14,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18707 ATE 24.0110-0423.1 (this product) BELACO BDS1427 BORG & BECK BBD4114 BOSCH 0 986 479 C66 BOSCH 0 986 479 516 DON PCD21472 Manufacturer Manufacturer number Price HELLA 8DD 355 122-821 HELLA PAGID 8DD 355 122-821 MINTEX MDC2699 TEXTAR 92277303 TRW DF6915 ZIMMERMANN 430.2628.20 -
Applicability
OPEL ZAFIRA / ZAFIRA / ZAFIRA FAMILY B (A05) | 07.2005-04.2015 1.6 CNG (M75) - 1598ccm, 94pk, 69kw - Z 16 YNG ZAFIRA / ZAFIRA FAMILY B (A05) | 07.2005-04.2015 1.6 CNG Turbo (M75) - 1598ccm, 150pk, 110kw - A 16 XNT, Z 16 XNT ZAFIRA B ZAFIRA B Box Body/MPV (A05) | 07.2005-04.2015 1.6 CNG Turbo VAN (M75) - 1598ccm, 150pk, 110kw - A 16 XNT, Z 16 XNT -
Original part numbers
5 69 125 VAUXHALL 5 69 125 OPEL 93188707 VAUXHALL 93188707 OPEL -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
