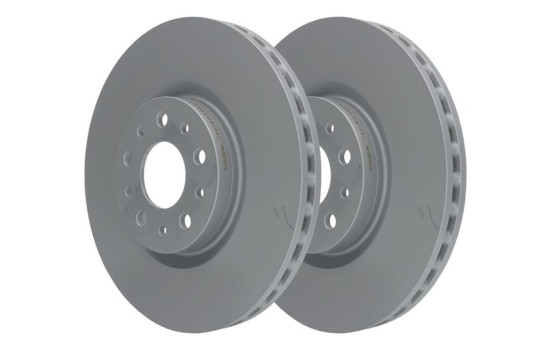

Brake Disc 24.0126-0192.1 ATE
Product number: 1404576
Manufacturer number: 24.0126-0192.1
EAN: 4006633475877
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

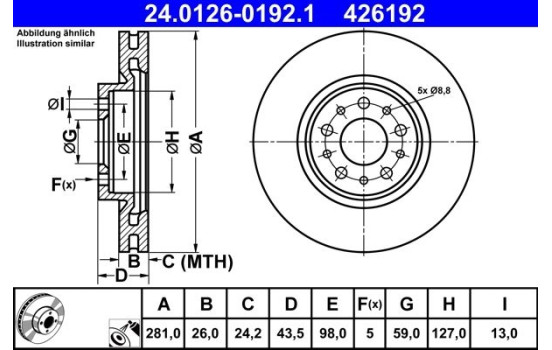

Outer diameter [mm] 281,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Brake pads Exclusive Inner diameter [mm] 127,0 Bolt Hole Circle Ø [mm] 98,0 Centering Diameter [mm] 59,0 Bore Ø [mm] 13,0 Inspection Tag E1 90R-02C0115/1132 MAPP code available Warranty 2 years Height [mm] 43,5 Brake disc thickness (mm) 26,0 Minimum thickness (mm) 24,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18585 ABE C3F039ABE AP 20145 V ATE 24.0126-0192.1 (this product) BELACO BDS2115 BLUE PRINT ADBP430068 BORG & BECK BBD5554 BOSCH 0 986 479 G82 BRECO BV 9421 BREMBO 09.5180.41 CAR 142.2159 COMLINE ADC2974V DELPHI BG4821C DON PCD17862 FEBI BILSTEIN 173028 FERODO DDF2776C HELLA 8DD 355 132-131 HELLA PAGID 8DD 355 132-131 MAGNETI MARELLI 360406165801 MAGNETI MARELLI 361302040813 Manufacturer Manufacturer number Price MAXGEAR 19-4766 MAXGEAR 19-4693 MEYLE 215 523 0037/PD MINTEX MDC2877C MOTAQUIP LVBD2025 NATIONAL NBD2077 QUARO QD1624 ROTINGER RT 22227-GL T9 ROTINGER RT 22227-GL T6 ROTINGER RT 22227-GL ROTINGER RT 22227-GL T3 ROTINGER RT 22227 ROTINGER RT 22227-GL T5 SKF VKBD 80809 V2 SWAG 33 10 1591 TEXTAR 92304803 TRISCAN 8120 15147C TRW DF6933 ZIMMERMANN 230.2385.20 -
Applicability
FIAT TIPO Estate TIPO Estate (356_, 357_) | 03.2016-10.2020 1.4 (356WXF1B) - 1368ccm, 120pk, 88kw - 940 B7.000 TIPO Estate (356_, 357_) | 03.2016-10.2020 1.4 LPG (356WXF1B) - 1368ccm, 120pk, 88kw - 940 B7.000 TIPO Estate (356_, 357_) | 03.2016-10.2020 1.6 D (356WXG1B) - 1598ccm, 120pk, 88kw - 552 80 444, 552 60 384 TIPO Estate (356_, 357_) | 03.2016-10.2020 1.6 Multijet (357WXG1) - 1598ccm, 131pk, 96kw - 463 46 020 TIPO Hatchback TIPO Hatchback (356_, 357_) | 03.2016-10.2020 1.4 (356HXF1B) - 1368ccm, 120pk, 88kw - 940 B7.000 TIPO Hatchback (356_, 357_) | 03.2016-10.2020 1.4 LPG (356HXF1B) - 1368ccm, 120pk, 88kw - 940 B7.000 TIPO Hatchback (356_, 357_) | 03.2016-10.2020 1.6 (356HXE11) - 1598ccm, 110pk, 81kw - 552 68 036 TIPO Hatchback (356_, 357_) | 03.2016-10.2020 1.6 D (356HXG1B, 356HXG11) - 1598ccm, 120pk, 88kw - 552 80 444, 552 60 384 TIPO Hatchback (356_, 357_) | 03.2016-10.2020 1.6 Multijet (357HXG1) - 1598ccm, 131pk, 96kw - 463 46 020 TIPO Saloon TIPO Saloon (356_, 357_) | 10.2015-10.2020 1.4 LPG (356SXF1B) - 1368ccm, 120pk, 88kw - 940 B7.000 TIPO Saloon (356_, 357_) | 10.2015-10.2020 1.6 (356SXE11) - 1598ccm, 110pk, 81kw - 552 68 036 TIPO Saloon (356_, 357_) | 10.2015-10.2020 1.6 D (356SXG1B) - 1598ccm, 120pk, 88kw - 940 C1.000, 552 60 384 -
Original part numbers
52067394 FIAT 52017293 FIAT 52017292 FIAT 52067393 FIAT -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
