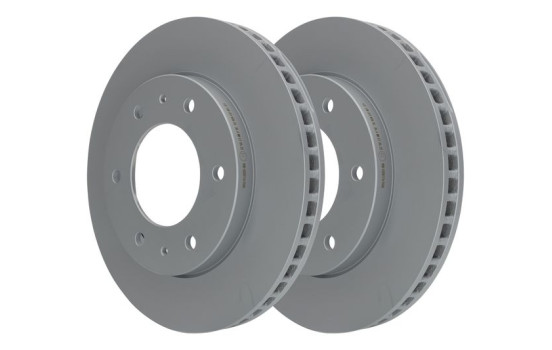

Brake Disc 24.0128-0312.1 ATE
Product number: 1424052
Manufacturer number: 24.0128-0312.1
EAN: 4006633461504
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

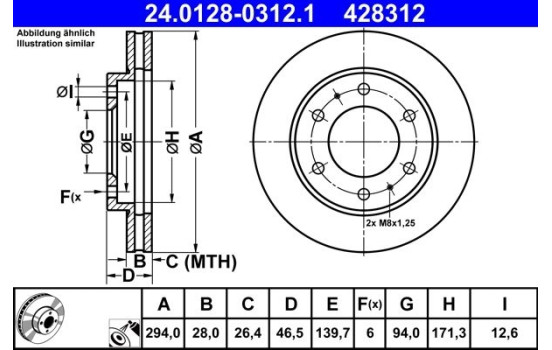

Outer diameter [mm] 294,0 Brake Disc Type Vented Surface Coated Number of Holes 6 Brake pads Exclusive Inner diameter [mm] 171,3 Bolt Hole Circle Ø [mm] 139,7 Centering Diameter [mm] 94,0 Inspection Tag E1 90R-02C0115 / 1060 MAPP code available Guarantee 2 years Height [mm] 46,5 Brake disc thickness (mm) 28,0 Minimum thickness (mm) 26,4 Hole diameter [mm] 12,6 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17958 AP 25194 AP 25194 X AP 25194 V ASHIKA 60-05-534C ASHUKI C652-59 ATE 24.0128-0312.1 (this product) BELACO BDS1273HC BLUE PRINT ADC443107 BLUE PRINT ADC443133 BORG & BECK BBD4692 BOSCH 0 986 479 F45 BOSCH 0 986 479 D69 BOSCH 0 986 479 704 BRECO BS 8804 BRECO BV 8804 BREMBO 09.A868.11 BREMBO 09.A868.1X BREMBO 09.A868.10 COMLINE ADC0378V DELPHI BG4257 DON PCD12192 FEBI BILSTEIN 170044 FEBI BILSTEIN 28437 FERODO DDF1818C FI.BA FBD194 FREMAX BD-7019 HELLA 8DD 355 115-731 HELLA PAGID 8DD 355 115-731 HERTH+BUSS JAKOPARTS J3305069 JAPANPARTS DI534JM JAPANPARTS DI-534C JAPKO 60534C Manufacturer Manufacturer number Price JURATEK MIT156 KAVO PARTS BR-5770-C KEY PARTS KBD4692 MAGNETI MARELLI 361302040586 MAGNETI MARELLI 360406179102 MASTER-SPORT 24011049201-PCS-MSP MASTER-SPORT 24011049201-SET-MSP MASTER-SPORT 24011049201-PCS-MS MASTER-SPORT 24011049201-SET-MS MAXGEAR 19-4910 MEYLE 32-15 521 0028 MEYLE 32-15 521 0028/PD MINTEX MDC1960 MOTAQUIP LVBD1526 NATIONAL NBD2047 NPS M330I69 OPTIMAL BS-8594C Omnicraft 2134574 QUARO QD0625 ROTINGER RT 20743-GL T3 ROTINGER RT 20743-GL ROTINGER RT 20743 ROTINGER RT 20743-GL T6 ROTINGER RT 20743-GL T9 ROTINGER RT 20743-GL T5 SKF VKBD 80340 V2 SWAG 80 92 8437 SWAG 33 10 6375 TEXTAR 92180205 TEXTAR 92180203 TRW DF6735 ZIMMERMANN 380.2172.20 -
Applicability
FIAT FULLBACK Pickup FULLBACK Pickup (502_, 503_) | 04.2016-??? 2.4 D (KT0T) - 2442ccm, 154pk, 113kw - 4N15 FULLBACK Pickup (502_, 503_) | 04.2016-??? 2.4 D 4x4 (KT0T) - 2442ccm, 150pk, 110kw - 4N15 FULLBACK Pickup (502_, 503_) | 04.2016-??? 2.4 D 4x4 (KT0T) - 2442ccm, 154pk, 113kw - 4N15 FULLBACK Pickup (502_, 503_) | 04.2016-??? 2.4 D 4x4 (KT0T) - 2442ccm, 181pk, 133kw - 4N15 MITSUBISHI L200 / L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 D - 2477ccm, 75pk, 55kw - L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 D (KA4T) - 2477ccm, 90pk, 66kw - 4D56-TD L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 D 4WD - 2477ccm, 75pk, 55kw - L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 DI-D (KA4T) - 2477ccm, 178pk, 131kw - 4D56 (16V) L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 DI-D (KA4T) - 2477ccm, 128pk, 94kw - 4D56 (16V), 4D56-HP L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 DI-D (KA4T) - 2477ccm, 136pk, 100kw - 4D56-HP L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 DI-D (KA4T) - 2477ccm, 167pk, 123kw - 4D56-HP L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 DI-D 16V 4WD - 2477ccm, 133pk, 98kw - 4D56 (16V) L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 DI-D 4WD (KB4T) - 2477ccm, 136pk, 100kw - 4D56-HP L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 DI-D 4WD (KB4T) - 2477ccm, 167pk, 123kw - 4D56-HP L200 / TRITON (KA_T, KB_T) | 11.2005-12.2015 2.5 DI-D 4WD (KB4T) - 2477ccm, 178pk, 131kw - 4D56-HP L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.2 DI-D - 2268ccm, 150pk, 110kw - 4N14 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.2 DI-D 4WD - 2268ccm, 150pk, 110kw - 4N14 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.4 DI-D (KJ0T) - 2442ccm, 154pk, 113kw - 4N15 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.4 DI-D 4WD (KJ0T) - 2442ccm, 154pk, 113kw - 4N15 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.4 DI-D 4WD (KL1T) - 2442ccm, 181pk, 133kw - 4N15 L200 / TRITON (KJ_, KK_, KL_) | 11.2014-??? 2.5 DI-D 4WD - 2477ccm, 136pk, 100kw - 4D56 (16V) L200 / TRITON Platform/Chassis (KA_T, KB_T) | 08.2007-12.2015 2.5 DI-D (KA4T) - 2477ccm, 128pk, 94kw - 4D56 (16V) -
Original part numbers
4615A201 MITSUBISHI 6000609712 FIAT MN102276 MITSUBISHI MZ690858 MITSUBISHI 4615A147 MITSUBISHI -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
