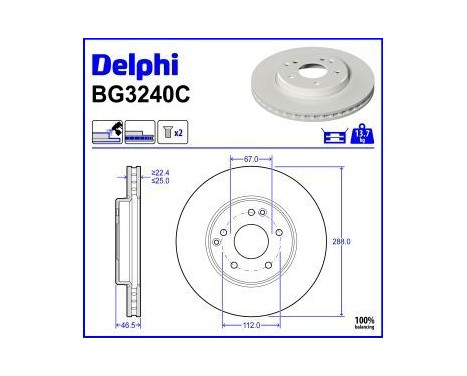

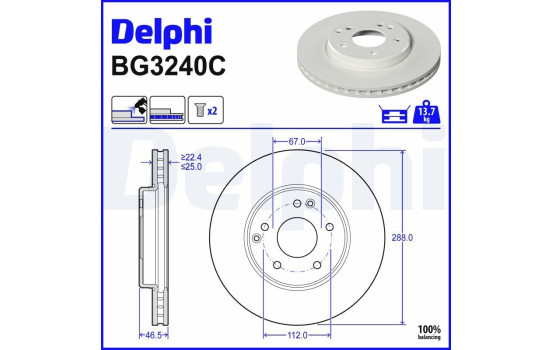

Brake Disc BG3240C Delphi

Brake Disc BG3240C Delphi

Product number: 1285994

Manufacturer number: BG3240C

EAN: 5012759529669

€ 80,77

Incl. VAT
View product specifications
In stock
Delivery 07-12-2024
Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast delivery
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

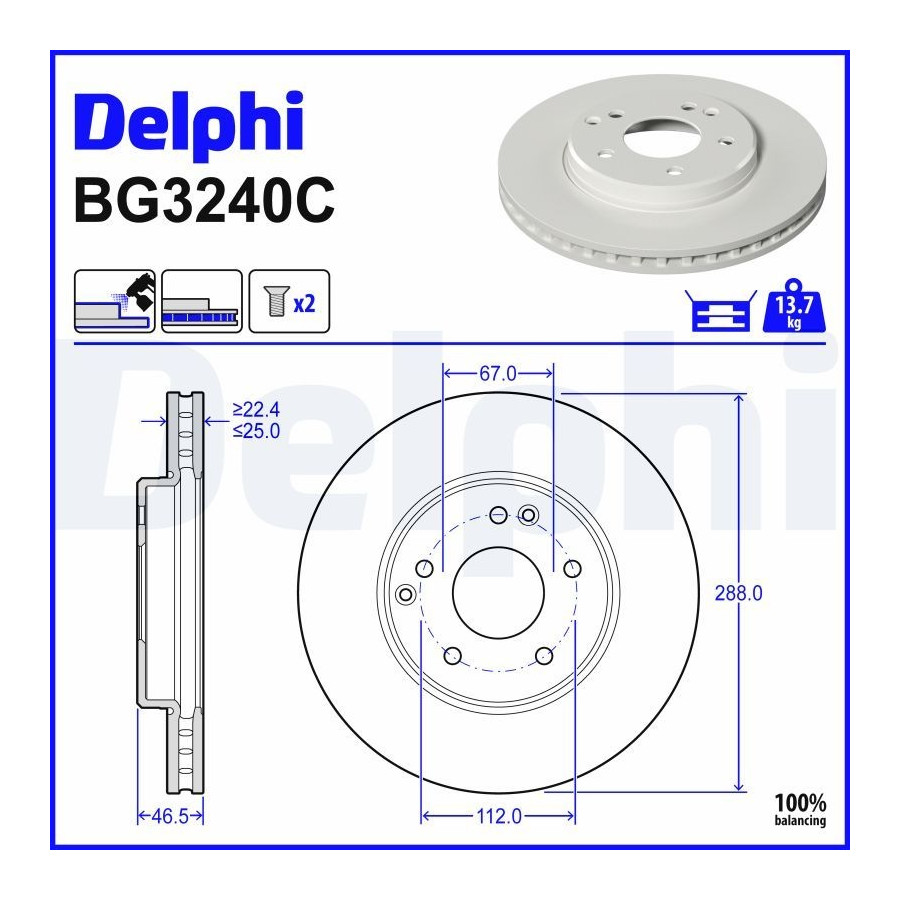

  • Specifications

    Outer diameter [mm]288
    Fitting PositionFront Axle
    Brake Disc TypeVented
    SurfaceAnticorrosion coating
    Coated
    Number of Holes5
    Brake padsExclusive
    Centering Diameter [mm]67
    Inspection TagE1 90R-02C0277/1358
    Warranty2 years
    Height [mm]46,5
    Additional informationWithout ABS sensor ring
    Brake disc thickness (mm)25
    Minimum thickness (mm)22,4

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 16448
    € 40,50
    AP 24678 E
    AP 24678 V
    AP X 24678
    AP 24903 V
    AP 24903 X
    AP X 24903
    AP 24903
    ASHUKI P330-020
    BELACO BDS1054HC
    BLUE PRINT ADU174311
    € 33,65
    BORG & BECK BBD4470
    BOSCH 0 986 478 624
    € 39,87
    BRAXIS AE0105
    BRECO BS 8219
    BRECO BS 8402
    BRECO BV 8219
    BRECO BV 8402
    BREMBO 09.8411.75
    € 61,88
    BREMBO 09.8411.11
    € 41,37
    BREMBO 09.6845.75
    € 66,18
    BREMBO 09.6845.11
    € 44,23
    BREMBO 09.8411.10
    BREMBO 09.8411.1X
    € 80,21
    BREMBO 09.6845.14
    BREMSI CD7135V
    BSG BSG 60-210-033
    CHAMPION 562013CH
    CIFAM 800-701C
    COMLINE ADC1603V
    DELPHI BG3240C (this product)
    DENCKERMANN B130354
    DON PCD10232
    EUROBRAKE 5815203332
    EUROBRAKE 5815313332
    FEBI BILSTEIN 04631
    FEBI BILSTEIN 18886
    € 35,90
    FERODO DDF1135C
    € 101,66
    FERODO DDF1135
    € 52,17
    FI.BA FBD116
    FREMAX BD-0410
    FTE 9072018
    FTE BS4539
    GIRLING 6041805
    GIRLING 6041801
    HELLA 8DD 355 127-551
    HELLA 8DD 355 107-481
    HELLA PAGID 8DD 355 127-551
    HELLA PAGID 8DD 355 107-481
    JURATEK MER145
    JURID 562013JC
    KEY PARTS KBD4470
    LORO 231-03-065
    LPR M2601VR
    LYNXauto BN-1081
    Manufacturer Manufacturer number Price
    MAGNETI MARELLI 361302040364
    MAGNETI MARELLI 360406006905
    MAGNETI MARELLI 361302040194
    MAGNETI MARELLI 360406006305
    MAGNETI MARELLI 360406006902
    MAGNETI MARELLI 360406006901
    MAGNETI MARELLI 361302040652
    MAGNETI MARELLI 360406006301
    MAXGEAR 19-0725
    € 37,67
    MAXGEAR 19-0725MAX
    € 41,97
    MAXGEAR 19-0725SPORT
    € 57,99
    MAXTECH 873548
    METELLI 23-0701C
    METZGER 6110024
    MEYLE 015 521 2035
    € 42,00
    MEYLE 083 521 2035/PD
    € 40,23
    MINTEX MDC852C
    MINTEX MDC852
    MOTAQUIP LVBD829
    NATIONAL NBD783
    NK 313332
    NK 203332
    OPEN PARTS BDR1314.20
    Omnicraft 2134451
    Omnicraft 2133986
    QUARO QD3196HC
    QUARO QD3196
    QUINTON HAZELL BDC4539
    RAICAM RD00449
    ROTINGER RT 2912-GL T9
    ROTINGER RT 2912-GL T5
    ROTINGER RT 2912-GL
    ROTINGER RT 2912-GL T6
    ROTINGER RT 2912-GL T3
    ROTINGER RT 2912
    SASIC 6106109
    SKF VKBD 80020 V2
    STELLOX 6020-3332V-SX
    SWAG 10 91 8886
    TEXTAR 92105905
    € 54,73
    TOPRAN 400 856
    TOPRAN 400 854
    TRISCAN 8120 23133C
    TRUSTING DF827
    TRW DF4180
    € 45,11
    TRW DF2779
    VAICO V30-80034
    VAICO V30-80042
    VALEO 672922
    VALEO 186864
    VALEO 186467
    ZIMMERMANN 400.1435.20
    € 47,46
    ZIMMERMANN 400.1435.52
    € 92,66
    ZIMMERMANN 400.1435.53
    € 101,42

  • Applicability

    MERCEDES-BENZ
    C-CLASS
    C-CLASS (W202) | 03.1993-05.2000 C 200 Kompressor (202.025) - 1998ccm, 180pk, 132kw - M 111.944
    C-CLASS (W202) | 03.1993-05.2000 C 200 Kompressor (202.025) - 1998ccm, 192pk, 141kw - M 111.944
    C-CLASS (W202) | 03.1993-05.2000 C 230 Kompressor (202.024) - 2295ccm, 193pk, 142kw - M 111.975
    C-CLASS (W202) | 03.1993-05.2000 C 240 (202.026) - 2398ccm, 170pk, 125kw - M 112.910
    C-CLASS (W202) | 03.1993-05.2000 C 250 Turbo-D (202.128) - 2497ccm, 150pk, 110kw - OM 605.960
    C-CLASS (W202) | 03.1993-05.2000 C 280 (202.028) - 2799ccm, 193pk, 142kw - M 104.941
    C-CLASS (W202) | 03.1993-05.2000 C 280 (202.029) - 2799ccm, 197pk, 145kw - M 112.920
    C-CLASS (W202) | 03.1993-05.2000 C 36 AMG (202.028) - 3606ccm, 280pk, 206kw - M 104.941 (AMG 3.6)
    C-CLASS (W203) | 05.2000-02.2007 C 180 (203.035) - 1998ccm, 129pk, 95kw - M 111.951
    C-CLASS (W203) | 05.2000-02.2007 C 180 Kompressor (203.046) - 1796ccm, 143pk, 105kw - M 271.946
    C-CLASS (W203) | 05.2000-02.2007 C 200 CDI (203.004) - 2148ccm, 102pk, 75kw - OM 611.962
    C-CLASS (W203) | 05.2000-02.2007 C 200 CDI (203.004) - 2148ccm, 116pk, 85kw - OM 611.962
    C-CLASS (W203) | 05.2000-02.2007 C 200 CDI (203.007) - 2148ccm, 122pk, 90kw - OM 646.963, OM 646.962
    C-CLASS (W203) | 05.2000-02.2007 C 200 CGI Kompressor (203.043) - 1796ccm, 170pk, 125kw - M 271.942
    C-CLASS (W203) | 05.2000-02.2007 C 200 Kompressor (203.042) - 1796ccm, 163pk, 120kw - M 271.940
    C-CLASS (W203) | 05.2000-02.2007 C 200 Kompressor (203.045) - 1998ccm, 163pk, 120kw - M 111.955
    C-CLASS (W203) | 05.2000-02.2007 C 220 CDI (203.006) - 2148ccm, 136pk, 100kw - OM 611.962
    C-CLASS (W203) | 05.2000-02.2007 C 220 CDI (203.006, 203.008) - 2148ccm, 143pk, 105kw - OM 646.963, OM 611.962
    C-CLASS (W203) | 05.2000-02.2007 C 220 CDI (203.008) - 2148ccm, 150pk, 110kw - OM 646.963
    C-CLASS Coupe
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 160 Kompressor (203.730) - 1796ccm, 122pk, 90kw - M 271.921
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 180 (203.735) - 1998ccm, 129pk, 95kw - M 111.951
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 180 Kompressor (203.746) - 1796ccm, 143pk, 105kw - M 271.946
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 200 CDI (203.707) - 2148ccm, 122pk, 90kw - OM 646.962
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 200 CGI Kompressor (203.743) - 1796ccm, 170pk, 125kw - M 271.942
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 200 Kompressor (203.742) - 1796ccm, 163pk, 120kw - M 271.940
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 200 Kompressor (203.745) - 1998ccm, 163pk, 120kw - M 111.955
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 220 CDI - 2148ccm, 136pk, 100kw - OM 611.962
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 220 CDI (203.706) - 2148ccm, 143pk, 105kw - OM 611.962
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 220 CDI (203.708) - 2148ccm, 150pk, 110kw - OM 646.963
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 230 Kompressor (203.740) - 1796ccm, 192pk, 141kw - M 271.948
    C-CLASS Coupe (CL203) | 03.2001-05.2008 C 230 Kompressor (203.747) - 2295ccm, 197pk, 145kw - M 111.981
    C-CLASS T-Model
    C-CLASS T-Model (S202) | 06.1996-03.2001 C 200 T Kompressor (202.082) - 1998ccm, 192pk, 141kw - M 111.944
    C-CLASS T-Model (S202) | 06.1996-03.2001 C 200 T Kompressor (202.087) - 1998ccm, 163pk, 120kw - M 111.956
    C-CLASS T-Model (S202) | 06.1996-03.2001 C 230 T (202.083) - 2295ccm, 150pk, 110kw - M 111.974
    C-CLASS T-Model (S202) | 06.1996-03.2001 C 230 T Kompressor (202.085) - 2295ccm, 193pk, 142kw - M 111.975
    C-CLASS T-Model (S202) | 06.1996-03.2001 C 240 T (202.086) - 2398ccm, 170pk, 125kw - M 112.910
    C-CLASS T-Model (S202) | 06.1996-03.2001 C 240 T (202.088) - 2597ccm, 170pk, 125kw - M 112.915
    C-CLASS T-Model (S202) | 06.1996-03.2001 C 250 T Turbo-D (202.188) - 2497ccm, 150pk, 110kw - OM 605.960
    C-CLASS T-Model (S202) | 06.1996-03.2001 C 280 T (202.089) - 2799ccm, 197pk, 145kw - M 112.920
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 180 (203.235) - 1998ccm, 129pk, 95kw - M 111.951
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 180 Kompressor (203.246) - 1796ccm, 143pk, 105kw - M 271.946
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 CDI (203.204) - 2148ccm, 102pk, 75kw - OM 611.962
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 CDI (203.204) - 2148ccm, 116pk, 85kw - OM 611.962
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 CDI (203.207) - 2148ccm, 122pk, 90kw - OM 646.963, OM 646.962
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 CGI Kompressor (203.243) - 1796ccm, 170pk, 125kw - M 271.942
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 Kompressor (203.242) - 1796ccm, 163pk, 120kw - M 271.940
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 Kompressor (203.245) - 1998ccm, 163pk, 120kw - M 111.955
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 220 CDI (203.206, 203.208) - 2148ccm, 143pk, 105kw - OM 646.963, OM 611.962
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 220 CDI (203.208) - 2148ccm, 136pk, 100kw - OM 646.963
    C-CLASS T-Model (S203) | 03.2001-08.2007 C 220 CDI (203.208) - 2148ccm, 150pk, 110kw - OM 646.963
    CLC-CLASS
    CLC-CLASS (CL203) | 05.2008-06.2011 CLC 160 (203.731) - 1597ccm, 129pk, 95kw - M 271.911
    CLC-CLASS (CL203) | 05.2008-06.2011 CLC 180 Kompressor (203.746) - 1796ccm, 143pk, 105kw - M 271.946
    CLC-CLASS (CL203) | 05.2008-06.2011 CLC 200 CDI (203.707) - 2148ccm, 122pk, 90kw - OM 646.962
    CLC-CLASS (CL203) | 05.2008-06.2011 CLC 200 Kompressor (203.741) - 1796ccm, 184pk, 135kw - M 271.957
    CLC-CLASS (CL203) | 05.2008-06.2011 CLC 220 CDI (203.708) - 2148ccm, 150pk, 110kw - OM 646.963
    CLK
    CLK (C208) | 06.1997-12.2003 CLK 200 (208.335) - 1998ccm, 136pk, 100kw - M 111.945
    CLK (C208) | 06.1997-12.2003 CLK 200 Kompressor (208.344) - 1998ccm, 163pk, 120kw - M 111.956
    CLK (C208) | 06.1997-12.2003 CLK 200 Kompressor (208.345) - 1998ccm, 192pk, 141kw - M 111.944
    CLK (C208) | 06.1997-12.2003 CLK 230 Kompressor (208.347) - 2295ccm, 193pk, 142kw - M 111.975, M 111.973
    CLK (C208) | 06.1997-12.2003 CLK 230 Kompressor (208.348) - 2295ccm, 197pk, 145kw - M 111.982
    CLK (C209) | 06.2002-05.2009 CLK 200 CGI (209.343) - 1796ccm, 170pk, 125kw - M 271.942
    CLK (C209) | 06.2002-05.2009 CLK 200 Kompressor (209.342) - 1796ccm, 163pk, 120kw - M 271.940
    CLK (C209) | 06.2002-05.2009 CLK 220 CDI (209.308) - 2148ccm, 136pk, 100kw - OM 646.966
    CLK (C209) | 06.2002-05.2009 CLK 220 CDI (209.308) - 2148ccm, 150pk, 110kw - OM 646.966
    CLK Convertible
    CLK Convertible (A208) | 03.1998-03.2002 CLK 200 (208.435) - 1998ccm, 136pk, 100kw - M 111.941, M 111.945
    CLK Convertible (A208) | 03.1998-03.2002 CLK 200 Kompressor (208.445) - 1998ccm, 192pk, 141kw - M 111.944
    CLK Convertible (A208) | 03.1998-03.2002 CLK 230 Kompressor (208.447) - 2295ccm, 193pk, 142kw - M 111.975, M 111.973
    CLK Convertible (A208) | 03.1998-03.2002 CLK 320 (208.465) - 3199ccm, 218pk, 160kw - M 112.940
    CLK Convertible (A208) | 03.1998-03.2002 CLK 430 (208.470) - 4266ccm, 279pk, 205kw - M 113.943
    CLK Convertible (A209) | 06.2002-03.2010 CLK 200 CGI (209.343) - 1796ccm, 170pk, 125kw - M 271.942
    E-CLASS
    E-CLASS (W210) | 06.1995-03.2002 E 200 (210.035) - 1998ccm, 136pk, 100kw - M 111.942
    E-CLASS (W210) | 06.1995-03.2002 E 200 CDI (210.007) - 2148ccm, 116pk, 85kw - OM 611.961
    E-CLASS (W210) | 06.1995-03.2002 E 200 CDI (210.007) - 2151ccm, 102pk, 75kw - OM 611.961
    E-CLASS (W210) | 06.1995-03.2002 E 200 D (210.003) - 1997ccm, 88pk, 65kw - OM 604.917
    E-CLASS (W210) | 06.1995-03.2002 E 200 Kompressor (210.045) - 1998ccm, 186pk, 137kw - M 111.947
    E-CLASS (W210) | 06.1995-03.2002 E 200 Kompressor (210.048) - 1998ccm, 163pk, 120kw - M 111.957
    E-CLASS (W210) | 06.1995-03.2002 E 220 CDI (210.006) - 2148ccm, 143pk, 105kw - OM 611.961
    E-CLASS (W210) | 06.1995-03.2002 E 220 CDI (210.006) - 2151ccm, 125pk, 92kw - OM 611.961
    E-CLASS (W210) | 06.1995-03.2002 E 220 D - 2155ccm, 75pk, 55kw - OM 604.912
    E-CLASS (W210) | 06.1995-03.2002 E 220 D (210.004) - 2155ccm, 95pk, 70kw - OM 604.912
    E-CLASS (W210) | 06.1995-03.2002 E 230 (210.037) - 2295ccm, 150pk, 110kw - M 111.970
    E-CLASS (W210) | 06.1995-03.2002 E 240 (210.061) - 2398ccm, 170pk, 125kw - M 112.911
    E-CLASS (W210) | 06.1995-03.2002 E 240 (210.062) - 2597ccm, 170pk, 125kw - M 112.914
    E-CLASS (W210) | 06.1995-03.2002 E 250 D (210.010) - 2497ccm, 113pk, 83kw - OM 605.912
    E-CLASS (W210) | 06.1995-03.2002 E 250 Turbo-D (210.015) - 2497ccm, 150pk, 110kw - OM 605.962
    E-CLASS (W210) | 06.1995-03.2002 E 290 Turbo-D (210.017) - 2874ccm, 129pk, 95kw - OM 602.982
    E-CLASS (W210) | 06.1995-03.2002 E 300 D (210.020) - 2996ccm, 136pk, 100kw - OM 606.912
    E-CLASS (W210) | 06.1995-03.2002 E 300 Turbo-D (210.025) - 2996ccm, 177pk, 130kw - OM 606.962
    E-CLASS T-Model
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 200 T (210.235) - 1998ccm, 136pk, 100kw - M 111.942
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 200 T Kompressor (210.245) - 1998ccm, 186pk, 137kw - M 111.947
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 200 T Kompressor (210.248) - 1998ccm, 163pk, 120kw - M 111.957
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 220 T CDI (210.206) - 2148ccm, 136pk, 100kw - OM 611.961
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 220 T CDI (210.206) - 2148ccm, 143pk, 105kw - OM 611.961
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 220 T CDI (210.206) - 2151ccm, 125pk, 92kw - OM 611.961
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 230 T (210.237) - 2295ccm, 150pk, 110kw - M 111.970
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 240 T (210.261) - 2398ccm, 170pk, 125kw - M 112.911
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 240 T (210.262) - 2597ccm, 170pk, 125kw - M 112.914
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 250 T D (210.210) - 2497ccm, 113pk, 83kw - OM 605.912
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 250 T Turbo-D (210.215) - 2497ccm, 150pk, 110kw - OM 605.962
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 290 T Turbo-D (210.217) - 2874ccm, 129pk, 95kw - OM 602.982
    E-CLASS T-Model (S210) | 06.1996-03.2003 E 300 T Turbo-D (210.225) - 2996ccm, 177pk, 130kw - OM 606.962
    SLK
    SLK (R170) | 09.1996-04.2004 200 (170.435) - 1998ccm, 136pk, 100kw - M 111.946
    SLK (R170) | 09.1996-04.2004 200 Kompressor (170.444) - 1998ccm, 163pk, 120kw - M 111.958
    SLK (R170) | 09.1996-04.2004 200 Kompressor (170.445) - 1998ccm, 192pk, 141kw - M 111.943
    SLK (R170) | 09.1996-04.2004 230 Kompressor (170.447) - 2295ccm, 193pk, 142kw - M 111.973
    SLK (R170) | 09.1996-04.2004 230 Kompressor (170.449) - 2295ccm, 197pk, 145kw - M 111.983
    SLK (R171) | 03.2004-12.2011 200 Kompressor (171.442) - 1796ccm, 163pk, 120kw - M 271.944

  • Original part numbers

    A210 421 241264 MERCEDES-BENZ
    A203 421 0312 MERCEDES-BENZ
    A210 421 2412 MERCEDES-BENZ
    210 421 0712 MERCEDES-BENZ
    210 421 2412 MERCEDES-BENZ
    203 421 0312 MERCEDES-BENZ
    210 421 241264 MERCEDES-BENZ
    A210 421 0712 MERCEDES-BENZ

  • Manufacturer

    Delphi

    Delphi has over 50 years of experience in OEM-supply, designing, developing and manufacturing a wide range of components for automotive manufacturers on a global basis.


    Present in more than 150 countries and a global network of more than 2,750 service centers, Delphi Technologies provides aftermarket end-to-end solutions with OEM-specifications, from parts to advanced software solutions.


    With a broad portfolio of gasoline fuel systems, diesel fuel systems, maintenance solutions, engine management and vehicle electronics, supported by OEM-level diagnostic and testing equipment, training and technical information, Delphi Technologies enables you to service and repair vehicles at the right time .

  • Delivery time

    Expected delivery date:

    07-12-2024

  • Questions?

    • 1285994. Brake Disc

    • In order to help you with your request, we require extra information about your vehicle. We would like to know: brand / model / type, year of manufacture, coach work, fuel, automatic transmission or manual, number of doors, VIN.

  • Manual

Secure payment
