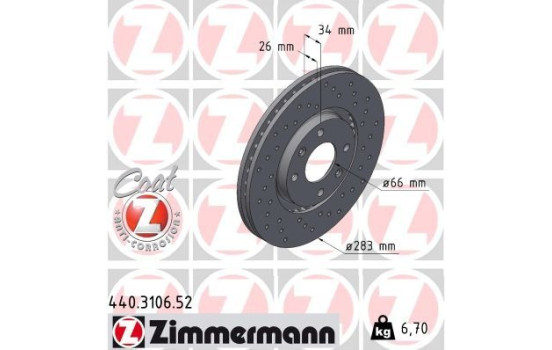

Brake Disc SPORT BRAKE DISC COAT Z 440.3106.52 Zimmermann

Video

Product number: 0846906

Manufacturer number: 440.3106.52

EAN: 4250238747147

€ 80,⁰⁵

Incl. VAT

View product specifications

In stock

Delivery 07-01-2025

Quantity:

Secure payment

Free 30 days exchanges
Any part, any car
Fast delivery
Expert support

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or Manually select.

Specifications

Give your brake system an upgrade with the Zimmerman Sport Z brake discs.

These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.

Grooved design:

Perforated for better removal of gases
Rust-resistant coating

Key benefits:

German quality
Less? Brake fading?
Better braking performance
Perfect fit

Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

Outer diameter [mm]	283
Rim Hole Number	4
Brake Disc Type	Perforated
Surface	Coated
Brake pads	Exclusive
Bolt Hole Circle Ø [mm]	108
Brake Disc Type	Ventilated outside
Centering Diameter [mm]	66
Hole Arrangement / Number	6/4
Wheel Hub Diameter [mm]	82
Inspection Tag	ECE R90 APPROVED
Warranty	2 years
Height [mm]	34
Brake disc thickness (mm)	26
Minimum thickness (mm)	24
Weight [kg]	6,7

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.S.	17338	€ 40,58
AP	24788
AP	X 24788
AP	24869 X
AP	24788 X
AP	24869
AP	24869 V
AP	X 24869
AP	24788 V
ASAM	71261
ASHIKA	60-00-0601
ASHIKA	60-00-0601C
BELACO	BDS1001
BLUE PRINT	ADP154301	€ 31,67
BORG & BECK	BBD4246
BOSCH	0 986 479 W69
BOSCH	0 986 478 979	€ 43,18
BOSCH	0 986 479 E67	€ 46,02
BRECO	BS 8415
BRECO	BV 8415
BRECO	BS 8535
BRECO	BV 8535
BREMBO	09.8760.75	€ 67,51
BREMBO	09.8760.1X	€ 94,13
BREMBO	09.8760.10
BREMBO	09.9619.11	€ 47,21
BREMBO	09.9619.1X	€ 98,43
BREMBO	09.9619.10	€ 45,30
BREMBO	09.9619.75	€ 63,98
BREMBO	09.8760.11	€ 47,47
BREMSI	CD7152V
CHAMPION	562129CH
DON	PCD10112
Dr!ve+	DP1010.11.0850
EUROBRAKE	5815201927
EUROBRAKE	5815311927
FAST	FT31112
FEBI BILSTEIN	21121	€ 34,43
FERODO	DDF1152	€ 44,74
FERODO	DDF1152C	€ 75,88

Manufacturer	Manufacturer number	Price
FI.BA	FBD154
FREMAX	BD-4752
HELLA	8DD 355 108-371
HELLA PAGID	8DD 355 108-371
HERTH+BUSS JAKOPARTS	J3300813
JAPANPARTS	DI0601JM
JAPANPARTS	DI-0601C
JAPANPARTS	DI-0601
JAPKO	600601
JAPKO	600601C
JURATEK	CIT111
JURID	562129JC
KEY PARTS	KBD4246
MAGNETI MARELLI	361302040696
MAGNETI MARELLI	361302040172
MASTER-SPORT	24012601201-PCS-MSP
MASTER-SPORT	24012601201PR-SET-MSP
MASTER-SPORT	24012601201-SET-MSP
MASTER-SPORT	24012601201-SET-MS
MASTER-SPORT	24012601201-PCS-MS
MASTER-SPORT	24012601201PR-SET-MS
MAXTECH	875620
MEYLE	11-15 521 0018	€ 40,34
MEYLE	11-83 521 0018/PD	€ 47,13
MINTEX	MDC1492
MINTEX	MDC1492C
NK	311927
NK	201927
OPEN PARTS	BDA1955.20
OPEN PARTS	BDR1955.20
QUARO	QD2012
QUARO	QD2012HC
RAICAM	RD00115
SWAG	62 92 1121
TEXTAR	92111603	€ 55,49
TEXTAR	92111600
VAICO	V42-80015
VALEO	186693
ZIMMERMANN	440.3106.20	€ 47,46
ZIMMERMANN	440.3106.52	(this product)

Applicability

CITROEN

	BERLINGO /
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 1.1 i (MAHDZ, MBHDZ, MBHFX) - 1124ccm, 60pk, 44kw - HDZ (TU1M), HFX (TU1JP)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 1.4 bivalent - 1360ccm, 65pk, 48kw - KFW (TU3JP)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 1.4 i (MBKFX, MBKFW) - 1360ccm, 75pk, 55kw - KFX (TU3JP), KFW (TU3JP), KFW (TU3A)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 1.4 i bivalent (MBKFW) - 1360ccm, 75pk, 55kw - KFW (TU3JP)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 1.6 16V (MBNFU) - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 1.8 i - 1761ccm, 90pk, 66kw - LFX (XU7JB)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 1.9 D (MBDJY) - 1905ccm, 70pk, 51kw - D9B (XUD9)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 1.9 D 70 (MBWJZ, MCWJZ) - 1868ccm, 69pk, 51kw - WJY (DW8B), WJZ (DW8)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 1.9 D 70 4WD (MBWJZ, MCWJZ) - 1868ccm, 69pk, 51kw - WJY (DW8B), WJZ (DW8)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 2.0 HDI 90 (MBRHY, MCRHY) - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 2.0 HDI 90 4WD (MBRHY, MCRHY) - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	BERLINGO / BERLINGO FIRST Box Body/MPV (M_) \| 07.1996-12.2011 Electric - 0ccm, 57pk, 42kw - 200-175
	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) \| 07.1996-12.2011 1.4 i (MFKFX, MFKFW, GJKFWB, GJKFWC, GFKFWC) - 1360ccm, 75pk, 55kw - KFX (TU3JP), KFW (TU3JP), KFW (TU3A)
	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) \| 07.1996-12.2011 1.4 i bivalent (MFKFW) - 1360ccm, 75pk, 55kw - KFW (TU3JP)
	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) \| 07.1996-12.2011 1.6 16V (MFNFU) - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) \| 07.1996-12.2011 1.6 HDI 75 (MF9HW, GJ9HWC, GF9HWC, GN9HWC) - 1560ccm, 75pk, 55kw - 9HW (DV6BTED4), DV6B
	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) \| 07.1996-12.2011 1.6 HDI 90 (MF9HX) - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4)
	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) \| 07.1996-12.2011 1.9 D (MFDJY) - 1905ccm, 68pk, 50kw - DJY (XUD9A), D9B (XUD9A/L)
	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) \| 07.1996-12.2011 1.9 D (MFWJZ) - 1868ccm, 70pk, 51kw - WJY (DW8B), WJZ (DW8)
	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) \| 07.1996-12.2011 1.9 D 4WD (MFWJZ) - 1868ccm, 69pk, 51kw - WJY (DW8B), WJZ (DW8)
	BERLINGO / BERLINGO FIRST MPV (MF_, GJK_, GFK_) \| 07.1996-12.2011 2.0 HDI 90 (MFRHY) - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	BERLINGO Box
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 - 1587ccm, 90pk, 66kw - NFR (TU5JP4B)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 BlueHDi 100 - 1560ccm, 99pk, 73kw - BHY (DV6FD)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 HDi / BlueHDi 75 - 1560ccm, 75pk, 55kw - BHW (DV6FE), 9HN (DV6ETED)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C), 9HL (DV6C)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 HDi 110 - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 HDi 115 - 1560ccm, 114pk, 84kw - 9HL (DV6C)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 HDi 75 - 1560ccm, 75pk, 55kw - 9HT (DV6BTED4), 9HT (DV6BUTED4)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 HDi 90 - 1560ccm, 90pk, 66kw - 9HF (DV6DTED)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 HDi 90 - 1560ccm, 92pk, 68kw - 9HP (DV6DTED), 9HJ (DV6DTEDM)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 HDi 90 16V - 1560ccm, 90pk, 66kw - 9HS (DV6TED4BU), 9HX (DV6AUTED4)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 1.6 VTi 95 - 1598ccm, 98pk, 72kw - 5FK (EP6CB)
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 Electric - ccm, 67pk, 49kw - Y4F1
	BERLINGO Box Body/MPV (B9) \| 04.2008-12.2017 Electric - 0ccm, 48pk, 35kw - Y4F1
	BERLINGO MULTISPACE
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.2 PureTech 110 - 1199ccm, 110pk, 81kw - HNZ (EB2DT)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 - 1587ccm, 90pk, 66kw - NFR (TU5JP4B)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 BlueHDi 100 - 1560ccm, 99pk, 73kw - BHY (DV6FD)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C), 9HL (DV6C)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 HDi 110 - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 HDi 115 - 1560ccm, 114pk, 84kw - 9HR (DV6C)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 HDi 75 / BlueHDi 75 - 1560ccm, 75pk, 55kw - BHW (DV6FE), 9HN (DV6ETED)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 HDi 75 16V - 1560ccm, 75pk, 55kw - 9HT (DV6BTED4)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 HDi 90 - 1560ccm, 92pk, 68kw - 9HP (DV6DTED), 9HJ (DV6DTEDM)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 HDi 90 - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4B)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	BERLINGO MULTISPACE (B9) \| 04.2008-12.2014 1.6 VTi 95 - 1598ccm, 98pk, 72kw - 5FK (EP6CB)
	BERLINGO Platform/Chassis
	BERLINGO Platform/Chassis (B9) \| 04.2008-12.2017 1.6 HDi 90 16V - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4)
	C3 AIRCROSS
	C3 AIRCROSS II (2R_, 2C_) \| 06.2017-08.2018 1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ) - 1199ccm, 110pk, 81kw - HNZ (EB2DT), HNV (EB2DTM), HNP (EB2ADT)
	C3 AIRCROSS II (2R_, 2C_) \| 06.2017-08.2018 1.2 PureTech 130 (2RHNYH) - 1199ccm, 131pk, 96kw - HNY (EB2DTS), HNS (EB2ADTS)
	C3 AIRCROSS II (2R_, 2C_) \| 06.2017-08.2018 1.2 PureTech 82 (2RHMRC, 2RHMZB) - 1199ccm, 82pk, 60kw - HMZ (EB2F), HMR (EB2FA)
	C3 AIRCROSS II (2R_, 2C_) \| 06.2017-08.2018 1.5 BlueHDi 100 (2CYHYJ) - 1499ccm, 102pk, 75kw - YHY (DV5RD)
	C3 AIRCROSS II (2R_, 2C_) \| 06.2017-08.2018 1.5 BlueHDi 120 (2CYHXX) - 1499ccm, 120pk, 88kw - YHX (DV5RC)
	C3 AIRCROSS II (2R_, 2C_) \| 06.2017-08.2018 1.6 BlueHDi 100 (2CBHYB) - 1560ccm, 99pk, 73kw - BHY (DV6FD)
	C3 AIRCROSS II (2R_, 2C_) \| 06.2017-08.2018 1.6 BlueHDi 115 (2CBHXH) - 1560ccm, 115pk, 85kw - BHX (DV6FC)
	C3 AIRCROSS II (2R_, 2C_) \| 06.2017-08.2018 1.6 BlueHDi 120 (2CBHZH) - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	C3 I
	C3 I (FC_, FN_) \| 02.2002-02.2011 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	C3 I (FC_, FN_) \| 02.2002-02.2011 1.6 16V HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4)
	C3 I (FC_, FN_) \| 02.2002-02.2011 1.6 16V HDi - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	C3 II
	C3 II (SC_) \| 09.2009-09.2016 1.6 BlueHDi 100 - 1560ccm, 99pk, 73kw - BHY (DV6FD)
	C3 II (SC_) \| 09.2009-09.2016 1.6 HDi - 1560ccm, 92pk, 68kw - 9HP (DV6DTED), 9HJ (DV6DTEDM)
	C3 II (SC_) \| 09.2009-09.2016 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	C3 II (SC_) \| 09.2009-09.2016 1.6 HDi 115 - 1560ccm, 114pk, 84kw - 9HD (DV6C)
	C3 II (SC_) \| 09.2009-09.2016 1.6 HDi 90 - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4)
	C3 II (SC_) \| 09.2009-09.2016 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	C3 PICASSO
	C3 PICASSO (SH_) \| 12.2008-08.2017 1.6 HDi - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	C3 PICASSO (SH_) \| 12.2008-08.2017 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	C3 PICASSO (SH_) \| 12.2008-08.2017 1.6 HDi 115 - 1560ccm, 114pk, 84kw - 9HD (DV6C)
	C3 PICASSO (SH_) \| 12.2008-08.2017 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FS (EP6C), 5FW (EP6)
	C4 Coupe
	C4 Coupe (LA_) \| 11.2004-07.2011 1.4 16V - 1360ccm, 88pk, 65kw - KFU (ET3J4)
	C4 Coupe (LA_) \| 11.2004-07.2011 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	C4 Coupe (LA_) \| 11.2004-07.2011 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4B), 9HV (DV6TED4BU)
	C4 Coupe (LA_) \| 11.2004-07.2011 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	C4 Coupe (LA_) \| 11.2004-07.2011 1.6 THP 150 - 1598ccm, 150pk, 110kw - 5FX (EP6DT)
	C4 Coupe (LA_) \| 11.2004-07.2011 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FW (EP6)
	C4 Coupe (LA_) \| 11.2004-07.2011 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4)
	C4 GRAND
	C4 GRAND PICASSO I (UA_) \| 10.2006-12.2013 1.6 16V - 1598ccm, 140pk, 103kw - 5FT (EP6DT)
	C4 GRAND PICASSO I (UA_) \| 10.2006-12.2013 1.6 16V - 1598ccm, 150pk, 110kw - 5FX (EP6DT)
	C4 GRAND PICASSO I (UA_) \| 10.2006-12.2013 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	C4 GRAND PICASSO I (UA_) \| 10.2006-12.2013 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	C4 GRAND PICASSO I (UA_) \| 10.2006-12.2013 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FS (EP6C), 5FW (EP6)
	C4 GRAND PICASSO I (UA_) \| 10.2006-12.2013 1.8 i 16V - 1749ccm, 125pk, 92kw - 6FY (EW7A)
	C4 I
	C4 I (LC_) \| 11.2004-07.2011 1.4 16V - 1360ccm, 88pk, 65kw - KFU (ET3J4)
	C4 I (LC_) \| 11.2004-07.2011 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	C4 I (LC_) \| 11.2004-07.2011 1.6 16V Bio-Flex - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	C4 I (LC_) \| 11.2004-07.2011 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4B), 9HV (DV6TED4BU)
	C4 I (LC_) \| 11.2004-07.2011 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	C4 I (LC_) \| 11.2004-07.2011 1.6 THP 140 - 1598ccm, 140pk, 103kw - 5FT (EP6DT)
	C4 I (LC_) \| 11.2004-07.2011 1.6 THP 150 - 1598ccm, 150pk, 110kw - 5FX (EP6DT)
	C4 I (LC_) \| 11.2004-07.2011 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FW (EP6)
	C4 I (LC_) \| 11.2004-07.2011 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A)
	C4 I (LC_) \| 11.2004-07.2011 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4)
	C4 I Saloon \| 07.2006-07.2011 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	C4 I Saloon \| 07.2006-07.2011 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	C4 II
	C4 II (NC_) \| 11.2009-05.2018 1.2 THP 130 (NCHNYM, NCHNYT) - 1199ccm, 130pk, 96kw - HNY (EB2DTS)
	C4 II (NC_) \| 11.2009-05.2018 1.6 BlueHDi 115 - 1560ccm, 115pk, 85kw - BHX (DV6FC)
	C4 II (NC_) \| 11.2009-05.2018 1.6 HDi 115 - 1560ccm, 114pk, 84kw - 9HD (DV6C)
	C4 II (NC_) \| 11.2009-05.2018 1.6 HDi 90 - 1560ccm, 92pk, 68kw - 9HP (DV6DTED), 9HJ (DV6DTEDM)
	C4 II (NC_) \| 11.2009-05.2018 1.6 VTi 120 (NC5FS0, NC5FS9) - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	C4 II (NC_) \| 11.2009-05.2018 1.6 VTi 120 LPG (NC5FS0) - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	C4 PICASSO
	C4 PICASSO I MPV (UD_) \| 10.2006-08.2013 1.6 16V - 1598ccm, 150pk, 110kw - 5FX (EP6DT)
	C4 PICASSO I MPV (UD_) \| 10.2006-08.2013 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	C4 PICASSO I MPV (UD_) \| 10.2006-08.2013 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	C4 PICASSO I MPV (UD_) \| 10.2006-08.2013 1.6 THP 140 - 1598ccm, 140pk, 103kw - 5FT (EP6DT)
	C4 PICASSO I MPV (UD_) \| 10.2006-08.2013 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FW (EP6)
	C4 PICASSO I MPV (UD_) \| 10.2006-08.2013 1.8 i 16V - 1749ccm, 125pk, 92kw - 6FY (EW7A)
	C4 X
	C4 X (BD_, BE_, BF_) \| 09.2022-??? 1.2 Hybrid 136 (BDHPYJ) - 1199ccm, 136pk, 100kw - HPY (EB2LTDH2)
	C4 X (BD_, BE_, BF_) \| 09.2022-??? 1.2 PureTech 100 (BDHNEA) - 1199ccm, 101pk, 74kw - HNE (EB2ADTD)
	C4 X (BD_, BE_, BF_) \| 09.2022-??? 1.2 PureTech 130 (BDHNSB) - 1199ccm, 131pk, 96kw - HNS (EB2ADTS)
	C4 X (BD_, BE_, BF_) \| 09.2022-??? 1.5 BlueHDi 130 (BEYHZB) - 1499ccm, 131pk, 96kw - YHZ (DV5RC)
	C4 X (BD_, BE_, BF_) \| 09.2022-??? ë-C4 X - 0ccm, 156pk, 115kw - ZKW (ZK02)
	C4 X (BD_, BE_, BF_) \| 09.2022-??? ë-C4 X (BFZKXC) - 0ccm, 136pk, 100kw - ZKX (ZK01)
	C5 I
	C5 I (DC_) \| 03.2001-08.2004 2.0 16V (DCRFNC, DCRFNF) - 1997ccm, 136pk, 100kw - RFN (EW10J4)
	C5 I (DC_) \| 03.2001-08.2004 2.0 16V HPi (DCRLZB) - 1997ccm, 140pk, 103kw - RLZ (EW10D)
	C5 I (DC_) \| 03.2001-08.2004 2.0 HDi - 1997ccm, 107pk, 79kw - RHZ (DW10ATED), RHS (DW10ATED)
	C5 I (DC_) \| 03.2001-08.2004 2.0 HDi (DCRHYB) - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	C5 I (DC_) \| 03.2001-08.2004 2.0 HDi (DCRHZB, DCRHZE) - 1997ccm, 109pk, 80kw - RHZ (DW10ATED)
	C5 I Estate (DE_) \| 06.2001-08.2004 1.8 16V (DE6FZB, DE6FZE) - 1749ccm, 115pk, 85kw - 6FZ (EW7J4)
	C5 I Estate (DE_) \| 06.2001-08.2004 2.0 16V (DERFNF, DERFNC, RERFNC) - 1997ccm, 136pk, 100kw - RFN (EW10J4)
	C5 I Estate (DE_) \| 06.2001-08.2004 2.0 16V HPi (DERLZB) - 1997ccm, 140pk, 103kw - RLZ (EW10D)
	C5 I Estate (DE_) \| 06.2001-08.2004 2.0 HDi (DERHSB, DERHSE) - 1997ccm, 107pk, 79kw - RHS (DW10ATED)
	C5 I Estate (DE_) \| 06.2001-08.2004 2.0 HDi (DERHZB, DERHZE) - 1997ccm, 109pk, 80kw - RHZ (DW10ATED)
	C5 II
	C5 II (RC_) \| 09.2004-09.2008 1.6 HDi (RC8HZB) - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	C5 II (RC_) \| 09.2004-09.2008 2.0 16V (RCRFJB, RCRFJC) - 1997ccm, 140pk, 103kw - RFJ (EW10A)
	C5 II (RC_) \| 09.2004-09.2008 2.0 HDi (RCRHRH) - 1997ccm, 136pk, 100kw - RHR (DW10BTED4)
	C5 II Break (RE_) \| 09.2004-08.2008 1.8 16V (RE6FZB) - 1749ccm, 116pk, 85kw - 6FZ (EW7J4)
	C5 II Break (RE_) \| 09.2004-08.2008 2.0 16V (RERFJB, RERFJC) - 1997ccm, 140pk, 103kw - RFJ (EW10A)
	DS3
	DS3 (SA_) \| 11.2009-07.2015 1.2 THP 110 - 1199ccm, 110pk, 81kw - HNZ (EB2DT)
	DS3 (SA_) \| 11.2009-07.2015 1.2 VTi 82 - 1199ccm, 82pk, 60kw - HMZ (EB2F), HMZ (EB2)
	DS3 (SA_) \| 11.2009-07.2015 1.4 HDi 70 (SA8HP4) - 1398ccm, 68pk, 50kw - 8HP (DV4C), 8HR (DV4C)
	DS3 (SA_) \| 11.2009-07.2015 1.4 VTi 95 - 1397ccm, 95pk, 70kw - 8FP (EP3C)
	DS3 (SA_) \| 11.2009-07.2015 1.4 VTi 95 LPG - 1397ccm, 95pk, 70kw - 8FR (EP3C)
	DS3 (SA_) \| 11.2009-07.2015 1.4 VTi 98 - 1397ccm, 98pk, 72kw - 8FR (EP3C)
	DS3 (SA_) \| 11.2009-07.2015 1.6 BlueHDi 100 - 1560ccm, 99pk, 73kw - BHY (DV6FD)
	DS3 (SA_) \| 11.2009-07.2015 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	DS3 (SA_) \| 11.2009-07.2015 1.6 BlueHDi 75 - 1560ccm, 75pk, 55kw - BHW (DV6FE)
	DS3 (SA_) \| 11.2009-07.2015 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	DS3 (SA_) \| 11.2009-07.2015 1.6 HDi 115 - 1560ccm, 114pk, 84kw - 9HD (DV6C)
	DS3 (SA_) \| 11.2009-07.2015 1.6 HDi 115 - 1560ccm, 115pk, 85kw - BHX (DV6FC)
	DS3 (SA_) \| 11.2009-07.2015 1.6 HDi 90 - 1560ccm, 92pk, 68kw - 9HP (DV6DTED)
	DS3 (SA_) \| 11.2009-07.2015 1.6 Racing - 1598ccm, 207pk, 152kw - 5FD (EP6DTS)
	DS3 (SA_) \| 11.2009-07.2015 1.6 Racing - 1598ccm, 203pk, 149kw - 5FF (EP6DTS)
	DS3 (SA_) \| 11.2009-07.2015 1.6 THP 150 - 1598ccm, 150pk, 110kw - 5FN (EP6CDT), 5FX (EP6DT)
	DS3 (SA_) \| 11.2009-07.2015 1.6 THP 155 - 1598ccm, 156pk, 115kw - 5FV (EP6CDT), 5FR (EP6DT)
	DS3 (SA_) \| 11.2009-07.2015 1.6 THP 165 - 1598ccm, 165pk, 121kw - 5GZ (EP6FDT)
	DS3 (SA_) \| 11.2009-07.2015 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	DS3 Convertible
	DS3 Convertible \| 01.2013-07.2015 1.2 THP 110 - 1199ccm, 110pk, 81kw - HNZ (EB2DT)
	DS3 Convertible \| 01.2013-07.2015 1.2 VTi 82 - 1199ccm, 82pk, 60kw - HMZ (EB2F)
	DS3 Convertible \| 01.2013-07.2015 1.6 BlueHDi 100 - 1560ccm, 99pk, 73kw - BHY (DV6FD)
	DS3 Convertible \| 01.2013-07.2015 1.6 BlueHDi 115 - 1560ccm, 115pk, 85kw - BHX (DV6FC)
	DS3 Convertible \| 01.2013-07.2015 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	DS3 Convertible \| 01.2013-07.2015 1.6 HDi 90 - 1560ccm, 92pk, 68kw - 9HP (DV6DTED)
	DS3 Convertible \| 01.2013-07.2015 1.6 Racing - 1598ccm, 207pk, 152kw - 5FD (EP6DTS)
	DS3 Convertible \| 01.2013-07.2015 1.6 THP 150 - 1598ccm, 150pk, 110kw - 5FN (EP6CDT)
	DS3 Convertible \| 01.2013-07.2015 1.6 THP 155 - 1598ccm, 156pk, 115kw - 5FV (EP6CDT)
	DS3 Convertible \| 01.2013-07.2015 1.6 THP 165 - 1598ccm, 165pk, 121kw - 5GZ (EP6FDT)
	DS3 Convertible \| 01.2013-07.2015 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	DS4
	DS4 (NX_) \| 04.2011-07.2015 1.2 THP 130 - 1199ccm, 130pk, 96kw - HNY (EB2DTS)
	DS4 (NX_) \| 04.2011-07.2015 1.6 BlueHDi 115 - 1560ccm, 115pk, 85kw - BHX (DV6FC)
	DS4 (NX_) \| 04.2011-07.2015 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	DS4 (NX_) \| 04.2011-07.2015 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	DS4 (NX_) \| 04.2011-07.2015 1.6 HDi 115 - 1560ccm, 114pk, 84kw - 9HD (DV6C)
	DS4 (NX_) \| 04.2011-07.2015 1.6 HDi 90 - 1560ccm, 92pk, 68kw - 9HP (DV6DTED)
	DS4 (NX_) \| 04.2011-07.2015 1.6 VTi 120 - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	DS5
	DS5 \| 11.2011-07.2015 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	DS5 \| 11.2011-07.2015 1.6 HDi - 1560ccm, 115pk, 85kw - BHX (DV6FC)
	XSARA PICASSO
	XSARA PICASSO (N68) \| 12.1999-06.2012 1.6 - 1587ccm, 95pk, 70kw - NFV (TU5JP)
	XSARA PICASSO (N68) \| 12.1999-06.2012 1.6 - 1587ccm, 88pk, 65kw - NFZ (TU5JP)
	XSARA PICASSO (N68) \| 12.1999-06.2012 1.6 - 1587ccm, 91pk, 67kw - NFZ (TU5JP)
	XSARA PICASSO (N68) \| 12.1999-06.2012 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	XSARA PICASSO (N68) \| 12.1999-06.2012 1.6 Chrono - 1587ccm, 101pk, 74kw - NFV (TU5JP)
	XSARA PICASSO (N68) \| 12.1999-06.2012 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4)
	XSARA PICASSO (N68) \| 12.1999-06.2012 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	XSARA PICASSO (N68) \| 12.1999-06.2012 1.8 16V - 1749ccm, 115pk, 85kw - 6FZ (EW7J4)
	XSARA PICASSO (N68) \| 12.1999-06.2012 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4)
	XSARA PICASSO (N68) \| 12.1999-06.2012 2.0 HDi - 1997ccm, 90pk, 66kw - RHY (DW10TD)

	DS 3
	DS 3 (SA_) \| 04.2015-07.2019 1.2 THP 110 / PureTech 110 (SAHNPS, SAHNZ6, SAHNZT) - 1199ccm, 110pk, 81kw - HNZ (EB2DT), HNP (EB2ADT)
	DS 3 (SA_) \| 04.2015-07.2019 1.2 THP 130 (SAHNYM) - 1199ccm, 130pk, 96kw - HNY (EB2DTS)
	DS 3 (SA_) \| 04.2015-07.2019 1.2 VTi 82 (SAHMZ6) - 1199ccm, 82pk, 60kw - HMZ (EB2F), HMZ (EB2)
	DS 3 (SA_) \| 04.2015-07.2019 1.6 BlueHDi 100 (SABHY0, SABHYT) - 1560ccm, 99pk, 73kw - BHY (DV6FD)
	DS 3 (SA_) \| 04.2015-07.2019 1.6 BlueHDi 120 (SABHZM) - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	DS 3 (SA_) \| 04.2015-07.2019 1.6 BlueHDi 75 (SABHW6) - 1560ccm, 75pk, 55kw - BHW (DV6FE)
	DS 3 (SA_) \| 04.2015-07.2019 1.6 THP 165 (SA5GZM) - 1598ccm, 165pk, 121kw - 5GZ (EP6FDT)
	DS 3 (SA_) \| 04.2015-07.2019 1.6 THP 208 (SA5GRM) - 1598ccm, 208pk, 153kw - 5GR (EP6FDTX)
	DS 3 Convertible (SB_) \| 07.2015-07.2019 1.2 THP 110 - 1199ccm, 110pk, 81kw - HNZ (EB2DT), HNP (EB2ADT)
	DS 3 Convertible (SB_) \| 07.2015-07.2019 1.2 THP 130 - 1199ccm, 130pk, 96kw - HNY (EB2DTS)
	DS 3 Convertible (SB_) \| 07.2015-07.2019 1.2 VTi 82 - 1199ccm, 82pk, 60kw - HMZ (EB2F)
	DS 3 Convertible (SB_) \| 07.2015-07.2019 1.6 BlueHDi 100 - 1560ccm, 99pk, 73kw - BHY (DV6FD)
	DS 3 Convertible (SB_) \| 07.2015-07.2019 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	DS 3 Convertible (SB_) \| 07.2015-07.2019 1.6 THP 165 - 1598ccm, 165pk, 121kw - 5GZ (EP6FDT)
	DS 3 Convertible (SB_) \| 07.2015-07.2019 1.6 THP 208 - 1598ccm, 208pk, 153kw - 5GR (EP6FDTX)
	DS 4
	DS 4 / DS 4 CROSSBACK (NX_) \| 07.2015-12.2018 1.2 THP 130 (NXHNYM) - 1199ccm, 130pk, 96kw - HNY (EB2DTS)
	DS 4 / DS 4 CROSSBACK (NX_) \| 07.2015-12.2018 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)

OPEL

	CORSA F
	CORSA F (P2JO) \| 07.2019-??? 1.2 (68) - 1199ccm, 75pk, 55kw - F 12 XEL (EB2FAD), HMU (EB2FAMD)
	CORSA F (P2JO) \| 07.2019-??? 1.2 (68) - 1199ccm, 101pk, 74kw - F 12 XHL (EB2ADTD)
	CORSA F (P2JO) \| 07.2019-??? 1.2 (68) - 1199ccm, 131pk, 96kw - F 12 XHT (EB2ADTS), HNL (EB2ADTSM)
	CORSA F (P2JO) \| 07.2019-??? 1.5 (68) - 1499ccm, 102pk, 75kw - D 15 DT (DV5RD), YHY (DV5RCF)
	CROSSLAND X
	CROSSLAND X / CROSSLAND (P17, P2QO) \| 03.2017-05.2018 1.2 - 1199ccm, 83pk, 61kw - F 12 XE (EB2FA)
	CROSSLAND X / CROSSLAND (P17, P2QO) \| 03.2017-05.2018 1.2 (75) - 1199ccm, 82pk, 60kw - B 12 XE (EB2F), D 12 XE (EB2FA)
	CROSSLAND X / CROSSLAND (P17, P2QO) \| 03.2017-05.2018 1.2 (75) - 1199ccm, 110pk, 81kw - B 12 XHL (EB2DT), D 12 XHL (EB2ADT), F 12 XHL (EB2ADT)
	CROSSLAND X / CROSSLAND (P17, P2QO) \| 03.2017-05.2018 1.2 (75) - 1199ccm, 131pk, 96kw - B 12 XHT (EB2DTS), D 12 XHT (EB2ADTS), F 12 XHT (EB2ADTS)
	CROSSLAND X / CROSSLAND (P17, P2QO) \| 03.2017-05.2018 1.2 LPG (75) - 1199ccm, 82pk, 60kw - B 12 XE (EB2F)
	CROSSLAND X / CROSSLAND (P17, P2QO) \| 03.2017-05.2018 1.5 Turbo D (75) - 1499ccm, 102pk, 75kw - D 15 DT (DV5RD)
	CROSSLAND X / CROSSLAND (P17, P2QO) \| 03.2017-05.2018 1.5 Turbo D (75) - 1499ccm, 120pk, 88kw - D 15 DTH (DV5RC), F 15 DTH (DV5RC)
	CROSSLAND X / CROSSLAND (P17, P2QO) \| 03.2017-05.2018 1.6 Turbo D (75) - 1560ccm, 99pk, 73kw - B 16 DT (DV6FD)
	CROSSLAND X / CROSSLAND (P17, P2QO) \| 03.2017-05.2018 1.6 Turbo D (75) - 1560ccm, 120pk, 88kw - B 16 DTH (DV6FC)
	MOKKA
	MOKKA \| 06.2020-??? 1.2 (76) - 1199ccm, 101pk, 74kw - F 12 XHL (EB2ADTD)
	MOKKA \| 06.2020-??? 1.5 (76) - 1499ccm, 110pk, 81kw - F 15 DT (DV5RCE)
	MOKKA \| 06.2020-??? MOKKA-e - 0ccm, 156pk, 115kw - ZKW (ZK02)
	MOKKA \| 06.2020-??? MOKKA-e (76) - ccm, 136pk, 100kw - ZKX (ZK01)

PEUGEOT

	1007
	1007 (KM_) \| 04.2005-??? 1.6 HDi - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	2008 I
	2008 I (CU_) \| 03.2013-12.2019 1.2 PureTech 82 - 1199ccm, 82pk, 61kw - HMR (EB2FA)
	2008 I (CU_) \| 03.2013-12.2019 1.2 THP 110 / PureTech 110 - 1199ccm, 110pk, 81kw - HNZ (EB2DT), HNV (EB2DTM), HNP (EB2ADT)
	2008 I (CU_) \| 03.2013-12.2019 1.2 THP 130 / PureTech 130 - 1199ccm, 130pk, 96kw - HNY (EB2DTS), HNS (EB2ADTS)
	2008 I (CU_) \| 03.2013-12.2019 1.2 VTi - 1199ccm, 82pk, 60kw - HMZ (EB2F), HMZ (EB2)
	2008 I (CU_) \| 03.2013-12.2019 1.4 HDi - 1398ccm, 68pk, 50kw - 8HR (DV4C)
	2008 I (CU_) \| 03.2013-12.2019 1.5 BlueHDI 100 - 1499ccm, 102pk, 75kw - YHY (DV5RD)
	2008 I (CU_) \| 03.2013-12.2019 1.6 BlueHDi - 1560ccm, 116pk, 85kw - BHX (DV6FC)
	2008 I (CU_) \| 03.2013-12.2019 1.6 BlueHDi 100 - 1560ccm, 100pk, 73kw - BHY (DV6FD)
	2008 I (CU_) \| 03.2013-12.2019 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	2008 I (CU_) \| 03.2013-12.2019 1.6 BlueHDi 75 - 1560ccm, 75pk, 55kw - BHW (DV6FE)
	2008 I (CU_) \| 03.2013-12.2019 1.6 HDi - 1560ccm, 114pk, 84kw - 9HD (DV6C)
	2008 I (CU_) \| 03.2013-12.2019 1.6 HDi - 1560ccm, 92pk, 68kw - 9HP (DV6DTED)
	2008 I (CU_) \| 03.2013-12.2019 1.6 VTi - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	2008 II
	2008 II (UD_, US_, UY_, UJ_, UR_, UC_) \| 08.2019-??? 1.2 PureTech 100 (USHNK) - 1199ccm, 101pk, 74kw - HNK (EB2ADTD)
	2008 II (UD_, US_, UY_, UJ_, UR_, UC_) \| 08.2019-??? 1.2 PureTech 130 (USHNS, URHNS) - 1199ccm, 130pk, 96kw - HNS (EB2ADTS)
	2008 II (UD_, US_, UY_, UJ_, UR_, UC_) \| 08.2019-??? 1.2 THP / PureTech 155 (USHNNS, URHNNS, UXHNJP, URHNJP,... - 1199ccm, 155pk, 114kw - HNN (EB2ADTX), HNJ (EB2ADTXM), HNR (EB2ADTXM)
	2008 II (UD_, US_, UY_, UJ_, UR_, UC_) \| 08.2019-??? 1.5 BlueHDI 100 - 1499ccm, 102pk, 75kw - YHY (DV5RD)
	2008 II (UD_, US_, UY_, UJ_, UR_, UC_) \| 08.2019-??? 1.5 BlueHDI 130 - 1499ccm, 131pk, 96kw - YHZ (DV5RC)
	2008 II (UD_, US_, UY_, UJ_, UR_, UC_) \| 08.2019-??? e-2008 (UKZKXZ) - ccm, 136pk, 100kw - ZKX (ZK01)
	206 Hatchback
	206 Hatchback (2A/C) \| 08.1998-12.2012 2.0 RC - 1997ccm, 177pk, 130kw - RFK (EW10J4S)
	207
	207 (WA_, WC_) \| 02.2006-12.2015 1.4 16V - 1397ccm, 98pk, 72kw - 8FR (EP3)
	207 (WA_, WC_) \| 02.2006-12.2015 1.4 16V - 1397ccm, 95pk, 70kw - 8FS (EP3), EP3, EP3C
	207 (WA_, WC_) \| 02.2006-12.2015 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	207 (WA_, WC_) \| 02.2006-12.2015 1.6 16V Turbo - 1598ccm, 156pk, 115kw - 5FR (EP6DT)
	207 (WA_, WC_) \| 02.2006-12.2015 1.6 16V Turbo - 1598ccm, 150pk, 110kw - 5FX (EP6DT)
	207 (WA_, WC_) \| 02.2006-12.2015 1.6 16V VTi - 1598ccm, 120pk, 88kw - 5FS (EP6C), 5FW (EP6), EP6
	207 (WA_, WC_) \| 02.2006-12.2015 1.6 HDi - 1560ccm, 92pk, 68kw - 9HP (DV6DTED)
	207 (WA_, WC_) \| 02.2006-12.2015 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4), 9HV (DV6TED4B), 9HV (DV6TED4BU)
	207 (WA_, WC_) \| 02.2006-12.2015 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	207 (WA_, WC_) \| 02.2006-12.2015 1.6 HDi 110 - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	207 CC
	207 CC (WD_) \| 02.2007-01.2015 1.6 16V - 1598ccm, 120pk, 88kw - 5FS (EP6C), 5FW (EP6), EP6
	207 CC (WD_) \| 02.2007-01.2015 1.6 16V Turbo - 1598ccm, 156pk, 115kw - 5FV (EP6CDT), 5FR (EP6DT)
	207 CC (WD_) \| 02.2007-01.2015 1.6 16V Turbo - 1598ccm, 150pk, 110kw - 5FX (EP6DT)
	207 CC (WD_) \| 02.2007-01.2015 1.6 HDi - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	207 CC (WD_) \| 02.2007-01.2015 1.6 HDi - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	207 Hatchback
	207 Hatchback Van (WA_, WC_) \| 03.2007-03.2013 1.4 HDi - 1398ccm, 68pk, 50kw - 8HR (DV4C), 8HZ (DV4TD)
	207 Hatchback Van (WA_, WC_) \| 03.2007-03.2013 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4)
	207 SW
	207 SW (WK_) \| 02.2007-12.2013 1.4 16V - 1397ccm, 98pk, 72kw - 8FR (EP3C)
	207 SW (WK_) \| 02.2007-12.2013 1.4 16V - 1397ccm, 95pk, 70kw - 8FS (EP3), 8FP (EP3C)
	207 SW (WK_) \| 02.2007-12.2013 1.6 16V - 1598ccm, 120pk, 88kw - 5FS (EP6C), 5FW (EP6), EP6
	207 SW (WK_) \| 02.2007-12.2013 1.6 16V RC - 1598ccm, 174pk, 128kw - 5FY (EP6DTS)
	207 SW (WK_) \| 02.2007-12.2013 1.6 HDi - 1560ccm, 92pk, 68kw - 9HP (DV6DTED)
	207 SW (WK_) \| 02.2007-12.2013 1.6 HDi - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	207 SW (WK_) \| 02.2007-12.2013 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4), 9HV (DV6TED4B), 9HV (DV6TED4BU)
	207 SW (WK_) \| 02.2007-12.2013 1.6 HDi - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	208 II
	208 II (UB_, UP_, UW_, UJ_) \| 06.2019-??? 1.2 PureTech 100 - 1199ccm, 101pk, 74kw - HNK (EB2ADTD), HNK (EB2ADT), HNE (EB2ADTD_B)
	208 II (UB_, UP_, UW_, UJ_) \| 06.2019-??? 1.2 PureTech 130 - 1199ccm, 131pk, 96kw - HNY (EB2DTS), HNS (EB2ADTS)
	208 II (UB_, UP_, UW_, UJ_) \| 06.2019-??? 1.2 PureTech 75 - 1199ccm, 75pk, 55kw - HMH (EB2FAD), HMG (EB2FAMD)
	208 II (UB_, UP_, UW_, UJ_) \| 06.2019-??? 1.5 BlueHDI 100 - 1499ccm, 102pk, 75kw - YHY (DV5RD), YHT (DV5RCF)
	208 II (UB_, UP_, UW_, UJ_) \| 06.2019-??? 1.5 BlueHDI 130 - 1499ccm, 131pk, 96kw - YHZ (DV5RC)
	208 II (UB_, UP_, UW_, UJ_) \| 06.2019-??? e-208 - ccm, 136pk, 100kw - ZKX (ZK01)
	3008 I
	3008 I MPV (0U_) \| 06.2009-08.2016 1.2 - 1199ccm, 131pk, 96kw - HNY (EB2DTS)
	3008 I MPV (0U_) \| 06.2009-08.2016 1.6 BlueHDi 120 - 1560ccm, 120pk, 88kw - BHZ (DV6FC)
	3008 I MPV (0U_) \| 06.2009-08.2016 1.6 HDi - 1560ccm, 114pk, 84kw - 9HD (DV6CTED)
	3008 I MPV (0U_) \| 06.2009-08.2016 1.6 HDi - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	3008 I MPV (0U_) \| 06.2009-08.2016 1.6 HDi - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	3008 I MPV (0U_) \| 06.2009-08.2016 1.6 VTi - 1598ccm, 120pk, 88kw - 5FS (EP6C), 5FW (EP6), EP6
	307
	307 (3A/C) \| 08.2000-04.2012 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	307 (3A/C) \| 08.2000-04.2012 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4B), 9HV (DV6TED4BU)
	307 (3A/C) \| 08.2000-04.2012 1.6 HDi 110 - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	307 (3A/C) \| 08.2000-04.2012 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A)
	307 (3A/C) \| 08.2000-04.2012 2.0 16V - 1997ccm, 177pk, 130kw - RFK (EW10J4S)
	307 (3A/C) \| 08.2000-04.2012 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4)
	307 (3A/C) \| 08.2000-04.2012 2.0 HDi 110 - 1997ccm, 107pk, 79kw - RHS (DW10ATED)
	307 (3A/C) \| 08.2000-04.2012 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4)
	307 (3A/C) \| 08.2000-04.2012 2.0 HDi 90 - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	307 CC
	307 CC (3B) \| 03.2003-06.2009 1.6 16V - 1587ccm, 110pk, 80kw - NFU (TU5JP4)
	307 CC (3B) \| 03.2003-06.2009 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A)
	307 CC (3B) \| 03.2003-06.2009 2.0 16V - 1997ccm, 177pk, 130kw - RFK (EW10J4S)
	307 CC (3B) \| 03.2003-06.2009 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4)
	307 CC (3B) \| 03.2003-06.2009 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4)
	307 Estate
	307 Estate (3E) \| 03.2002-12.2009 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	307 Estate (3E) \| 03.2002-12.2009 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HX (DV6AUTED4), 9HV (DV6TED4B), 9HV (DV6TED4BU)
	307 Estate (3E) \| 03.2002-12.2009 1.6 HDi 110 - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	307 Estate (3E) \| 03.2002-12.2009 2.0 - 1997ccm, 136pk, 100kw - RFN (EW10J4)
	307 Estate (3E) \| 03.2002-12.2009 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A)
	307 Estate (3E) \| 03.2002-12.2009 2.0 16V - 1997ccm, 177pk, 130kw - RFK (EW10J4S)
	307 Estate (3E) \| 03.2002-12.2009 2.0 HDI 110 - 1997ccm, 107pk, 79kw - RHS (DW10ATED)
	307 Estate (3E) \| 03.2002-12.2009 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4)
	307 Estate (3E) \| 03.2002-12.2009 2.0 HDI 90 - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	307 SW
	307 SW (3H) \| 03.2002-12.2009 1.4 - 1360ccm, 75pk, 55kw - KFW (TU3JP)
	307 SW (3H) \| 03.2002-12.2009 1.4 16V - 1360ccm, 88pk, 65kw - KFU (ET3J4)
	307 SW (3H) \| 03.2002-12.2009 1.6 16V - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	307 SW (3H) \| 03.2002-12.2009 1.6 HDI 110 - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	307 SW (3H) \| 03.2002-12.2009 1.6 HDI 90 - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HX (DV6AUTED4), 9HV (DV6TED4B), 9HV (DV6TED4BU)
	307 SW (3H) \| 03.2002-12.2009 2.0 16V - 1997ccm, 140pk, 103kw - RFJ (EW10A)
	307 SW (3H) \| 03.2002-12.2009 2.0 16V - 1997ccm, 136pk, 100kw - RFN (EW10J4)
	307 SW (3H) \| 03.2002-12.2009 2.0 HDI 110 - 1997ccm, 107pk, 79kw - RHS (DW10ATED)
	307 SW (3H) \| 03.2002-12.2009 2.0 HDi 135 - 1997ccm, 136pk, 100kw - RHR (DW10BTED4)
	307 SW (3H) \| 03.2002-12.2009 2.0 HDI 90 - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	308 CC
	308 CC (4B_) \| 02.2009-12.2014 1.6 16V - 1598ccm, 120pk, 88kw - EP6
	308 CC (4B_) \| 02.2009-12.2014 1.6 HDi - 1560ccm, 114pk, 84kw - 9HD (DV6C)
	308 CC (4B_) \| 02.2009-12.2014 1.6 HDi - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	308 I
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.4 16V - 1397ccm, 98pk, 72kw - 8FR (EP3)
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.4 16V - 1397ccm, 95pk, 70kw - 8FS (EP3), EP3
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.6 16V - 1598ccm, 120pk, 88kw - 5FS (EP6C), 5FW (EP6), 5FS (EP6C M)
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.6 16V - 1598ccm, 140pk, 103kw - 5FT (EP6DT)
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.6 16V - 1598ccm, 150pk, 110kw - 5FX (EP6DT)
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.6 BioFlex - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 114pk, 84kw - 9HD (DV6C), 9HG (DV6C M)
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 92pk, 68kw - 9HP (DV6DTED), 9HJ (DV6DTEDM)
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4B), 9HV (DV6TED4BU)
	308 I (4A_, 4C_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	308 SW
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.4 16V - 1397ccm, 98pk, 72kw - 8FR (EP3C)
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.4 16V - 1397ccm, 95pk, 70kw - 8FS (EP3)
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.6 16V - 1598ccm, 120pk, 88kw - 5FS (EP6C), 5FW (EP6)
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.6 16V - 1598ccm, 140pk, 103kw - 5FT (EP6DT)
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.6 16V - 1598ccm, 150pk, 110kw - 5FX (EP6DT)
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 114pk, 84kw - 9HD (DV6C)
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 92pk, 68kw - 9HP (DV6DTED)
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 90pk, 66kw - 9HX (DV6ATED4), 9HV (DV6TED4BU)
	308 SW I (4E_, 4H_) \| 09.2007-10.2014 1.6 HDi - 1560ccm, 109pk, 80kw - 9HY (DV6TED4), 9HZ (DV6TED4)
	5008
	5008 (0U_, 0E_) \| 06.2009-03.2017 1.6 16V - 1598ccm, 120pk, 88kw - 5FS (EP6C), 5FW (EP6), EP6
	5008 (0U_, 0E_) \| 06.2009-03.2017 1.6 HDi - 1560ccm, 114pk, 84kw - 9HD (DV6C)
	5008 (0U_, 0E_) \| 06.2009-03.2017 1.6 HDi - 1560ccm, 112pk, 82kw - 9HR (DV6C)
	5008 (0U_, 0E_) \| 06.2009-03.2017 1.6 HDi - 1560ccm, 110pk, 80kw - 9HZ (DV6TED4)
	PARTNER Box
	PARTNER Box Body/MPV \| 04.2008-??? 1.6 - 1598ccm, 98pk, 72kw - 5FK (EP6CB)
	PARTNER Box Body/MPV \| 04.2008-??? 1.6 - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	PARTNER Box Body/MPV \| 04.2008-??? 1.6 - 1587ccm, 90pk, 66kw - NFR (TU5JP4B)
	PARTNER Box Body/MPV \| 04.2008-??? 1.6 - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	PARTNER Box Body/MPV \| 04.2008-??? 1.6 HDi - 1560ccm, 114pk, 84kw - 9HL (DV6C)
	PARTNER Box Body/MPV \| 04.2008-??? 1.6 HDi - 1560ccm, 75pk, 55kw - 9HW (DV6BTED4), 9HT (DV6BTED4), 9HT (DV6BUTED4)
	PARTNER Box Body/MPV \| 04.2008-??? 1.6 HDi - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	PARTNER Box Body/MPV \| 04.2008-??? 1.6 HDi 16V - 1560ccm, 90pk, 66kw - 9HS (DV6TED4BU), 9HX (DV6AUTED4)
	PARTNER Box Body/MPV \| 04.2008-??? 1.6 HDi 90 - 1560ccm, 92pk, 68kw - 9HP (DV6DTED), 9HJ (DV6DTEDM)
	PARTNER MPV
	PARTNER MPV (5_, G_) \| 05.1996-12.2015 2.0 HDI - 1997ccm, 90pk, 66kw - RHY (DW10TD)
	PARTNER Platform/Chassis
	PARTNER Platform/Chassis \| 01.2009-??? 1.6 HDi - 1560ccm, 75pk, 55kw - 9HT (DV6BTED4)
	PARTNER Platform/Chassis \| 01.2009-??? 1.6 HDi 16V - 1560ccm, 90pk, 66kw - 9HS (DV6TED4BU), 9HX (DV6AUTED4)
	PARTNER TEPEE
	PARTNER TEPEE \| 04.2008-12.2018 1.6 HDi - 1560ccm, 112pk, 82kw - 9HL (DV6C)
	PARTNER TEPEE \| 04.2008-12.2018 1.6 HDi - 1560ccm, 114pk, 84kw - 9HL (DV6C)
	PARTNER TEPEE \| 04.2008-12.2018 1.6 HDi - 1560ccm, 109pk, 80kw - 9HZ (DV6TED4)
	PARTNER TEPEE \| 04.2008-12.2018 1.6 HDi 16V - 1560ccm, 90pk, 66kw - 9HV (DV6TED4B)
	PARTNER TEPEE \| 04.2008-12.2018 1.6 HDi 90 - 1560ccm, 92pk, 68kw - 9HP (DV6DTED), 9HJ (DV6DTEDM)
	PARTNER TEPEE \| 04.2008-12.2018 1.6 VTi - 1598ccm, 98pk, 72kw - 5FK (EP6CB)
	PARTNER TEPEE \| 04.2008-12.2018 1.6 VTi - 1598ccm, 120pk, 88kw - 5FS (EP6C)
	PARTNER TEPEE \| 04.2008-12.2018 1.6 VTi - 1587ccm, 90pk, 66kw - NFR (TU5JP4B)
	PARTNER TEPEE \| 04.2008-12.2018 1.6 VTi - 1587ccm, 109pk, 80kw - NFU (TU5JP4)
	PARTNER TEPEE \| 04.2008-12.2018 1.6 VTi - 1587ccm, 110pk, 81kw - NFU (TU5JP4)

VAUXHALL

	CROSSLAND X
	CROSSLAND X / CROSSLAND (P17) \| 03.2017-05.2018 1.2 (75) - 1199ccm, 83pk, 61kw - B 12 XE (EB2F), D 12 XE (EB2FA), F 12 XE (EB2FA)
	CROSSLAND X / CROSSLAND (P17) \| 03.2017-05.2018 1.2 (75) - 1199ccm, 110pk, 81kw - B 12 XHT (EB2DTS), B 12 XHL (EB2DT), D 12 XHL (EB2ADT), F 12 XHL (EB2ADT)
	CROSSLAND X / CROSSLAND (P17) \| 03.2017-05.2018 1.2 (75) - 1199ccm, 131pk, 96kw - B 12 XHT (EB2DTS), D 12 XHT (EB2ADTS), F 12 XHT (EB2ADTS)
	CROSSLAND X / CROSSLAND (P17) \| 03.2017-05.2018 1.5 Turbo D ((75)) - 1499ccm, 110pk, 81kw - F 15 DT (DV5RCE)
	CROSSLAND X / CROSSLAND (P17) \| 03.2017-05.2018 1.5 Turbo D (75) - 1499ccm, 102pk, 75kw - D 15 DT (DV5RD)
	CROSSLAND X / CROSSLAND (P17) \| 03.2017-05.2018 1.5 Turbo D (75) - 1499ccm, 120pk, 88kw - D 15 DTH (DV5RC)
	CROSSLAND X / CROSSLAND (P17) \| 03.2017-05.2018 1.6 Turbo D (75) - 1560ccm, 99pk, 73kw - B 16 DT (DV6FD)
	CROSSLAND X / CROSSLAND (P17) \| 03.2017-05.2018 1.6 Turbo D (75) - 1560ccm, 120pk, 88kw - B 16 DTH (DV6FC)
	MOKKA
	MOKKA \| 06.2020-??? 1.2 (76) - 1199ccm, 101pk, 74kw - F 12 XHL (EB2ADTD)
	MOKKA \| 06.2020-??? 1.2 (76) - 1199ccm, 131pk, 96kw - F 12 XHT (EB2ADTS)
	MOKKA \| 06.2020-??? 1.5 (76) - 1499ccm, 110pk, 81kw - F 15 DT (DV5RCE)
	MOKKA \| 06.2020-??? MOKKA-e (76) - ccm, 136pk, 100kw - ZKX (ZK01)

Original part numbers

E169142	CITROËN/PEUGEOT
16 064 014 80	CITROËN/PEUGEOT
16 137 039 80	CITROËN/PEUGEOT
3557911	OPEL
4249 18	CITROËN (DF-PSA)
4246 W2	CITROËN (DF-PSA)
4249 J6	CITROËN (DF-PSA)
4249 84	PEUGEOT (DF-PSA)
4249 17	PEUGEOT (DF-PSA)
4246 W8	PEUGEOT (DF-PSA)
4249 J6	PEUGEOT (DF-PSA)
16 678 574 80	CITROËN/PEUGEOT
98 084 833 80	CITROËN/PEUGEOT
4249 J6	CITROËN/PEUGEOT
4246 W8	CITROËN/PEUGEOT
4249 18	CITROËN/PEUGEOT
4246 W2	CITROËN/PEUGEOT
16 867 170 80	CITROËN/PEUGEOT
4249 17	CITROËN/PEUGEOT
4249 84	CITROËN/PEUGEOT

Manufacturer

Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
Delivery time

Expected delivery date:

07-01-2025
Questions?
Regarding product:
0846906. Brake Disc SPORT BRAKE DISC COAT Z

Name:

Email address:

Provide number plate

Add image(s):

Your question about this product:

In order to help you with your request, we require extra information about your vehicle. We would like to know: brand / model / type, year of manufacture, coach work, fuel, automatic transmission or manual, number of doors, VIN.

Control number
Manual
