Brake Disc SPORT BRAKE DISC COAT Z 610.3717.52 Zimmermann
Product number: 0847056
Manufacturer number: 610.3717.52
EAN: 4250238752981
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Give your brake system an upgrade with the Zimmerman Sport Z brake discs.
These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.
Grooved design:
- Perforated for better removal of gases
- Rust-resistant coating
Key benefits:
- German quality
- Less? Brake fading?
- Better braking performance
- Perfect fit
Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

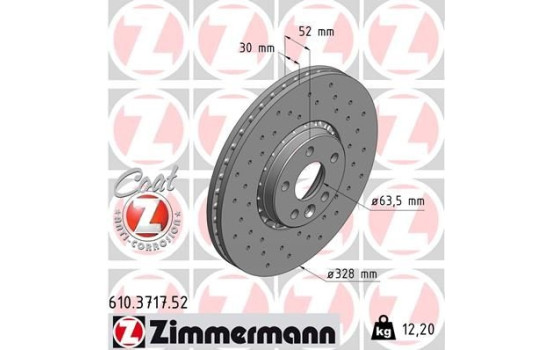

Outer diameter [mm] 328 Rim Hole Number 5 Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 108 Brake Disc Type Ventilated outside Perforated Centering Diameter [mm] 64 Hole Arrangement / Number 6/5 Inspection Tag KBA 60872 Warranty 2 years Height [mm] 52 Brake disc thickness (mm) 30 Minimum thickness (mm) 28 Weight [kg] 12,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17985 AP 25208 AP 25208 V BELACO BDS1364HC BLUE PRINT ADF124302 BORG & BECK BBD5903S BOSCH 0 986 479 621 BRECO BS 8818 BRECO BV 8818 BREMBO 09.B025.10 BREMBO 09.B025.11 BREMSI CD7801V CHAMPION 562672CH-1 COMLINE ADC1916V DJ PARTS BD2830 DON PCD18991 Dr!ve+ DP1010.11.1506 EUROBRAKE 5815204860 EUROBRAKE 5815314860 FEBI BILSTEIN 39289 FEBI BILSTEIN 39288 FERODO DDF1801C-1 FREMAX BD-7304 FTE 9071256 FTE BS7273 GIRLING 6064725 HELLA 8DD 355 116-181 HELLA 8DD 355 129-141 HELLA PAGID 8DD 355 129-141 HELLA PAGID 8DD 355 116-181 JURATEK VOL133 JURID 562672JC JURID 562672JC-1 MAGNETI MARELLI 361302040594 Manufacturer Manufacturer number Price MAPCO 25903C MAXGEAR 19-2336 MAXGEAR 19-2336SPORT MAXTECH 883435 METZGER 6110575 MEYLE 515 521 0035/PD MINTEX MDC2198 MOTAQUIP LVBD1537 NK 314860 NK 204860 OPTIMAL BS-8310 OPTIMAL BS-8310C OPTIMAL BS-8310HC QUARO QD3889 QUARO QD3889HC RAICAM RD00968 ROTINGER RT 21087-GL T9 ROTINGER RT 21087-GL T5 ROTINGER RT 21087 ROTINGER RT 21087-GL T6 ROTINGER RT 21087-GL ROTINGER RT 21087-GL T3 SKF VKBD 80128 V1 SWAG 55 93 9289 SWAG 55 93 9288 TEXTAR 92196305 TEXTAR 92196303 TRW DF6472S VAICO V95-80017 VALEO 197772 ZIMMERMANN 610.3717.20 ZIMMERMANN 610.3717.52 (this product) sbs 1815314860 -
Applicability
VOLVO XC60 I XC60 I SUV (156) | 05.2008-12.2017 2.0 T - 1999ccm, 203pk, 149kw - B 4204 T6 XC60 I SUV (156) | 05.2008-12.2017 2.4 D - 2400ccm, 175pk, 129kw - D 5244 T14 XC60 I SUV (156) | 05.2008-12.2017 2.4 D / D3 / D4 AWD - 2400ccm, 163pk, 120kw - D 5244 T5, D 5244 T16, D 5244 T17 XC60 I SUV (156) | 05.2008-12.2017 3.2 AWD - 3192ccm, 238pk, 175kw - B 6324 S XC60 I SUV (156) | 05.2008-12.2017 3.2 AWD - 3192ccm, 243pk, 179kw - B 6324 S5 XC60 I SUV (156) | 05.2008-12.2017 D3 - 1969ccm, 150pk, 110kw - D 4204 T4 XC60 I SUV (156) | 05.2008-12.2017 D3 - 1984ccm, 136pk, 100kw - D 5204 T7 XC60 I SUV (156) | 05.2008-12.2017 D3 / D4 - 1984ccm, 163pk, 120kw - D 5204 T2, D 5204 T3 XC60 I SUV (156) | 05.2008-12.2017 D4 - 1969ccm, 190pk, 140kw - D 4204 T14 XC60 I SUV (156) | 05.2008-12.2017 D4 - 1969ccm, 181pk, 133kw - D 4204 T5 XC60 I SUV (156) | 05.2008-12.2017 D4 AWD - 2400ccm, 181pk, 133kw - D 5244 T12 XC60 I SUV (156) | 05.2008-12.2017 D4 AWD - 2400ccm, 190pk, 140kw - D 5244 T21 XC60 I SUV (156) | 05.2008-12.2017 D5 - 2400ccm, 215pk, 158kw - D 5244 T11, D 5244 T15 XC60 I SUV (156) | 05.2008-12.2017 D5 AWD - 2400ccm, 205pk, 151kw - D 5244 T10 XC60 I SUV (156) | 05.2008-12.2017 D5 AWD - 2400ccm, 215pk, 158kw - D 5244 T11, D 5244 T15 XC60 I SUV (156) | 05.2008-12.2017 D5 AWD - 2400ccm, 220pk, 162kw - D 5244 T20, D 5244 T22 XC60 I SUV (156) | 05.2008-12.2017 D5 AWD - 2400ccm, 230pk, 169kw - D 5244 T23 XC60 I SUV (156) | 05.2008-12.2017 D5 AWD - 2400ccm, 185pk, 136kw - D 5244 T4 XC60 I SUV (156) | 05.2008-12.2017 T5 - 1969ccm, 245pk, 180kw - B 4204 T11, B 4204 T41 XC60 I SUV (156) | 05.2008-12.2017 T5 - 1999ccm, 241pk, 177kw - B 4204 T7 XC60 I SUV (156) | 05.2008-12.2017 T5 AWD - 1969ccm, 245pk, 180kw - B 4204 T11 XC60 I SUV (156) | 05.2008-12.2017 T6 - 1969ccm, 306pk, 225kw - B 4204 T9 XC60 I SUV (156) | 05.2008-12.2017 T6 AWD - 1969ccm, 306pk, 225kw - B 4204 T9 XC60 I SUV (156) | 05.2008-12.2017 T6 AWD - 2953ccm, 286pk, 210kw - B 6304 T2 XC60 I SUV (156) | 05.2008-12.2017 T6 AWD - 2953ccm, 304pk, 224kw - B 6304 T4 XC60 I SUV (156) | 05.2008-12.2017 T6 AWD - 2953ccm, 329pk, 242kw - B 6304 T4, B 6304 T3 -
Original part numbers
31277342 VOLVO 31471034 VOLVO 31410568 VOLVO 31410568 VOLVO ASIA 31277342 VOLVO ASIA 31471034 VOLVO ASIA -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
