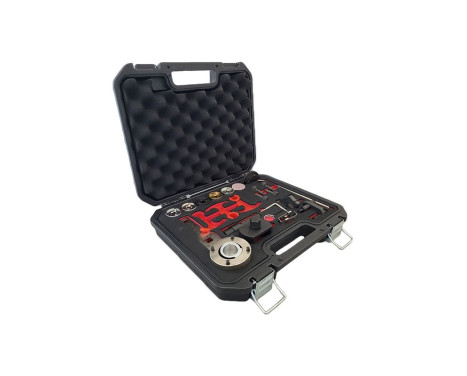

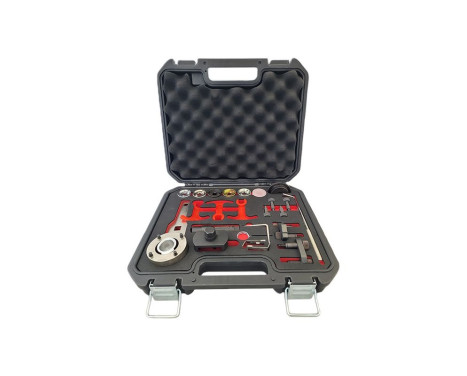

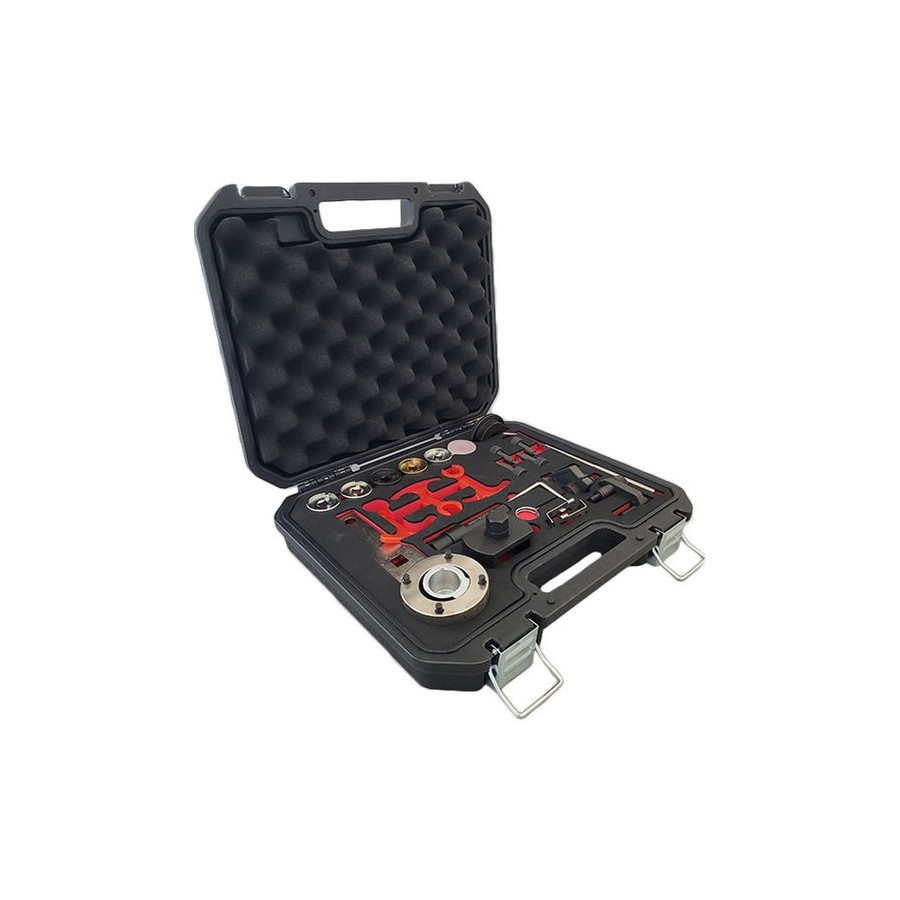

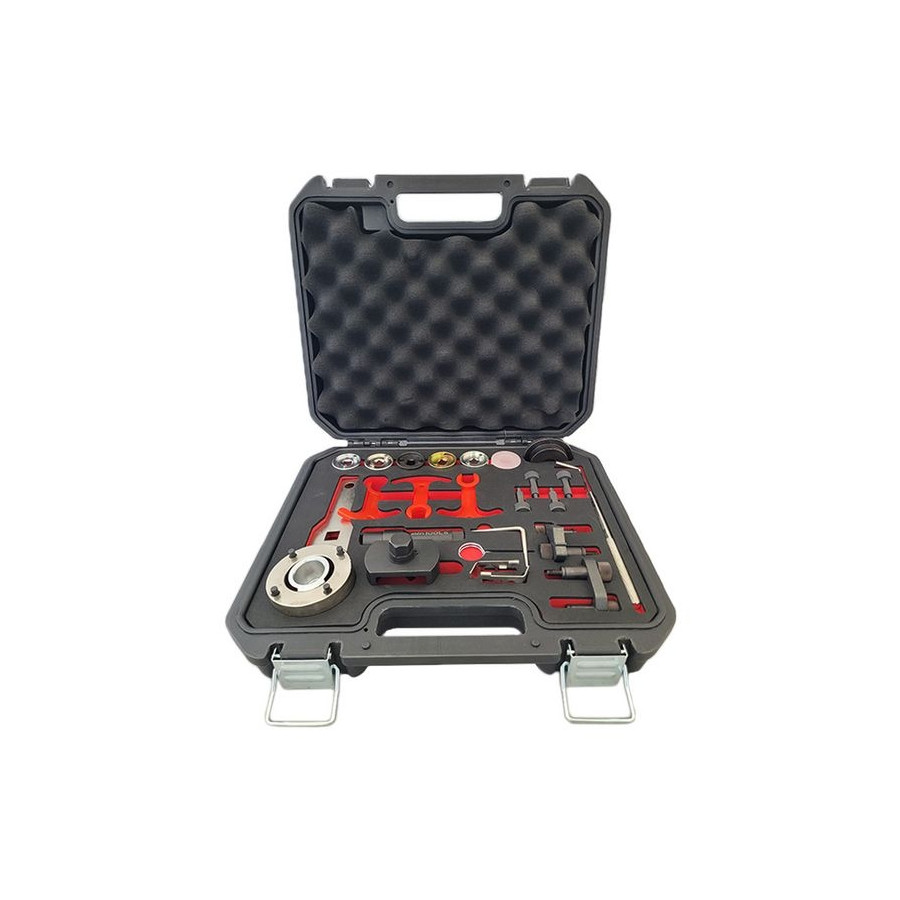

Engine Timing Tool Set for VW Audi TSI TFSI 1.8L 2.0L

Timing set for the chain driven 1.8 & 2.0 TFSI VAG engines in Audi, Seat, Skoda and VW from model year 2008.

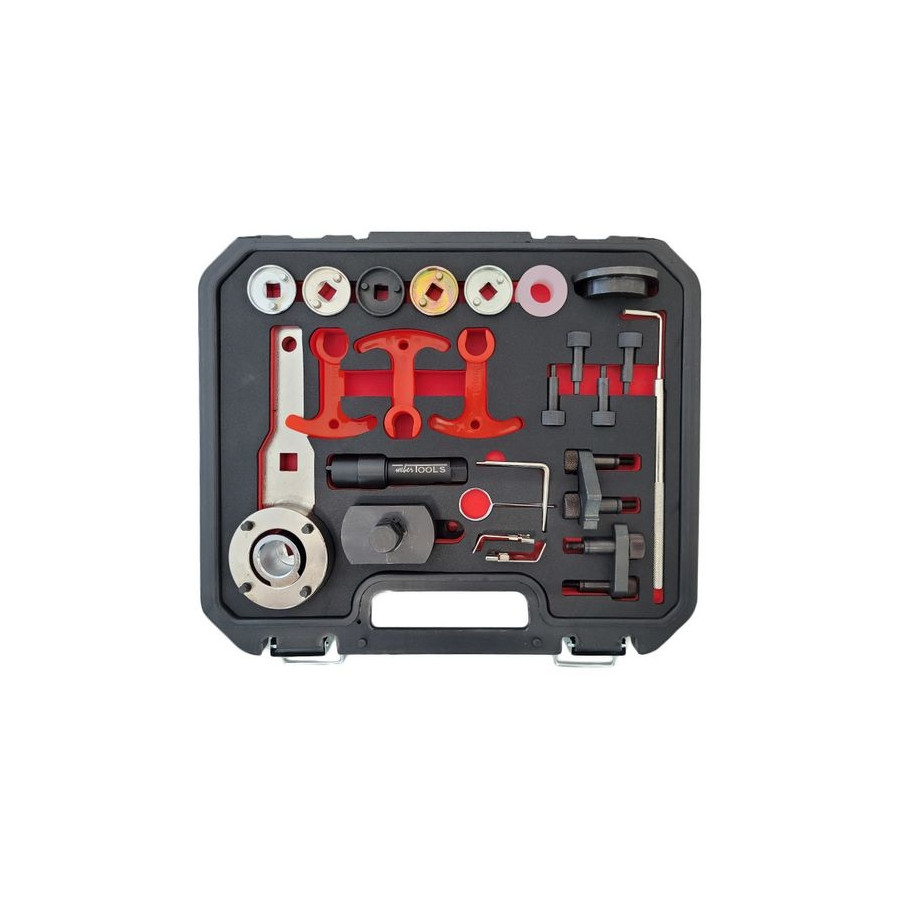

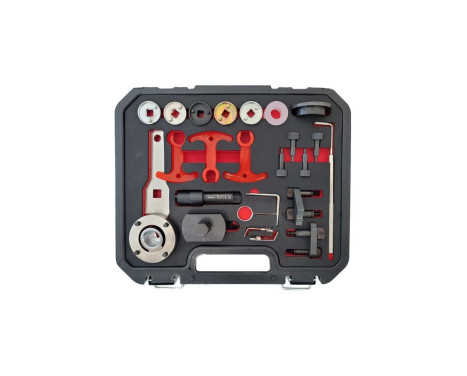

Contents:

• Block key (840 mmL) for holding and loosening or tightening the crankshaft central bolt (T10355)
• Ring for use when removing and installing timing cover (T10368)
• Bolts for the sliding pieces on the camshaft on 2.0L 4V Turbo engines (T40196)

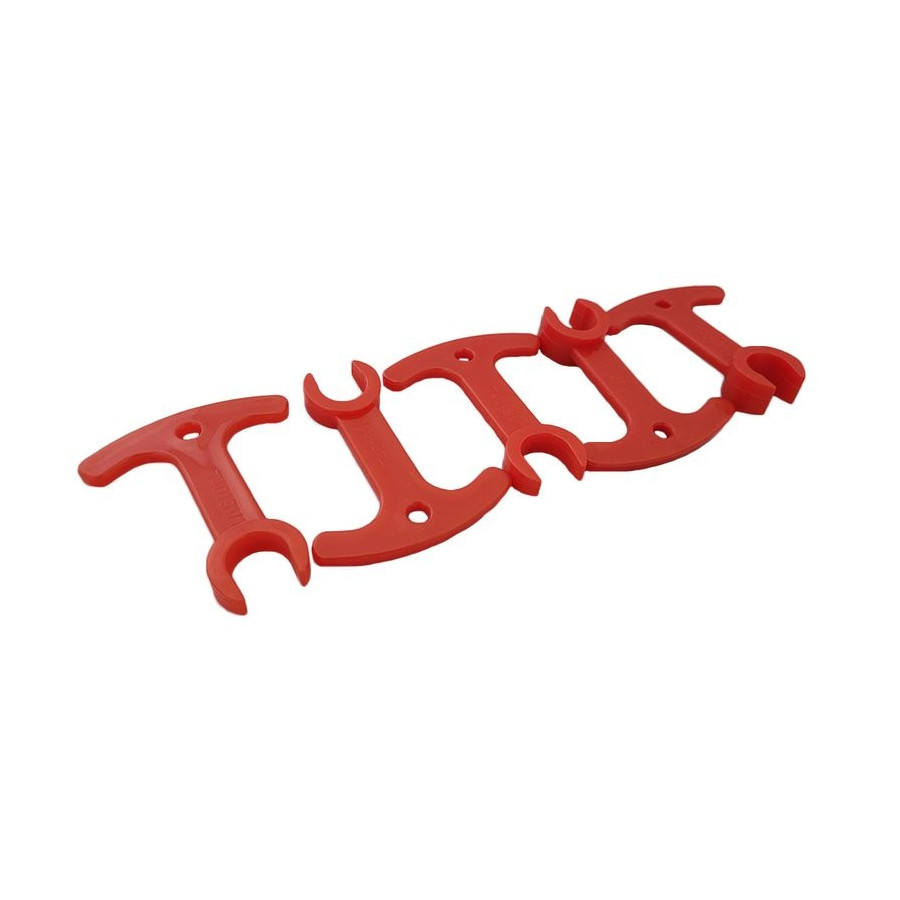

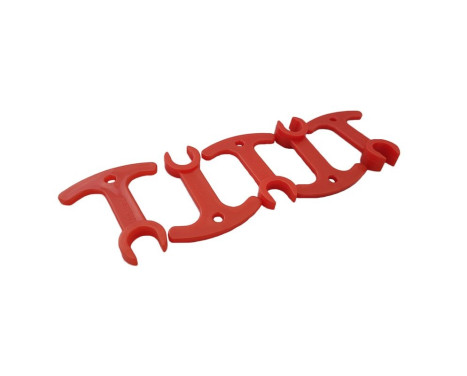

• Chain tensioner retaining clips (T40267)
• Tool to lock camshaft sprockets at TDC when installing chain (T40271)
• Camshaft Removal and Installation Tools (T10352 & T10352/1)
• Tensioner locking pin (T40098 & T40011)
• Camshaft Distance Tools (T40191/1 & T40191/2)
• Crankshaft Seal Installation Tool (T10354)
• Cotter pin (T10060A)
• Camshaft Chain Locking Tool (T40271 & T20208)
• Camshaft adapter (T10567)

Applications:

• Audi: A3, A4, A5, TT, Q5
• Volkswagen: Eos, Golf, Jetta, Passat, Scirocco, Sharan, Tiguan
• Seat: Altea, Exeo, Leon, Toledo
• Skoda: Octavia II, Superb II, Yeti

Engine codes:

• AXX
• BPY, BWA, BYT, BZB
• CABA, CABB, CABD, CADA, CAEA, CAED, CAWA, CAWB, CBFA, CCTA, CCTB, CCUA, CCZA, CCZB, CCZC, CCZD, CDAA, CDAB, CDHA, CDHB, CDNB, CDNC, CDZA, CESA, CETA, CFKA, CFPA, CGYA, CHHA, CHHB, CHHC, CHJA, CJEB, CJEE, CJKA, CJSA, CJSB, CJXB, CJXC, CJXF, CJXG, CNCD, CNCE, CNSB, CNTC, CPMA, CPMB, CPSA, CULA, CULB, CULC, CWZA, CXCB, CXDA, CYGA, CYNB, CYPA
• DAJA, DAJB, DAJB, DEDA, DEDA
