MAX Level PA1 Mono amplifier 1Ohm

MAX Level PA1 Mono amplifier 1Ohm

DESCRIPTION SPECIFICATIONS MOUNTING
MAXIMUM EFFICIENCY EVOLVED
The MAX PA1 Series amplifiers are the next generation of highly efficient, full-range Class D amplifiers - engineered to perfection with carefully selected, high-quality components and innovative design features that ensure long-lasting, maximum output.

VCC - OPTIMIZED AIRFLOW

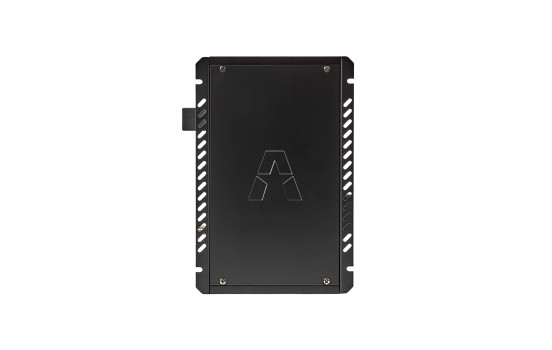

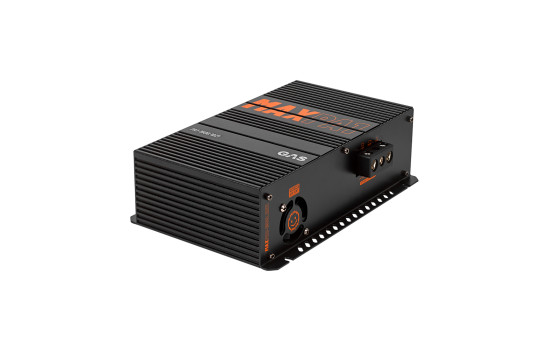

The unique extruded aluminum heatsink with a reinforced A-star backplate has thermal properties designed to optimize and control the amplifier's temperature. The GAS VCC (Vented Cross Cooling) system ensures that cool air constantly flows forward over the components, with the warm air being forced out through the thermal vents on the other side of the chassis.

HIGH QUALITY VERSATILITY
Thanks to the advanced full-range Class D circuit on a 4-layer circuit board, any type of speaker can be connected: subwoofers, drivers, tweeters or coaxial speakers. The high/bandpass filter is adjustable between 15-80Hz and the low-pass filter is adjustable from 50Hz to 22000Hz. To precisely adjust the bass frequencies (35-70Hz), there is a 0-12dB Bass EQ level control. The PA1-1500.1DZ and PA1-3000.1DZ are available in Z1 (max. power @1Ohm) and Z2 (max. power @2Ohm) versions to suit any setup.

ASSET MANAGEMENT AND REGULATION
The MAX PA1 Series' powerful, continuous power output is possible thanks to a stabilized high-voltage power supply that fully controls voltage variations in the car's battery. The amplifiers also have a 4-fold protection system: thermal protection, short circuit, overload protection and a switch-on delay.

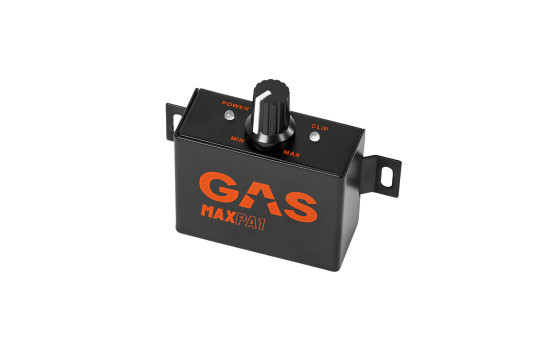

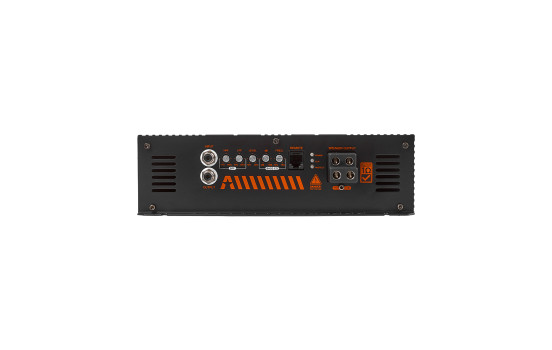

Setting (and maintaining) the correct output level is optimized thanks to the Clip LEDs on the amplifier and the wired remote control - no clip light indicates distortion is less than 1%, anything above that and the advanced protection circuitry kicks in. To ensure a safe and stable input signal, all models have high-quality Tiffany RCA connectors.

SIZE MATTERS

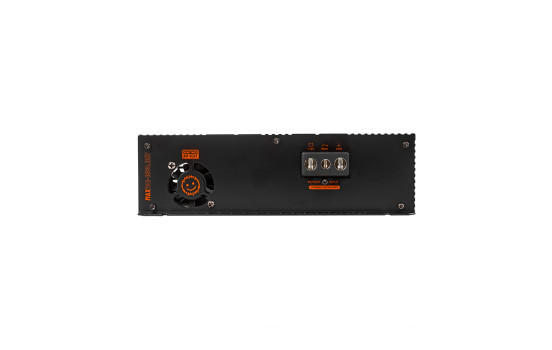

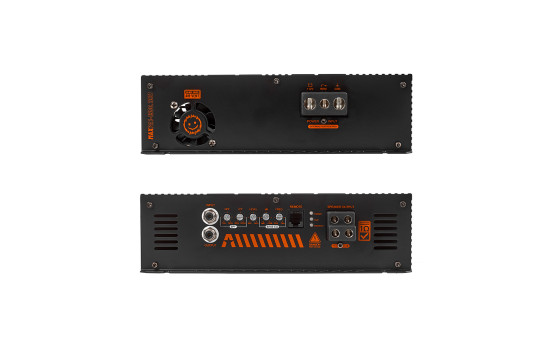

The MAX PA1 amplifiers are equipped with dual plus size 8AWG (10mm²) speaker cable outputs and properly sized power and ground connectors. The PA1-1500.1DZ1/2 has a 2AWG (35mm²) connector, the PA1-3000.1DZ1/2 has a 0AWG (50mm²) and the largest model, PA1-5000.1DZ1, has a double 0AWG (50mm²).

• Component: Amplifier
• Channels: One
• Input mode: Mono
• Power RMS (1 Ohm): 1x1500W
• Power RMS (2 Ohm): 1x850W
• Power RMS (4 Ohm): 1x500W
• Freq. Response: 15-22000 Hz
• Low Pass Filter: 50-22000 Hz
• High Pass Filter: 15-80 Hz
• S/N Ratio (A-weighted): >92dB
• Bass EQ: 0-12dB @45Hz
• Crossover Slope: 12dB
• Power Voltage: 10-16V
• REM Voltage: 10-16V
• Input Sensitivity: 0.2-10V
• THD: <0.1%
• Power Fuse: N/A
• Damping Factor: >120
• RCA Line Out: Yes

• 1-Channel
