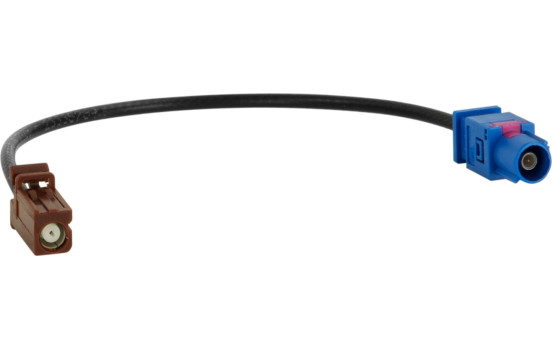

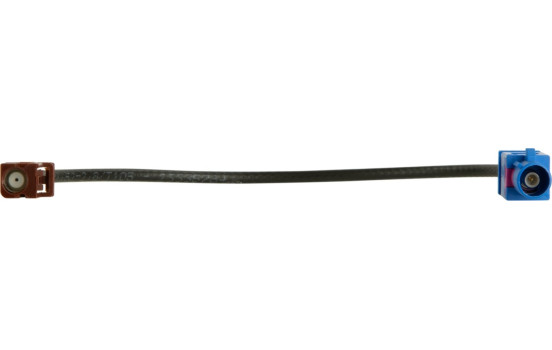

Antenna Adapter Fakra C(m)>GT16(f) Pioneer LEONI/ROKA

acv LEONI / ROKA PRO

Antenna cables, extensions and antenna adapters of the acv LEONI series are characterized by the use of LEONI coaxial cables and high-quality OEM connectors from the German manufacturer ROKA.

LEONI, as a globally operating and certified company in the field of all types of automotive cables, member of international professional associations and cable supplier to all manufacturers, offers, among other things, LEONI Dacar coaxial cables for data and signal transmission according to the highest OEM standards and approvals.

As a medium-sized company, ROKA (RObert KArst) is ISO/TS 16949 certified and thus meets additional requirements as a supplier to the automotive industry and is recognized by all vehicle manufacturers.
As a member of the specialized working group Automotive > FAKRA, ROKA is strongly involved in the cross-manufacturer development of connection systems for antenna cables.

LEONI coaxial cables with the best coupling resistance and shielding properties with low signal attenuation, low loss and interference free for maximum reception.

FAKRA OEM connectors and high-quality acv connectors with maximum contact reliability.

NB:

In case of reception problems:

Check antenna cable and antenna adapter for continuity.

Check vehicle for interference from retrofit LED lighting
Check vehicle for faults due to retrofit voltage converter / power supply units USB charging adapter
Check vehicle for faults using retrofitted digital output stages

Technical data:

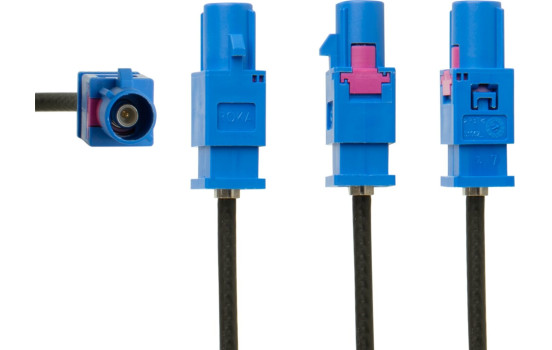

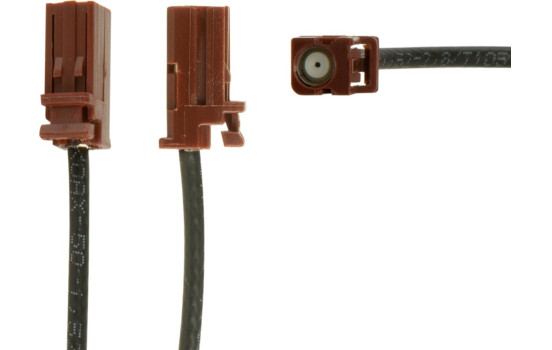

Connection: Fakra C(m) >GT16(f)-1S-HU(f)
Length: 20 cm

Structure
Cable: LEONI Dacar
Conductor: Staku wire bare 40% iACS
Dielectric: XPE natural color
Shielding 1: Aluminum foil laminated
Shielding 2: Braiding of Cu wires / tinned / Cu ETP 1 according to EN 13602
Coating: PVC / lead free

Electrical properties at room temperature
Conductor resistance: 317 Ohm/km
Capacitance at 1 kHz: 106 pF/m
Characteristic impedance: 50 Ohm +/- 3 Ohm
Shortening factor: approx. 66
Shielding effectiveness: 75 dB min.

Mechanical properties
Cable weight: approx. 12.4 kg/km
Bending radius single: 3 xd
Bending radius multiple: 10 xd

For the following application:

GPS radio connection adapter
GPS antenna installation

For the following devices:

Pioneer > GPS antenna connection green

Suitable for:
FAKRA
GT5

---

Warranty

2 years
