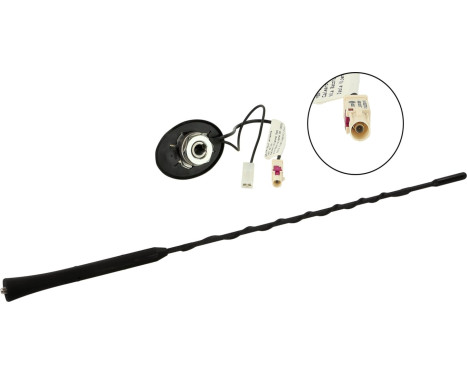

Roof antenna AM/FM 76° rod inclination 12V external

Roof antenna AM/FM
Type 16V Opel

NB:
NEW ITEM FOR 15-7677900
CONNECTION AND ACCESSORIES CHANGED
OPTIONAL ACCESSORIES LISTED BELOW:
Types of reception: AM/FM

Assembly:
Installation location: rear roof
Bore round: 19 mm
Square hole: 15mm x 15mm
Bar length: 405 mm
Bar tilt: 76°
Bar type: smooth
Thread: M5

Dimensions:
Total height: 440mm
Antenna base: L = 60 mm / W = 43 mm
Connection:
AM/FM: Fakra B(m) white RG174 / 180 mm
External power supply: flat plug 6.3 mm
Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5MHz-108MHz

Power supply:
AM/FM: +12V external
Energy consumption:
AM/FM: 60mA max
Options:
AM/FM:
Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195
Antenna adapter Fakra(m) > DIN(m) passive: 1524-01
Antenna adapter Fakra(m) > ISO(m) passive: 1524-02
Replacement stick without base:
Antenna rod AM/FM 41cm M5: 15-7551037

Suitable for:
AM FM
Opel Various models Various years

---

Material	Plastic
Foot	Including
Length	40.6 cm
application	Sprite
Cable	Including
Warranty	2 years
