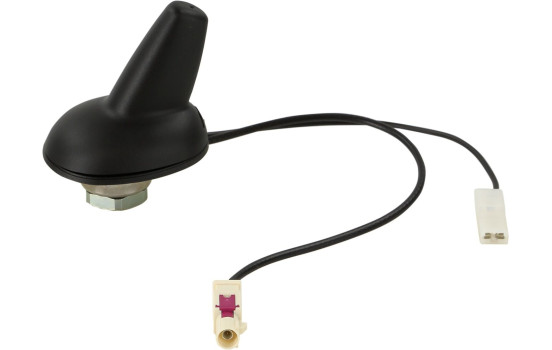

Roof antenna AM/FM Shark

Roof antenna AM/FM
Shape Shark
NB:
NEW ITEM FOR 15-7677800
CONNECTION AND ACCESSORIES CHANGED
OPTIONAL ACCESSORIES LISTED BELOW:
only for strong transmitters
Types of reception: AM/FM

Assembly:
Installation location: rear roof
Bore round: 19 mm
Square hole: 15mm x 15mm

Dimensions:
Antenna base: L = 60 mm / W = 45 mm / H = 50 mm

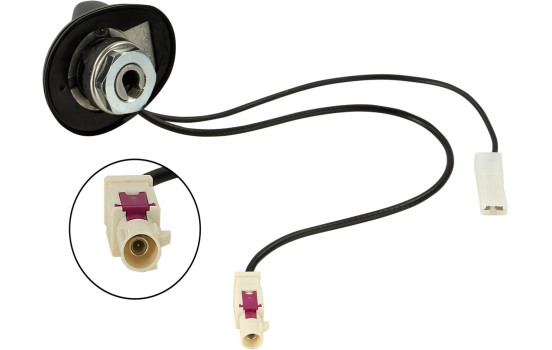

Connection:
AM/FM: Fakra B(m) white RG174 / 250 mm
External power supply: flat plug 6.3 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5MHz-108MHz

Power supply:
AM/FM: 12V external/12V phantom power

Energy consumption:
AM/FM: 60mA max
Impedance:
AM/FM: 50 ohm
Options: AM/FM:
Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581995
Antenna adapter Fakra(m) > DIN(m) passive: 1524-01
Antenna adapter Fakra(m) > ISO(m) passive: 1524-02
Antenna adapter Fakra(m) > DIN(m) 12V Phantom: 1524-03
Antenna adapter Fakra (m) > ISO(m) 12V phantom power: 1524-04

Suitable for:
AM FM

---

Material	Plastic
Foot	Including
Length	6 cm
application	Sharkfin
Cable	Including
Warranty	2 years
