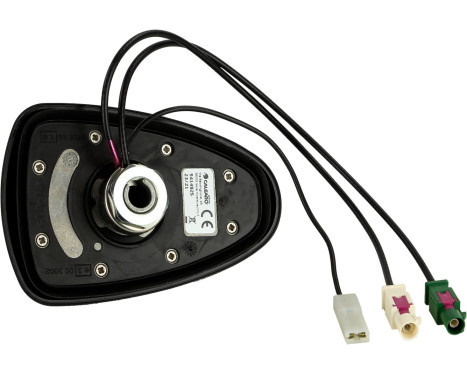

Roof antenna AM / FM TV / DVB-T Shark II

Roof antenna AM/FM TV/DVB-T
Design Shark II
NB:
NEW ITEM FOR 15-7727080
CONNECTION AND ACCESSORIES CHANGED
OPTIONAL ACCESSORIES LISTED BELOW
Types of care:
AM/FM
TV/DVB-T

Assembly:
Installation location: rear roof
Bore round: 19 mm
Square hole: 15mm x 15mm
Tightening torque: 6.5 nm +/- 20%

Dimensions:
Antenna base: L = 117 mm / W = 76 mm / H = 62 mm

Connection:
AM/FM: Fakra B(m) white RG174 / 250 mm
DAB/DAB+: Fakra E(m) green RG174 / 250 mm
External power supply: flat plug 6.3 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5MHz-108MHz
TV/DVB-T:
Band III 174 - 230MHz
Band IV/V 470 - 790 MHz
Advantage (dB):
TV/DVB-T: 4dBi

Earn:
TV/DVB-T: 4dBi

Power supply:
AM/FM: 12V external/12V phantom power
TV/DVB-T: 12V external / 12V phantom power

Energy consumption:
AM/FM: 50mA max
TV/DVB-T: 40mA max
Impedance:
AM/FM: 50 ohm
DAB/DAB+: 50 ohm

Wave ratio:
TV/DVB-T: <4

Options:
AM/FM:
Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195
Antenna adapter Fakra(m) > DIN(m) passive: 1524-01
Antenna adapter Fakra(m) > ISO(m) passive: 1524-02
Antenna adapter Fakra(m) > DIN(m) 12V Phantom: 1524-03
Antenna adapter Fakra(m) > ISO(m) 12V Phantom: 1524-04
TV/DVB-T:
Antenna cable extension Fakra(f) > Fakra(f) 500cm: 15-7581195

Suitable for:
AM FM DBV-T
Universal

---

Material	Plastic
Foot	Including
Length	6 cm
application	Sharkfin
Cable	Including
Warranty	2 years
