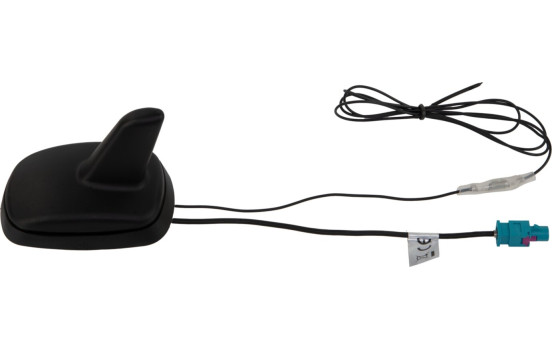

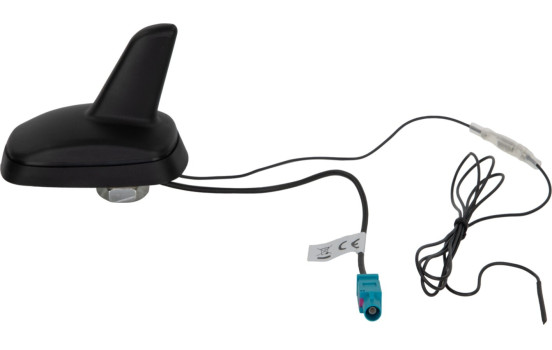

Shark roof antenna AM/FM Fakra male (phantom)

Style: Shark

The acv basic antenna series provides good reception performance even under less than ideal conditions, thanks to the selection of quality components and careful installation.

To optimize antenna reception, always ensure optimal grounding of the antenna base or grounding strap during installation.

Remove existing paint on the contact points with workshop material and protect against corrosion with suitable contact paste and also treat the antenna rod wire and antenna base to optimize contact.

Remark:

AM antenna black cable 115 cm > installation extended under the roof covering without GND contact

+12V phantom power:

OEM HU with phantom power > check phantom power
aftermarked HU with phantom power > activate and check phantom power

In case of reception problems:

check antenna cable and antenna adapter

Check vehicle for errors using LED lighting afterwards
check vehicle for errors by retrofitting voltage converter / power supply units / USB charging adapter
check the vehicle for errors due to retrofit digital power amplifiers

Receive mode:
AM/FM

Installation:
installation point: rear roof
drill hole round: 21 mm

Dimensions:

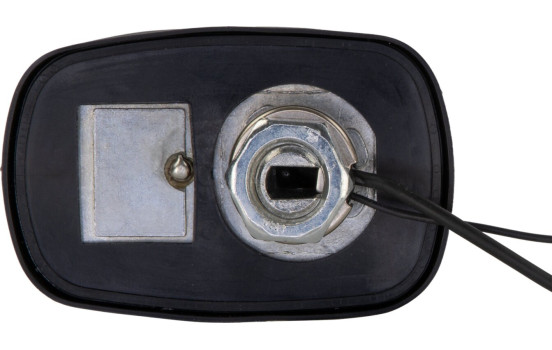

antenna socket: L = 86 mm / W = 54 mm / H = 63 mm

Connections:
AM/FM: Fakra Z(m) / L = 21 mm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5 MHz - 108 MHz

Power supply:
AM/FM: +12V phantom power

Power consumption:
AM/FM: 33 mA

Impedance:
AM/FM: 50 Ohm

Optional:
AM/FM:

Antenna cable extension Fakra(f)>Fakra(f) 500cm ROKA > item: 1526-500-1
Antenna adapter Fakra(m)>DIN(m) 12V phantom LEONI > item: 1524-03-1

Suitable for:
AM
FM

---

Material	Plastic
Foot	Including
Length	6 cm
application	Sharkfin
Cable	Including
Warranty	2 years
