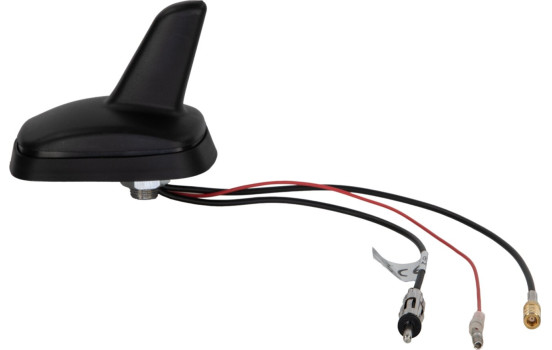

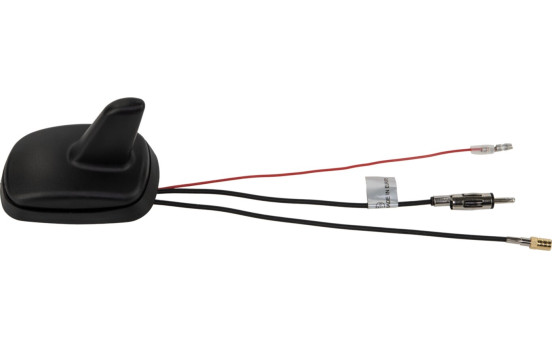

Shark roof antenna FM / DAB+ (matt black)

Style: Shark

The acv basic antenna series provides good reception performance even under less than ideal conditions, thanks to the selection of quality components and careful installation.

To optimize antenna reception, always ensure optimal grounding of the antenna base or grounding strap during installation.

Remove existing paint on the contact points with workshop material and protect against corrosion with suitable contact paste and also treat the antenna rod wire and antenna base to optimize contact.

Remark:

red +12V power supply external:

connection > antenna remote control HU
connection > ignition terminal 15 fused

In case of reception problems

check antenna cable and antenna adapter

check vehicle for errors by retrofitting LED lighting
check vehicle for errors by retrofitting voltage converter / power supply units / USB charging adapter
check the vehicle for errors due to retrofit digital power amplifiers

Receive mode:
FM
DAB+

Installation:
installation point: rear roof
drill hole round: 21 mm

Dimensions:

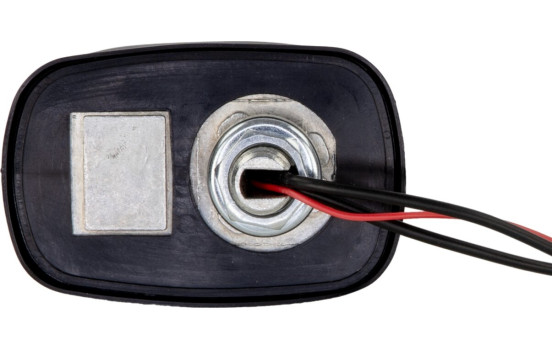

antenna socket: L = 86 mm / W = 54 mm / H = 63 mm

Connections:

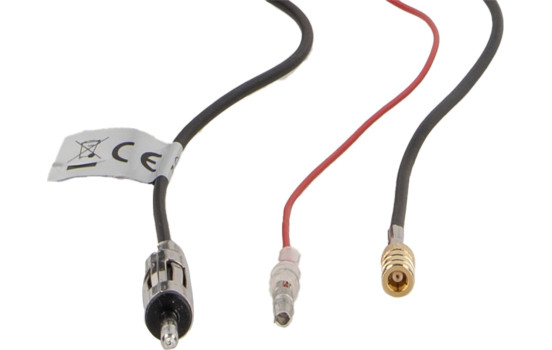

FM: DIN(m) / L = 23 cm
DAB+: SMB(f) / L = 23 cm
external power supply: L = 23 cm

Frequency range:
FM: 87.5 MHz - 108 MHz
DAB+: 174 MHz - 240 MHz

Reinforcement:
FM: +14 db
III Band: +15 dB
L-band: +6 dB

Power supply:
FM: +12V external
DAB+: +12V external

Optional:
AM/FM

Antenna cable extension DIN(f) > DIN(m) 250cm > item: 1574-00
Antenna cable extension DIN(f) > DIN(m) 350cm > item: 1576-00
Antenna cable extension DIN(f) > DIN(m) 450cm > article 1578-00
Antenna cable extension DIN(f) > DIN(m) 500cm > article 1580-00

DAB+
Antenna cable extension SMB(m)>SMB(f) 500cm > item: 1502-500
Antenna adapter SMB(m)>SMA(m) > item: 1502-29

Suitable for:
DAB FM

---

Material	Plastic
Foot	Including
Length	6 cm
application	Sharkfin
Cable	Including
Warranty	2 years
