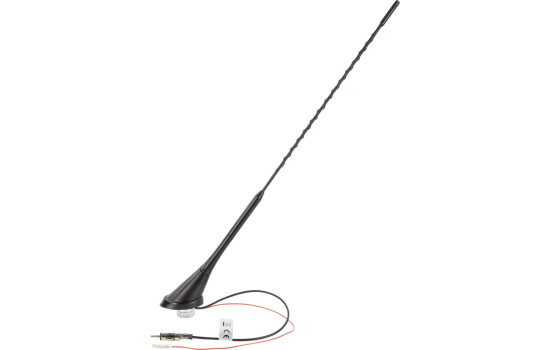

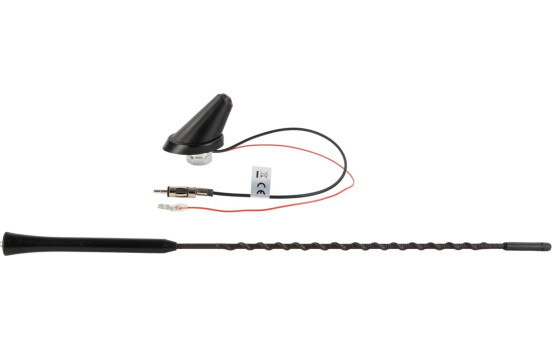

Universal roof antenna 16V AM/FM amplified (active) 52 degree mounting angle

Type: 16V

The acv base antenna range offers good reception performance even under less than ideal conditions, thanks to the selection of high quality components and careful installation.

To optimize the reception of antenna systems, you must ensure that the antenna base or ground strap is optimally grounded:

Remove paint from the contact points with workshop equipment and protect against corrosion with suitable contact paste and also treat the antenna rod wire and the antenna base wire to optimize contact.

Remark:

red +12V external supply voltage:

Connection > Antenna remote control retrofit radio
Connection > Ignition current terminal 15 fused

In case of reception problems:

Check antenna cable and antenna adapter for continuity

Check the vehicle for faults caused by aftermarket LED lighting
Check the vehicle for faults caused by aftermarket voltage converters / power supplies / USB charging adapters
Check the vehicle for interference from aftermarket digital output stages.

Reception types:
AM/FM

Installation:
Installation location: Rear roof
Bore round: 15 mm
Drill hole square: 14.5 mm x 14.5 mm
Length of rod: 41 cm
Bar Slope: 56°
Rod type: 16V
Thread: M5

Dimensions
Total height: 37 cm
Antenna base: L = 58 mm / W = 40 mm / H = 45 mm
Antenna base thread: M5

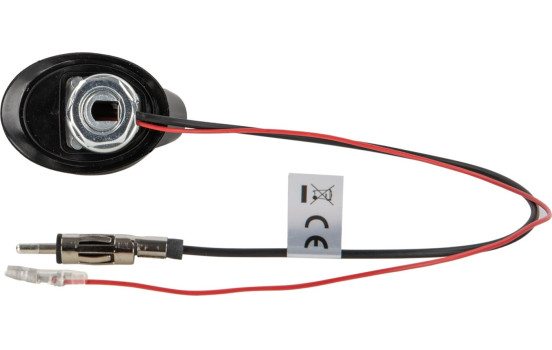

Connection:
AM/FM: DIN(m) / L = 40 cm
External power supply: Round plug (m) / L = 35 cm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5 MHz - 108 MHz

Reinforcement:
AM: +10 db
FM: +18 db

Power supply:
AM/FM: +12V external

Power consumption:
AM/FM: 33 mA max

Optional:
AM/FM:
Antenna cable extension DIN(f) > DIN(m) 250cm > Article: 1574-00
Antenna cable extension DIN(f) > DIN(m) 350cm > Article: 1576-00
Antenna cable extension DIN(f) > DIN(m) 450cm > Article: 1578-00
Antenna cable extension DIN(f) > DIN(m) 500cm > Article: 1580-00

Spare rod without base:
Antenna rod AM/FM 41cm M5/M6 16V > Article: 152000-23

Suitable for:
AM
FM

---

Material	Plastic
Foot	Including
Length	41 cm
application	Sprite
Cable	Including
Warranty	2 years
