Universal Roof Antenna AM/FM 0-70 Degree Mounting Angle

Style: universal

The acv basic antenna series provides good reception performance even under less than ideal conditions, thanks to the selection of quality components and careful installation.

To optimize antenna reception, always ensure optimal grounding of the antenna base or grounding strap during installation.

Remove existing paint on the contact points with workshop material and protect against corrosion with suitable contact paste and also treat the antenna rod wire and antenna base to optimize contact.

Remark:

OEM spare part antenna without antenna cable without M6 nut

In case of reception problems

check antenna cable and antenna adapter

Check vehicle for errors using LED lighting afterwards
check the vehicle for faults due to retrofit voltage converters / power supplies / USB charging adapters
check the vehicle for errors due to retrofit digital power amplifiers

Receive mode:
AM/FM

Installation:
installation point: roof (front) / mudguard / A-pillar / universal
drill hole: A Ø 8 mm
length of rod: 34.5 cm +/-

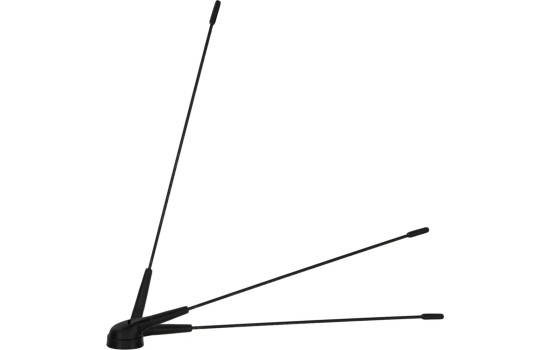

bar slope: 0° - 70°
Rod type: fiberglass
thread for rod: M6

Dimensions:

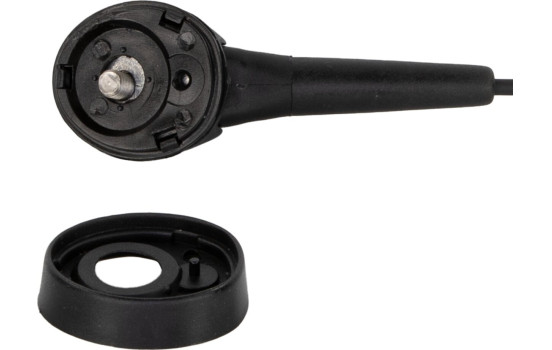

antenna socket: L = 43 mm / W = 37 mm / H = 44 mm
Antenna socket thread: M6

Connections:
AM/FM: without cable

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5 MHz - 108 MHz

Impedance:
150 Ohm

Replacement rod without fitting:
Antenna rod AM/FM 34.5cm M5/M6 fiberglass smooth > item: 152000-25

Suitable for:
AM
FM
