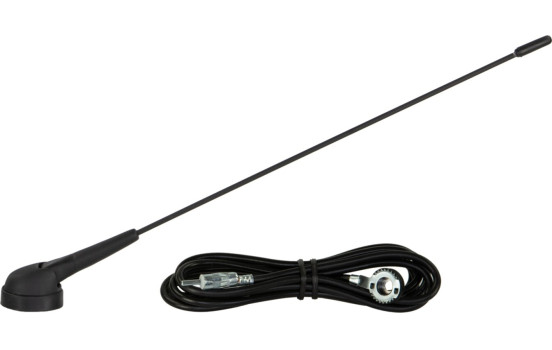

Universal Roof Antenna AM/FM 0-70 Degree Mounting Angle

Style: universal

The acv basic antenna series provides good reception performance even under less than ideal conditions, thanks to the selection of quality components and careful installation.

To optimize antenna reception, always ensure optimal grounding of the antenna base or grounding strap during installation.

Remove existing paint on the contact points with workshop material and protect against corrosion with suitable contact paste and also treat the antenna rod wire and antenna base to optimize contact.

Remark:

In case of reception problems:

check antenna cable and antenna adapter

Check vehicle for defects through retrofit LED lighting
check the vehicle for defects by retrofitting voltage converters / power supplies / USB charging adapters
Check the vehicle for errors due to retrofitted digital power amplifiers.

Receive mode:
AM/FM

Installation:
installation point: roof (front) / mudguard / A-pillar / universal
drill hole: A Ø 8 mm
length of rod: 34.5 cm +/-
bar slope: 0° - 70°
Rod type: fiberglass
thread for rod: M6

Dimensions:

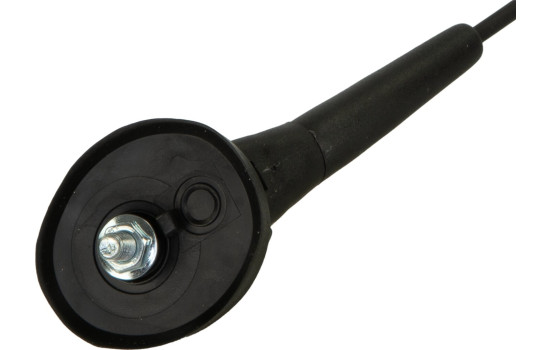

antenna socket: L = 43 mm / W = 37 mm / H max. = 44 mm
Antenna socket thread: M6

Connections:
AM/FM: DIN(m) / L = 230 cm

Frequency range:
AM: 150 kHz - 1710 kHz
FM: 87.5 MHz - 108 MHz

Impedance:
150 Ohm

Optional:
AM/FM

Antenna cable extension DIN(f) > DIN(m) 250cm > item: 1574-00
Antenna cable extension DIN(f) > DIN(m) 350cm > item: 1576-00
Antenna cable extension DIN(f) > DIN(m) 450cm > article 1578-00
Antenna cable extension DIN(f) > DIN(m) 500cm > article 1580-00

Replacement rod without fitting:
Antenna rod AM/FM 34.5cm M5/M6 fiberglass smooth > item: 152000-25

Suitable for:
AM
FM
