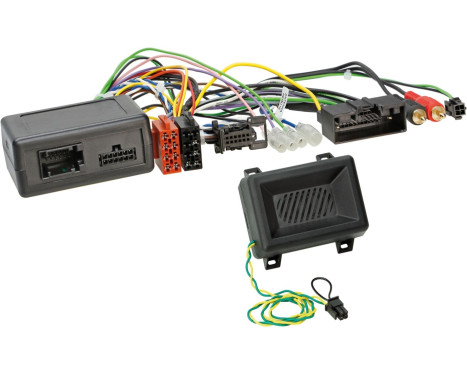

SWI Various models Ford OEM Specific

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Notes:

NB:

CAN bus

Connection: 24 pin Ford connector
Connection: AMP display connector

Vehicles with steering wheel OK and/or voice function button
Vehicles with OEM display*
Vehicles with CD player under the monitor
Vehicles with SYNC: SYNC function not supported

Disable SYNC functions and BT before installation
SYNC emergency call function is disabled with BT function

Avoid interference with vehicle settings:

Turn off the retrofit device
Press the voice button for a maximum of 2 seconds to enter the settings menu.
Only make settings as described in the manual.

In case of failure in setting mode

Resetting after CAN bus standstill

The display cable may need to be extended*****

Suitable for the following vehicles:

Ford B-MAX (JK8) 10/2012 - 09/2017
Ford C-MAX (DXA) 11/2010 - 05/2015*****
Ford C-MAX (DXA) 06/2015 - 12/2019*****
Ford Ecosport (JK8) 02/2014 - 10/2017
Ford Fiesta (JA8/JR8) 01/2013 - 06/2017
Ford Focus (DYB) 09/2011 - 09/2014
Ford Focus (DBY) 10/2014 - 08/2018
Ford Kuga (DM2) 03/2013 - 01/2017****/*****
Ford Kuga (DM2) 01/2017 - 12/2019****/*****
Ford Ranger (2AB) 12/2011 - 12/2015
Ford Transit Connect (PJ2) 12/2013 - 05/2018***
Ford Transit Custom (FAC/FDA) 08/2012 - 06/2016**
Ford Transit Tourneo Connect (PJ2) 12/2013 - 05/2018***
Ford Transit Tourneo Custom (FAC/FAD) 08/2012 - 06/2016**
Ford Transit (V363) (FCA/FAD) 08/2014 - 06/2016**
Ford Taurus 2008 - 2012

The following signals are given:

Contact voltage
Relief
Backwards
Speedpulse

Steering wheel remote control

Behind PDC
Warning tones
Vehicle settings are retained

*Vehicles without OEM display LFB Ford various vehicles 24Pin without display > Article: 42sfo015
**Vehicles with Euro 5 emission standard
**Vehicles with Euro 6 emission standard > Article: 42sfo018
***Vehicles with small display
**** Vehicles without OEM touchscreen

Connection cable for the following radio manufacturers:

LFB cable 42s/acv > Alpine jack: 42ctalpinelead
LFB cable 42s/acv > Parrot 4 Pin: 42ctasteroidlead
LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
LFB cable 42s/acv > Clarion connection: 42ctclarionlead
LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
LFB cable 42s/acv > Multilead various devices: 42ctmultilead
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3-0
LFB cable 42s/acv > Multilead various units/Pioneer 2022>: 42ctmultilead5
LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer connection: 42ctpioneerlead
LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> connection: 42ctpioneerlead2
LFB cable 42s/acv > Units with LFB learning function: 42ctsmartlead
LFB cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead




Suitable for:
Ford Ranger 2012-2015
Ford B-Max 2012-2017
Ford Kuga 2013-2019
Ford Fiesta 2012-2017
Ford C-Max 2010-2019
Ford Focus 2011-2018
Ford Transit Custom 2012-2016
Ford Escape 2013-2020
Ford Ecosport 2014-2017
Ford Transit Connect 2013-2018
Ford Taurus 2008-2012

---

Warranty

2 years
