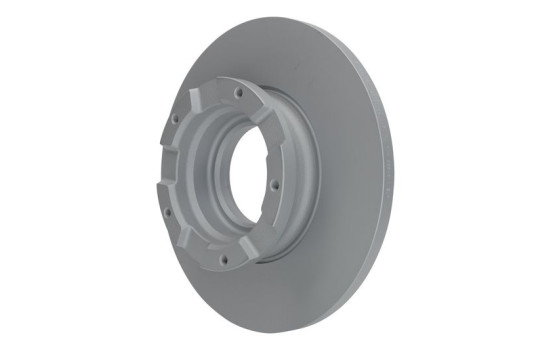

Brake Disc 24.0116-0236.1 ATE
Product number: 1298870
Manufacturer number: 24.0116-0236.1
EAN: 4006633463355
€ 113,15
Incl. VAT
Immediately available
Delivery Tomorrow
Secure payment
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

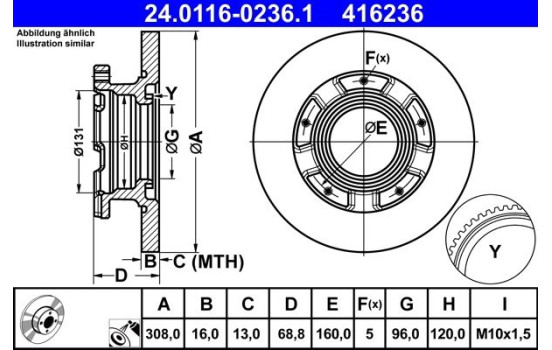

Outer diameter [mm] 308,0 Brake Disc Type Complete Surface Coated Number of Holes 5 Brake pads Exclusive Inner diameter [mm] 120,0 Bolt Hole Circle Ø [mm] 160,0 Centering Diameter [mm] 96,0 Thread Size M10X1,5 Inspection Tag E1 90R-02C0597 / 1089 MAPP code available Warranty 2 years Height [mm] 68,8 Additional information With ABS sensor ring Brake disc thickness (mm) 16,0 Minimum thickness (mm) 13,0 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18396 AP 10075 AP 15089 ASAM 102611 ASHIKA 61-00-0324C ATE 24.0116-0236.1 (this product) BELACO BDS1500 BLUE PRINT ADBP430019 BORG & BECK BBD6073S BOSCH 0 986 479 F62 BRECO BS 6225 BRECO BS 6081 BREMBO 08.C241.20 BREMBO 08.E026.20 CAR 142.1859 COMLINE ADC3038 COMLINE ADC1264 DELPHI BG9198C DON PCD19591 FAST FT31158 FEBI BILSTEIN 171451 FERODO DDF2471 FREMAX BD-5645-KT HELLA 8DD 355 122-761 HELLA PAGID 8DD 355 122-761 JAPANPARTS DP-0324C Manufacturer Manufacturer number Price JAPANPARTS DP0324JM JAPKO 610324C JP GROUP 1563202400 JURATEK FOR204 JURID 563125J KAMOKA 103415 KEY PARTS KBD6073S MAGNETI MARELLI 361302040713 MAGNETI MARELLI 360406189100 METZGER 6110878 MINTEX MDC2692 MOTAQUIP LVBD1665 MOTAQUIP LVBD2054 NATIONAL NBD1856 OPTIMAL BS-1052C QUARO QD9697 ROTINGER RT 12042-GL ROTINGER RT 12042 SKF VKBD 91316 S1 SWAG 33 10 0909 TEXTAR 92273903 TRISCAN 8120 16173C VAICO V25-40217 VALEO 673008 VALEO 672873 ZIMMERMANN 250.5701.20 -
Applicability
FORD TOURNEO CUSTOM TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 1.0 EcoBoost PHEV - 996ccm, 125pk, 92kw - M1FA TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 185pk, 136kw - BCFA, BCFB TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 150pk, 110kw - P0FA TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 185pk, 136kw - BCFC, BCFD TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 150pk, 110kw - P0FB TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.2 TDCi - 2198ccm, 155pk, 114kw - CVFF TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.2 TDCi - 2198ccm, 125pk, 92kw - CYF4, CYFF TOURNEO CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.2 TDCi - 2198ccm, 100pk, 74kw - DRF4, DRFF, DRFG TRANSIT CUSTOM TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 1.0 EcoBoost PHEV - 996ccm, 125pk, 92kw - M1FA TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 185pk, 136kw - BCFA, BCFB TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 150pk, 110kw - P0FA TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 185pk, 136kw - BCFC, BCFD TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 105pk, 77kw - BJFC, BJFD TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 150pk, 110kw - P0FB TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.2 TDCi - 2198ccm, 155pk, 114kw - CVFF TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.2 TDCi - 2198ccm, 125pk, 92kw - CYF4, CYFF TRANSIT CUSTOM V362 Bus (F3) | 09.2012-12.2023 2.2 TDCi - 2198ccm, 100pk, 74kw - DRF4, DRFF, DRFG TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 1.0 EcoBoost PHEV - 996ccm, 125pk, 92kw - M1FA TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 185pk, 136kw - BCFA, BCFB TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 185pk, 136kw - BCFC, BCFD TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.2 TDCi - 2198ccm, 155pk, 114kw - CVFF TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.2 TDCi - 2198ccm, 125pk, 92kw - CYF4, CYFF TRANSIT CUSTOM V362 Van (FY, FZ) | 09.2012-12.2023 2.2 TDCi - 2198ccm, 100pk, 74kw - DRF4, DRFF, DRFG TRANSIT V363 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 165pk, 121kw - BLFB TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 150pk, 110kw - P0FA TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 150pk, 110kw - P0FB TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 165pk, 121kw - BLHA TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 170pk, 125kw - BLHA, YNHA TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 130pk, 96kw - YMHA, BKHA TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFF, DRFG, DRF5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi All-wheel Drive - 2198ccm, 155pk, 114kw - CV24, CVR5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 135pk, 99kw - UHR5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 165pk, 121kw - BLFB TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 155pk, 114kw - N0HA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 160pk, 118kw - N0HA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 165pk, 121kw - BLAA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 130pk, 96kw - YMR6, BKRA, YMRA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 170pk, 125kw - YNR6, BLRA, YNRB TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 165pk, 121kw - BLHA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 105pk, 77kw - YLR6, BJRA, YLRA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 130pk, 96kw - YMR6, YMHA, BKRA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 170pk, 125kw - YNR6, BLHA, BLRA, YNHA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFF, DRFG, DRF5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 155pk, 114kw - CV24, CVR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6, CYR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 E-TRANSIT - 0ccm, 269pk, 198kw - C0RA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 E-TRANSIT - 0ccm, 184pk, 135kw - C2RA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 185pk, 136kw - BCFB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 165pk, 121kw - BLFB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 155pk, 114kw - N0HA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 160pk, 118kw - N0HA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 165pk, 121kw - BLAA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 130pk, 96kw - YMR6, BKRA, YMRA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 170pk, 125kw - YNR6, BLRA, YNRB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 165pk, 121kw - BLHA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 105pk, 77kw - YLR6, BJRA, YLRA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 130pk, 96kw - YMR6, YMHA, BKRA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 170pk, 125kw - YNR6, BLHA, BLRA, YNHA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFF, DRFG, DRF5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 155pk, 114kw - CV24, CVR5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 E-TRANSIT - 0ccm, 269pk, 198kw - C0RA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 E-TRANSIT - 0ccm, 184pk, 135kw - C2RA -
Original part numbers
1764282 FORD 1783910 FORD BK21-2A097-AA FORD BK21-2A097-AB FORD 2040064 FORD BK21-2A097-EB FORD 2409102 FORD BK21-2A097-GB FORD -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
