Zimmermann

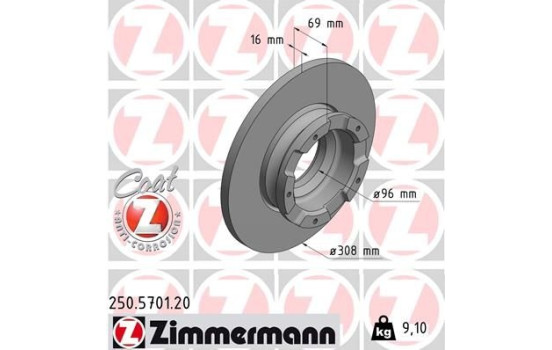

Brake Disc COAT Z 250.5701.20 Zimmermann

Brake Disc COAT Z 250.5701.20 Zimmermann

Product number: 1344311

Manufacturer number: 250.5701.20

EAN: 4250238783244

€ 78,25

Incl. VAT
View product specifications
In stock
Delivery 07-01-2025
Secure payment
  • Free 30 days exchanges
  • Any part, any car
  • Fast delivery
  • Expert support

Ecommerce Europe Trustmark

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

or .

Model

X

Type

X

Searching parts for your car

  • Specifications

    Outer diameter [mm]308
    Rim Hole Number5
    Brake Disc TypeComplete
    SurfaceCoated
    Brake padsExclusive
    Bolt Hole Circle Ø [mm]160
    Centering Diameter [mm]96
    Hole Arrangement / Number5/5
    Registration TypeApproved for vehicles in class M1/N1
    Inspection TagECE R90 APPROVED
    Warranty2 years
    Height [mm]69
    Additional informationWith ABS sensor ring
    Without wheel hub
    Without wheel studs
    Brake disc thickness (mm)16
    Minimum thickness (mm)13
    Weight [kg]9,1

    Similar products of other manufacturers

    Manufacturer Manufacturer number Price
    A.B.S. 18396
    € 56,99
    AP 15089
    AP 10075
    BELACO BDS1561
    BLUE PRINT ADBP430019
    € 57,03
    BORG & BECK BBD6073S
    BOSCH 0 986 479 F62
    € 79,50
    BRAXIS AE0937
    BRECO BS 6225
    BRECO BS 6081
    BREMBO 08.C241.20
    € 62,53
    BREMBO 08.E026.20
    BREMSI CD8471S
    COMLINE ADC3038
    DELPHI BG9198C
    € 82,45
    FAST FT31158
    FEBI BILSTEIN 171451
    € 64,93
    FERODO DDF2471
    € 157,09
    FREMAX BD-5645-KT
    HELLA 8DD 355 126-591
    Manufacturer Manufacturer number Price
    HELLA PAGID 8DD 355 126-591
    € 74,58
    JURATEK FOR204
    JURID 563125J
    KAMOKA 103415
    KEY PARTS KBD6073S
    MAGNETI MARELLI 360406174400
    MAGNETI MARELLI 361302040713
    MAGNETI MARELLI 360406189100
    MAXGEAR 19-4756
    € 70,05
    MEYLE 715 523 0025/PD
    MEYLE 715 523 0025
    MINTEX MDC2810C
    MOTAQUIP LVBD2054
    NATIONAL NBD1856
    ROTINGER RT 12042-GL
    ROTINGER RT 12042
    SWAG 33 10 0909
    TEXTAR 92292603
    € 117,25
    VALEO 673008
    ZIMMERMANN 250.5701.20 (this product)

  • Applicability

    FORD
    TRANSIT V363
    TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD
    TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD
    TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD
    TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD
    TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 185pk, 136kw - BCFB
    TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 130pk, 96kw - BKFC, BKFD
    TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue mHEV - 1995ccm, 170pk, 125kw - BLFC, BLFD
    TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5
    TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6

  • Original part numbers

    BK21-2A097-EB FORD
    BK21-2A097-GB FORD
    2 409 102 FORD
    2 040 064 FORD

  • Manufacturer

    Zimmermann
    Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:

    - Brake pads (Standard and Low-Dust-RD: Z)
    - Standard brake discs
    - Sports brake discs (Brake Z)
    - Grooved brake discs (Black Z)
    - Coated brake discs (Coat Z)
    - Floating brake discs (Formula Z)
    - BMW specific brake discs (Formula F)
    - Calipers
    - Brake shoe sets (standard and Kit Z)
    - Brake drums

  • Delivery time

    Expected delivery date:

    07-01-2025

  • Questions?

    • 1344311. Brake Disc COAT Z

    • In order to help you with your request, we require extra information about your vehicle. We would like to know: brand / model / type, year of manufacture, coach work, fuel, automatic transmission or manual, number of doors, VIN.
