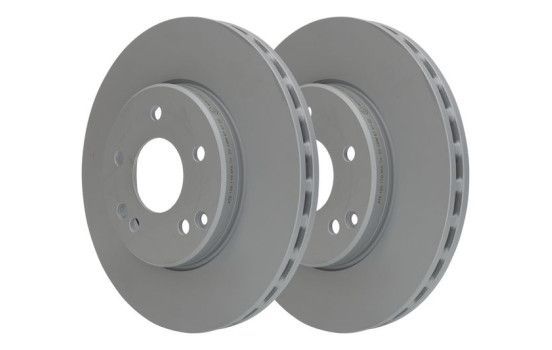

Brake Disc 24.0125-0110.1 ATE
Product number: 0384605
Manufacturer number: 24.0125-0110.1
EAN: 4006633286701
- Free 30 days exchanges
- Any part, any car
- Fast delivery
- Expert span> support
Fit guarantee, show parts suitable for your vehicle.
or .
- Specifications
- Applicability
- Original part numbers
- Manufacturer
- Delivery time
- Reviews 1
- Questions?
- Manual
-
Specifications
Application: brake disc

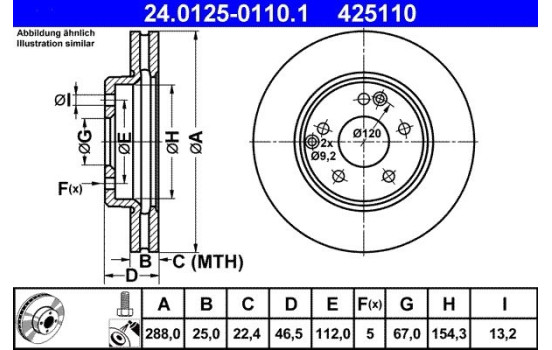

Outer diameter [mm] 288,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Assembly Front Brake pads Exclusive Inner diameter [mm] 154,3 Bolt Hole Circle Ø [mm] 112,0 Centering Diameter [mm] 67,0 Machining Alloyed / High-carbon Inspection Tag E1 90R-02C0115 / 0008 MAPP code available Warranty 2 years Height [mm] 46,5 Additional information With screws Brake disc thickness (mm) 25,0 Minimum thickness (mm) 22,4 Hole diameter [mm] 13,2 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 16448 ABE C3M010ABE AP X 24903 AP 24905 V AP 24903 X AP 24678 V AP 24903 AP 24903 V AP 24678 E AP 24905 X AP X 24678 ASHIKA 60-00-0510C ASHUKI P330-020 ATE 24.0125-0110.1 (this product) BARUM BAR25110 BELACO BDS1054HC BLUE PRINT ADU174311 BORG & BECK BBD4470 BORG & BECK BBD4141 BOSCH 0 986 478 624 BRAXIS AE0105 BRECK BR 349 VA100 BRECO BV 8219 BRECO BV 8402 BRECO BS 8219 BRECO BV 8401 BRECO BS 8402 BREMBO 09.6845.11 BREMBO 09.8304.1X BREMBO 09.6845.14 BREMBO 09.8411.10 BREMBO 09.8411.1X BREMBO 09.6845.75 BREMBO 09.8411.11 BREMBO 09.8411.75 BREMBO 09.8304.11 BREMSI CD7135V BSG BSG 60-210-033 CAR 142.021 CAR HPD 021 CHAMPION 562034CH CHAMPION 562013CH CIFAM 800-701C COMLINE ADC1603V COMLINE ADC1669V DELPHI BG3240C DENCKERMANN B130354 DON PCD10232 Dr!ve+ DP1010.11.0833 Dr!ve+ DP1010.11.1717 EUROBRAKE 5815203332 EUROBRAKE 5815313341 EUROBRAKE 5815313332 EUROBRAKE 5815203341 FEBI BILSTEIN 18886 FEBI BILSTEIN 04631 FERODO DDF1135 FERODO DDF1135C FERODO DDF1136C FI.BA FBD116 FREMAX BD-0411 FREMAX BD-0410 FRIGAIR DC06.101 FTE BS4539 FTE 9082067 FTE 9072018 FTE BS4539B GALFER B1.G225-0110.1 GIRLING 6041805 GIRLING 6041801 HELLA 8DD 355 127-551 HELLA 8DD 355 107-481 HELLA PAGID 8DD 355 127-551 HELLA PAGID 8DD 355 107-481 ICER 78BD0410-2 JAPANPARTS DI0510JM JAPANPARTS DI-0510C JAPKO 600510C JP GROUP 1363106600 JURATEK MER148 JURATEK MER145 JURID 562013J JURID 562013JC KAMOKA 1031634 KAWE 6556 10 KAWE BDRS1314.25 KAWE 6751 10 KEY PARTS KBD4470 KLAXCAR FRANCE 25044z KRAFT AUTOMOTIVE 6041170 LEMFÖRDER 30971 01 LORO 231-03-065 LPR M2601VR LYNXauto BN-1081 MAGNETI MARELLI 361302040652 MAGNETI MARELLI 361302040194 Manufacturer Manufacturer number Price MAGNETI MARELLI 360406006301 MAGNETI MARELLI 361302040364 MAGNETI MARELLI 360406006401 MAGNETI MARELLI 360406006905 MAGNETI MARELLI 360406006902 MAGNETI MARELLI 361302040404 MAGNETI MARELLI 360406006900 MAGNETI MARELLI 360406006300 MAGNETI MARELLI 360406006901 MAGNETI MARELLI 360406006305 MAPCO 15795C MAPCO 15795 MASTER-SPORT 24012501101-SET-MSP MASTER-SPORT 24012501101PR-PCS-MSP MASTER-SPORT 24012501101PR-SET-MS MASTER-SPORT 24012501101-SET-MS MASTER-SPORT 24012501101-PCS-MSP MASTER-SPORT 24012501101-PCS-MS MASTER-SPORT 24012501101PR-PCS-MS MAXGEAR 19-0725SPORT MAXGEAR 19-0725 MAXGEAR 19-0725MAX MAXTECH 873548 METELLI 23-0701C METZGER 6110024 MEYLE 083 521 2035/PD MEYLE 015 521 2035 MEYLE 083 521 2044/PD MINTEX MDC852C MINTEX MDC852 MOTAQUIP LVBD829 MOTAQUIP LVBE375 NATIONAL NBD783 NK 313332 NK 203332 NK 313341 NK 203341 OPTIMAL BS-7400 OPTIMAL BS-7400C OPTIMAL BS-7400HC OPTIMAL BS-4950 Omnicraft 2133986 Omnicraft 2134451 PILENGA V290 PILENGA V196 PROTECHNIC PRD2632 PROTECHNIC PRD2179 QUARO QD3196 QUARO QD3196HC QUINTON HAZELL BDC4539 R BRAKE 78RBD20410 RAICAM RD00449 REMSA 6556.10 REMSA 6751.10 ROADHOUSE 6495.10 ROADHOUSE 6556.10 ROADHOUSE 6751.10 ROTINGER RT 2474-GL T9 ROTINGER RT 2912-GL T3 ROTINGER RT 2474-GL T6 ROTINGER RT 2474-GL T5 ROTINGER RT 2474-GL T3 ROTINGER RT 2474 ROTINGER RT 2474-GL ROTINGER RT 2912-GL ROTINGER RT 2912-GL T6 ROTINGER RT 2912 ROTINGER RT 2912-GL T5 ROTINGER RT 2912-GL T9 SASIC 6106109 SKF VKBD 80020 V2 SKF VKBD 80104 V2 STELLOX 6020-3332V-SX STELLOX 6020-3332VK-SX SWAG 10 91 8886 TEXTAR 92105905 TOPRAN 400 854 TOPRAN 400 856 TRISCAN 8120 23133C TRUCKTEC AUTOMOTIVE 02.35.027 TRUSTING DF827 TRW DF2779 TRW DF4180 VAICO V30-80034 VAICO V30-80042 VALEO 186467 VALEO 186864 VALEO 672922 WAGNER WGR1135-1 WOKING D6495.10 WOKING D6556.10 WOKING D6751.10 ZIMMERMANN 400.1435.53 ZIMMERMANN 400.1435.52 ZIMMERMANN 400.1435.20 -
Applicability
MERCEDES-BENZ C-CLASS C-CLASS (W202) | 03.1993-05.2000 C 200 Kompressor (202.025) - 1998ccm, 180pk, 132kw - M 111.944 C-CLASS (W202) | 03.1993-05.2000 C 200 Kompressor (202.025) - 1998ccm, 192pk, 141kw - M 111.944 C-CLASS (W202) | 03.1993-05.2000 C 230 Kompressor (202.024) - 2295ccm, 193pk, 142kw - M 111.975 C-CLASS (W202) | 03.1993-05.2000 C 240 (202.026) - 2398ccm, 170pk, 125kw - M 112.910 C-CLASS (W202) | 03.1993-05.2000 C 250 Turbo-D (202.128) - 2497ccm, 150pk, 110kw - OM 605.960 C-CLASS (W202) | 03.1993-05.2000 C 280 (202.028) - 2799ccm, 193pk, 142kw - M 104.941 C-CLASS (W202) | 03.1993-05.2000 C 280 (202.029) - 2799ccm, 197pk, 145kw - M 112.920 C-CLASS (W203) | 05.2000-02.2007 C 180 (203.035) - 1998ccm, 129pk, 95kw - M 111.951 C-CLASS (W203) | 05.2000-02.2007 C 180 Kompressor (203.046) - 1796ccm, 143pk, 105kw - M 271.946 C-CLASS (W203) | 05.2000-02.2007 C 200 CDI (203.004) - 2148ccm, 102pk, 75kw - OM 611.962 C-CLASS (W203) | 05.2000-02.2007 C 200 CDI (203.004) - 2148ccm, 116pk, 85kw - OM 611.962 C-CLASS (W203) | 05.2000-02.2007 C 200 CDI (203.007) - 2148ccm, 122pk, 90kw - OM 646.963, OM 646.962 C-CLASS (W203) | 05.2000-02.2007 C 200 CGI Kompressor (203.043) - 1796ccm, 170pk, 125kw - M 271.942 C-CLASS (W203) | 05.2000-02.2007 C 200 Kompressor (203.042) - 1796ccm, 163pk, 120kw - M 271.940 C-CLASS (W203) | 05.2000-02.2007 C 200 Kompressor (203.045) - 1998ccm, 163pk, 120kw - M 111.955 C-CLASS (W203) | 05.2000-02.2007 C 220 CDI (203.006) - 2148ccm, 136pk, 100kw - OM 611.962 C-CLASS (W203) | 05.2000-02.2007 C 220 CDI (203.006, 203.008) - 2148ccm, 143pk, 105kw - OM 646.963, OM 611.962 C-CLASS (W203) | 05.2000-02.2007 C 220 CDI (203.008) - 2148ccm, 150pk, 110kw - OM 646.963 C-CLASS Coupe C-CLASS Coupe (CL203) | 03.2001-05.2008 C 160 Kompressor (203.730) - 1796ccm, 122pk, 90kw - M 271.921 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 180 (203.735) - 1998ccm, 129pk, 95kw - M 111.951 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 180 Kompressor (203.746) - 1796ccm, 143pk, 105kw - M 271.946 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 200 CDI (203.707) - 2148ccm, 122pk, 90kw - OM 646.962 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 200 CGI Kompressor (203.743) - 1796ccm, 170pk, 125kw - M 271.942 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 200 Kompressor (203.742) - 1796ccm, 163pk, 120kw - M 271.940 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 200 Kompressor (203.745) - 1998ccm, 163pk, 120kw - M 111.955 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 220 - 1796ccm, 163pk, 120kw - M 271.940 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 220 CDI - 2148ccm, 136pk, 100kw - OM 611.962 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 220 CDI (203.706) - 2148ccm, 143pk, 105kw - OM 611.962 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 220 CDI (203.708) - 2148ccm, 150pk, 110kw - OM 646.963 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 230 Kompressor (203.740) - 1796ccm, 192pk, 141kw - M 271.948 C-CLASS Coupe (CL203) | 03.2001-05.2008 C 230 Kompressor (203.747) - 2295ccm, 197pk, 145kw - M 111.981 C-CLASS T-Model C-CLASS T-Model (S202) | 06.1996-03.2001 C 200 T (202.080) - 1998ccm, 136pk, 100kw - M 111.941, M 111.945 C-CLASS T-Model (S202) | 06.1996-03.2001 C 200 T Kompressor (202.082) - 1998ccm, 192pk, 141kw - M 111.944 C-CLASS T-Model (S202) | 06.1996-03.2001 C 200 T Kompressor (202.087) - 1998ccm, 163pk, 120kw - M 111.956 C-CLASS T-Model (S202) | 06.1996-03.2001 C 230 T Kompressor (202.085) - 2295ccm, 193pk, 142kw - M 111.975 C-CLASS T-Model (S202) | 06.1996-03.2001 C 240 T (202.086) - 2398ccm, 170pk, 125kw - M 112.910 C-CLASS T-Model (S202) | 06.1996-03.2001 C 240 T (202.088) - 2597ccm, 170pk, 125kw - M 112.915 C-CLASS T-Model (S202) | 06.1996-03.2001 C 250 T Turbo-D (202.188) - 2497ccm, 150pk, 110kw - OM 605.960 C-CLASS T-Model (S202) | 06.1996-03.2001 C 280 T (202.089) - 2799ccm, 197pk, 145kw - M 112.920 C-CLASS T-Model (S203) | 03.2001-08.2007 C 180 (203.235) - 1998ccm, 129pk, 95kw - M 111.951 C-CLASS T-Model (S203) | 03.2001-08.2007 C 180 Kompressor (203.246) - 1796ccm, 143pk, 105kw - M 271.946 C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 CDI (203.204) - 2148ccm, 102pk, 75kw - OM 611.962 C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 CDI (203.204) - 2148ccm, 116pk, 85kw - OM 611.962 C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 CDI (203.207) - 2148ccm, 122pk, 90kw - OM 646.963, OM 646.962 C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 CGI Kompressor (203.243) - 1796ccm, 170pk, 125kw - M 271.942 C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 Kompressor (203.242) - 1796ccm, 163pk, 120kw - M 271.940 C-CLASS T-Model (S203) | 03.2001-08.2007 C 200 Kompressor (203.245) - 1998ccm, 163pk, 120kw - M 111.955 C-CLASS T-Model (S203) | 03.2001-08.2007 C 220 CDI (203.206, 203.208) - 2148ccm, 143pk, 105kw - OM 646.963, OM 611.962 C-CLASS T-Model (S203) | 03.2001-08.2007 C 220 CDI (203.208) - 2148ccm, 136pk, 100kw - OM 646.963 C-CLASS T-Model (S203) | 03.2001-08.2007 C 220 CDI (203.208) - 2148ccm, 150pk, 110kw - OM 646.963 CLC-CLASS CLC-CLASS (CL203) | 05.2008-06.2011 CLC 160 (203.731) - 1597ccm, 129pk, 95kw - M 271.911 CLC-CLASS (CL203) | 05.2008-06.2011 CLC 180 Kompressor (203.746) - 1796ccm, 143pk, 105kw - M 271.946 CLC-CLASS (CL203) | 05.2008-06.2011 CLC 200 CDI (203.707) - 2148ccm, 122pk, 90kw - OM 646.962 CLC-CLASS (CL203) | 05.2008-06.2011 CLC 220 CDI (203.708) - 2148ccm, 150pk, 110kw - OM 646.963 CLK CLK (C208) | 06.1997-12.2003 CLK 200 (208.335) - 1998ccm, 136pk, 100kw - M 111.945 CLK (C208) | 06.1997-12.2003 CLK 200 Kompressor (208.344) - 1998ccm, 163pk, 120kw - M 111.956 CLK (C208) | 06.1997-12.2003 CLK 200 Kompressor (208.345) - 1998ccm, 192pk, 141kw - M 111.944 CLK (C208) | 06.1997-12.2003 CLK 230 Kompressor (208.347) - 2295ccm, 193pk, 142kw - M 111.975, M 111.973 CLK (C208) | 06.1997-12.2003 CLK 230 Kompressor (208.348) - 2295ccm, 197pk, 145kw - M 111.982 CLK (C209) | 06.2002-05.2009 CLK 200 CGI (209.343) - 1796ccm, 170pk, 125kw - M 271.942 CLK (C209) | 06.2002-05.2009 CLK 200 Kompressor (209.342) - 1796ccm, 163pk, 120kw - M 271.940 CLK (C209) | 06.2002-05.2009 CLK 220 CDI (209.308) - 2148ccm, 136pk, 100kw - OM 646.966 CLK (C209) | 06.2002-05.2009 CLK 220 CDI (209.308) - 2148ccm, 150pk, 110kw - OM 646.966 CLK Convertible CLK Convertible (A208) | 03.1998-03.2002 CLK 200 (208.435) - 1998ccm, 136pk, 100kw - M 111.941, M 111.945 CLK Convertible (A209) | 06.2002-03.2010 CLK 200 CGI (209.343) - 1796ccm, 170pk, 125kw - M 271.942 E-CLASS E-CLASS (W210) | 06.1995-03.2002 E 200 (210.035) - 1998ccm, 136pk, 100kw - M 111.942 E-CLASS (W210) | 06.1995-03.2002 E 200 CDI (210.007) - 2148ccm, 116pk, 85kw - OM 611.961 E-CLASS (W210) | 06.1995-03.2002 E 200 CDI (210.007) - 2151ccm, 102pk, 75kw - OM 611.961 E-CLASS (W210) | 06.1995-03.2002 E 200 D (210.003) - 1997ccm, 88pk, 65kw - OM 604.917 E-CLASS (W210) | 06.1995-03.2002 E 200 Kompressor (210.048) - 1998ccm, 163pk, 120kw - M 111.957 E-CLASS (W210) | 06.1995-03.2002 E 220 CDI (210.006) - 2148ccm, 143pk, 105kw - OM 611.961 E-CLASS (W210) | 06.1995-03.2002 E 220 CDI (210.006) - 2151ccm, 125pk, 92kw - OM 611.961 E-CLASS (W210) | 06.1995-03.2002 E 220 D - 2155ccm, 75pk, 55kw - OM 604.912 E-CLASS (W210) | 06.1995-03.2002 E 220 D (210.004) - 2155ccm, 95pk, 70kw - OM 604.912 E-CLASS (W210) | 06.1995-03.2002 E 230 (210.037) - 2295ccm, 150pk, 110kw - M 111.970 E-CLASS (W210) | 06.1995-03.2002 E 240 (210.061) - 2398ccm, 170pk, 125kw - M 112.911 E-CLASS (W210) | 06.1995-03.2002 E 240 (210.062) - 2597ccm, 170pk, 125kw - M 112.914 E-CLASS (W210) | 06.1995-03.2002 E 250 D (210.010) - 2497ccm, 113pk, 83kw - OM 605.912 E-CLASS (W210) | 06.1995-03.2002 E 250 Turbo-D (210.015) - 2497ccm, 150pk, 110kw - OM 605.962 E-CLASS (W210) | 06.1995-03.2002 E 290 Turbo-D (210.017) - 2874ccm, 129pk, 95kw - OM 602.982 E-CLASS (W210) | 06.1995-03.2002 E 300 D (210.020) - 2996ccm, 136pk, 100kw - OM 606.912 E-CLASS T-Model E-CLASS T-Model (S210) | 06.1996-03.2003 E 200 T (210.235) - 1998ccm, 136pk, 100kw - M 111.942 E-CLASS T-Model (S210) | 06.1996-03.2003 E 200 T Kompressor (210.248) - 1998ccm, 163pk, 120kw - M 111.957 E-CLASS T-Model (S210) | 06.1996-03.2003 E 220 T CDI (210.206) - 2148ccm, 136pk, 100kw - OM 611.961 E-CLASS T-Model (S210) | 06.1996-03.2003 E 220 T CDI (210.206) - 2148ccm, 143pk, 105kw - OM 611.961 E-CLASS T-Model (S210) | 06.1996-03.2003 E 220 T CDI (210.206) - 2151ccm, 125pk, 92kw - OM 611.961 E-CLASS T-Model (S210) | 06.1996-03.2003 E 230 T (210.237) - 2295ccm, 150pk, 110kw - M 111.970 E-CLASS T-Model (S210) | 06.1996-03.2003 E 240 T (210.261) - 2398ccm, 170pk, 125kw - M 112.911 E-CLASS T-Model (S210) | 06.1996-03.2003 E 240 T (210.262) - 2597ccm, 170pk, 125kw - M 112.914 E-CLASS T-Model (S210) | 06.1996-03.2003 E 250 T D (210.210) - 2497ccm, 113pk, 83kw - OM 605.912 E-CLASS T-Model (S210) | 06.1996-03.2003 E 250 T Turbo-D (210.215) - 2497ccm, 150pk, 110kw - OM 605.962 E-CLASS T-Model (S210) | 06.1996-03.2003 E 290 T Turbo-D (210.217) - 2874ccm, 129pk, 95kw - OM 602.982 SLK SLK (R170) | 09.1996-04.2004 200 (170.435) - 1998ccm, 136pk, 100kw - M 111.946 SLK (R170) | 09.1996-04.2004 200 Kompressor (170.444) - 1998ccm, 163pk, 120kw - M 111.958 SLK (R170) | 09.1996-04.2004 200 Kompressor (170.445) - 1998ccm, 192pk, 141kw - M 111.943 SLK (R170) | 09.1996-04.2004 230 Kompressor (170.447) - 2295ccm, 193pk, 142kw - M 111.973 SLK (R170) | 09.1996-04.2004 230 Kompressor (170.449) - 2295ccm, 197pk, 145kw - M 111.983 SLK (R171) | 03.2004-12.2011 200 Kompressor (171.442) - 1796ccm, 163pk, 120kw - M 271.944 -
Original part numbers
0 5098 063AA CHRYSLER 5098 063AA CHRYSLER 203 421 03 12 MERCEDES-BENZ 210 421 07 12 MERCEDES-BENZ 210 421 24 12 MERCEDES-BENZ A 203 421 03 12 MERCEDES-BENZ A 210 421 07 12 MERCEDES-BENZ A 210 421 24 12 MERCEDES-BENZ -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
Delivery time
Expected delivery date:
Day after tomorrow
-
Reviews 1
-
-no further explanation given-
-
-
Questions?
-
Manual
