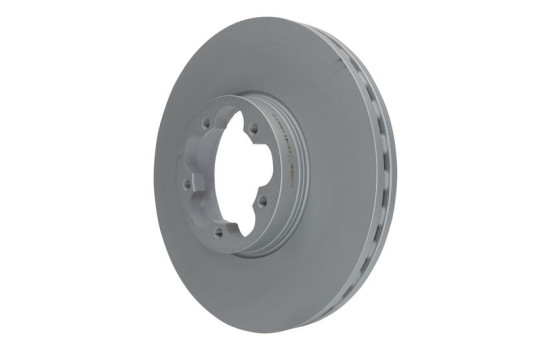

Brake Disc 24.0131-0100.1 ATE
Product number: 0850090
Manufacturer number: 24.0131-0100.1
EAN: 4006633427173
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

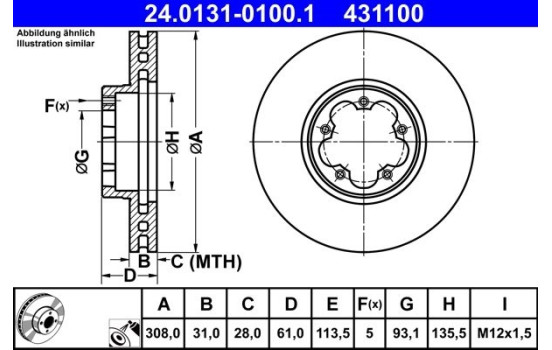

Outer diameter [mm] 308,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Brake pads Exclusive Inner diameter [mm] 135,5 Bolt Hole Circle Ø [mm] 113,5 Centering Diameter [mm] 93,1 Thread Size M12X1,5 Inspection Tag E1 90R-02C0115 / 1049 MAPP code available Warranty 2 years Height [mm] 61,0 Brake disc thickness (mm) 31,0 Minimum thickness (mm) 28,0 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 18470 ABE C3G057ABE-P ABE C3G057ABE AP 25606 V ASHIKA 60-00-0328C ATE 24.0131-0100.1 (this product) BELACO BDS1474 BLUE PRINT ADF124353 BORG & BECK BBD6074S BOSCH 0 986 479 C99 BRECO BV 9216 BREMBO 09.C644.11 BREMSI CD8468V CAR 142.2086 CIFAM 800-1801C COMLINE ADC1266V DELPHI BG9142C DON PCD19611 FAST FT31009 FEBI BILSTEIN 108689 FERODO DDF2468-1 FREMAX BD-6548 FTE BS7834 FTE 9071223 GIRLING 6069215 HELLA 8DD 355 122-801 HELLA PAGID 8DD 355 122-801 JAPANPARTS DI-0328C JAPANPARTS DI0328JM JAPKO 600328C JP GROUP 1563106300 JURATEK FOR186 Manufacturer Manufacturer number Price JURID 563122J-1 KAMOKA 103632 KAVO PARTS BR-10124-C KEY PARTS KBD6074S MAGNETI MARELLI 361302040663 MAXTECH 827056 METELLI 23-1801C METZGER 6110767 MEYLE 715 521 0042/PD MINTEX MDC2696 MOTAQUIP LVBD1741 NATIONAL NBD1854 OPTIMAL BS-9284HC QUARO QD8785 QUINTON HAZELL BDC6043 RAICAM RD01464 ROTINGER RT 21690-GL T3 ROTINGER RT 21690-GL ROTINGER RT 21690-GL T9 ROTINGER RT 21690-GL T6 ROTINGER RT 21690-GL T5 ROTINGER RT 21690 SKF VKBD 81097 V1 STELLOX 6021-0065V-SX SWAG 33 10 0168 TEXTAR 92274303 TRISCAN 8120 16184C TRUSTING DF1801 TRW DF6921S VAICO V25-80032 ZIMMERMANN 250.1380.20 -
Applicability
FORD TRANSIT V363 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFF, DRFG, DRF5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi All-wheel Drive - 2198ccm, 155pk, 114kw - CV24, CVR5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 135pk, 99kw - UHR5 TRANSIT V363 Bus (FAD, FBD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 130pk, 96kw - YMR6, BKRA, YMRA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 170pk, 125kw - YNR6, BLRA, YNRB TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 105pk, 77kw - YLR6, BJRA, YLRA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 130pk, 96kw - YMR6, YMHA, BKRA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 170pk, 125kw - YNR6, BLHA, BLRA, YNHA TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFF, DRFG, DRF5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 155pk, 114kw - CV24, CVR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6, CYR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 135pk, 99kw - UHR5 TRANSIT V363 Platform/Chassis (FED, FFD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 105pk, 77kw - YLF6, YLFS, BJFA, BJFB, YLFA, YLFB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 130pk, 96kw - YMF6, YMFS, BKFA, BKFB, YMFA, YMFB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue - 1995ccm, 170pk, 125kw - YNF6, YNFS, BLFA, BLFB, YNFA, YNFB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue 4x4 - 1995ccm, 170pk, 125kw - YNR6, BLRA, YNRB TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 105pk, 77kw - YLR6, BJRA, YLRA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 130pk, 96kw - YMR6, YMHA, BKRA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.0 EcoBlue RWD - 1995ccm, 170pk, 125kw - YNR6, BLHA, BLRA, YNHA TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 155pk, 114kw - CVF5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 125pk, 92kw - CY14, CYF5, CYFG, USF6 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi - 2198ccm, 100pk, 74kw - DRFF, DRFG, DRF5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 155pk, 114kw - CV24, CVR5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi 4x4 - 2198ccm, 125pk, 92kw - CY24, CYR5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 155pk, 114kw - CV24, CVR5, UYR6 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 100pk, 74kw - DRR5 TRANSIT V363 Van (FCD, FDD) | 08.2013-06.2024 2.2 TDCi RWD - 2198ccm, 125pk, 92kw - USR6, CYR5 -
Original part numbers
BK31-1125-AC FORD BK31-1125-AB FORD 1822205 FORD 1812200 FORD -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
