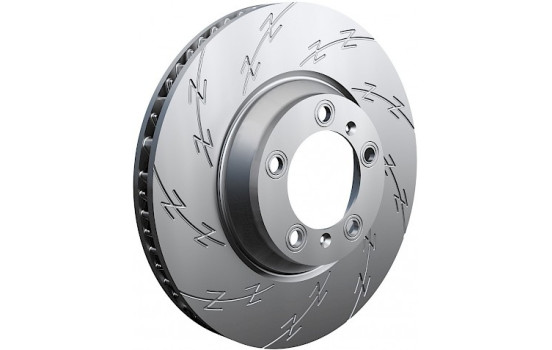

Brake Disc BLACK Z 400.3603.53 Zimmermann
Product number: 0848286
Manufacturer number: 400.3603.53
EAN: 4250238777830
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Provide your car with sportier performance and a sportier appearance with the Zimmermann Black Z brake discs.
These brake discs are equipped with a patented grooved brake disc design, which is directly derived from racing experiences. The grooved design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.
Grooved design:
- Grooves for better removal of gases
- Rust-resistant coating
Key benefits:
- German quality
- Less? Brake fading?
- Even wear pattern on brake pads
Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.
The article is delivered in sets (2pcs)
(1x right / 1x left side).

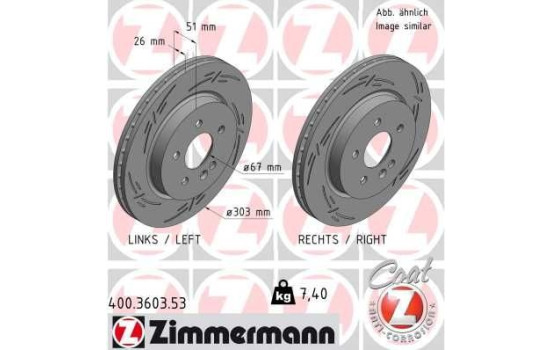

Outer diameter [mm] 303 Rim Hole Number 5 Brake Disc Type Internal ventilation Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 112 Brake Disc Type Notched Centering Diameter [mm] 67 Hole Arrangement / Number 6/5 Machining High-carbon Inspection Tag ECE R90 APPROVED Directional Warranty 2 years Height [mm] 51 Brake disc thickness (mm) 26 Minimum thickness (mm) 23 Weight [kg] 7,38 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17109 AP 24767 AP 24767 V BELACO BDS1422HC BLUE PRINT ADU174339 BORG & BECK BBD4140 BOSCH 0 986 478 468 BRECO BV 8352 BRECO BS 8352 BREMBO 09.7823.11 BREMBO 09.7823.10 BREMSI CD7036V BSG BSG 60-210-058 CHAMPION 562099CH CIFAM 800-700C DELPHI BG3397 Dr!ve+ DP1010.11.1242 FEBI BILSTEIN 21921 FERODO DDF1036C FI.BA FBD303 HELLA 8DD 355 129-751 HELLA PAGID 8DD 355 129-751 ICER 78BD4210-2 Manufacturer Manufacturer number Price JURID 562099JC MAGNETI MARELLI 361302040396 METELLI 23-0700C METZGER 6110480 MEYLE 083 521 2041/PD MEYLE 015 521 2041 MINTEX MDC1359 QUARO QD2016 R BRAKE 78RBD24210 ROTINGER RT 2712-GL T3 ROTINGER RT 2712-GL T5 ROTINGER RT 2712-GL T6 ROTINGER RT 2712 ROTINGER RT 2712-GL ROTINGER RT 2712-GL T9 SWAG 10 92 1921 TEXTAR 92089905 TRUSTING DF535 VALEO 197237 ZIMMERMANN 400.3603.20 ZIMMERMANN 400.3603.52 ZIMMERMANN 400.3603.53 (this product) -
Applicability
MERCEDES-BENZ M-CLASS M-CLASS (W163) | 02.1998-06.2005 ML 230 (163.136) - 2295ccm, 150pk, 110kw - M 111.977 M-CLASS (W163) | 02.1998-06.2005 ML 270 CDI (163.113) - 2685ccm, 163pk, 120kw - OM 612.963 M-CLASS (W163) | 02.1998-06.2005 ML 320 (163.154) - 3199ccm, 218pk, 160kw - M 112.942 -
Original part numbers
163 421 0012 MERCEDES-BENZ 163 421 0212 MERCEDES-BENZ 163 421 0412 MERCEDES-BENZ A 163 421 0412 MERCEDES-BENZ A 163 421 0012 MERCEDES-BENZ A 163 421 0212 MERCEDES-BENZ -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
