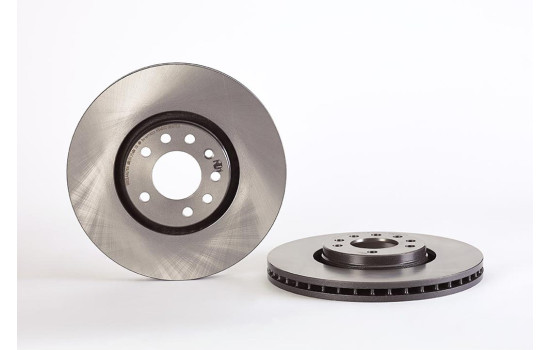

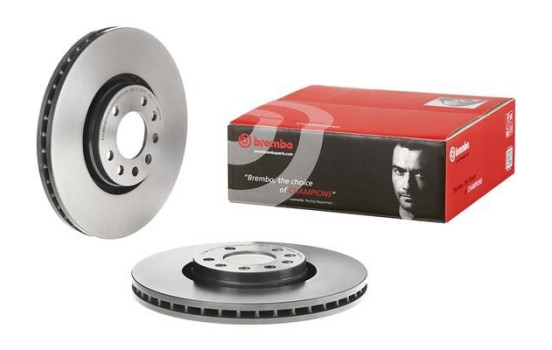

Brake Disc COATED DISC LINE 09.9177.11 Brembo
Product number: 0426594
Manufacturer number: 09.9177.11
EAN: 8020584016916
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

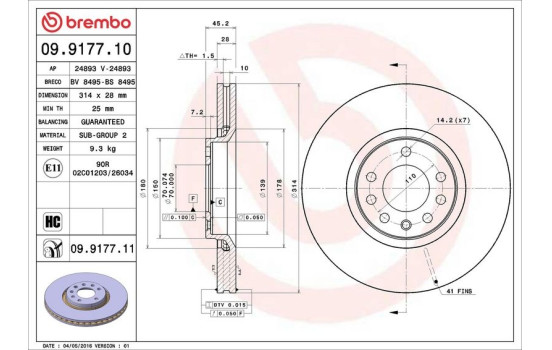

Outer diameter [mm] 314 Brake Disc Type Internally Vented Internal ventilation Surface Anticorrosion coating Coated Number of Holes 5 Brake pads Exclusive Centering Diameter [mm] 70 Machining High-carbon Torque [Nm] 110 Guarantee 2 years Height [mm] 45 Brake disc thickness (mm) 28 Minimum thickness (mm) 25 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17539 A.B.S. 09.9177.11 AP 24893 AP 24893 V ASHIKA 60-00-0417C ATE 24.0128-0164.1 BELACO BDS1890 BLUE PRINT ADA104334 BORG & BECK BBD4395 BOSCH 0 986 479 143 BRECO BS 8495 BRECO BV 8495 BREMBO 09.9177.11 (this product) BREMBO 09.9177.11 BREMBO 09.9177.10 BREMSI CD7237V CIFAM 800-1353C COMLINE ADC1135V DELPHI BG3973 DENCKERMANN B130451 DJ PARTS BD2301 DON PCD13622 EUROBRAKE 5815313653 EUROBRAKE 5815203653 FEBI BILSTEIN 44130 FERODO DDF1237C-1 FTE 9071103 FTE BS5496 GALFER B1.G228-0164.1 GIRLING 6045491 HELLA 8DD 355 127-851 HELLA PAGID 8DD 355 127-851 ICER 78BD9005-2 JAPANPARTS DI-0417C JAPANPARTS DI0417JM JAPKO 600417C JP GROUP 1263100500 JURID 562390JC-1 KAWE 6944 10 KRAFT AUTOMOTIVE 6041733 LPR O1008V LYNXauto BN-1861 MAGNETI MARELLI 360406008501 MAGNETI MARELLI 360406008500 MAPCO 25703 MASTER-SPORT 24012801641-PCS-MSP MASTER-SPORT 24012801641PR-PCS-MS Manufacturer Manufacturer number Price MASTER-SPORT 24012801641-SET-MSP MASTER-SPORT 24012801641-SET-MS MASTER-SPORT 24012801641PR-PCS-MSP MASTER-SPORT 24012801641-PCS-MS MAXGEAR 19-1318SPORT MAXGEAR 19-1318 MAXTECH 871552 METELLI 23-1353C METZGER 6110251 MEYLE 615 521 0008/PD MINTEX MDC1674 MOTAQUIP LVBD1059Z NK 313653 NK 203653 OPTIMAL BS-7912C OPTIMAL BS-7912HC PILENGA V208 QUARO QD4033 R BRAKE 78RBD29005 RAICAM RD00614 REMSA 6944.10 ROADHOUSE 6944.10 ROTINGER RT 20273 ROTINGER RT 20273-GL ROTINGER RT 20273-GL T5 ROTINGER RT 20273HP-GL T9 ROTINGER RT 20273HP-GL T5 ROTINGER RT 20273HP-GL T3 ROTINGER RT 20273HP-GL T6 ROTINGER RT 20273-GL T6 ROTINGER RT 20273HP ROTINGER RT 20273HP-GL ROTINGER RT 20273-GL T3 ROTINGER RT 20273-GL T9 SKF VKBD 80492 V1 STELLOX 6020-1374V-SX SWAG 40 94 4130 TEXTAR 92118803 TRISCAN 8120 24144C TRUSTING DF398 TRW DF4549 VALEO 197361 WOKING D6944.10 ZIMMERMANN 430.1499.53 ZIMMERMANN 430.1499.52 ZIMMERMANN 430.1499.20 -
Applicability
CADILLAC BLS BLS | 04.2006-12.2010 2.8 T - 2792ccm, 255pk, 188kw - B284L BLS | 04.2006-12.2010 2.8 T - 2792ccm, 280pk, 206kw - B284R, Z 28 NET BLS | 04.2006-12.2010 2.8 T AWD - 2792ccm, 280pk, 206kw - Z 28 NET BLS Wagon BLS Wagon | 12.2007-12.2010 2.8 T - 2792ccm, 280pk, 206kw - B284R BLS Wagon | 12.2007-12.2010 2.8 T - 2792ccm, 255pk, 188kw - Z 28 NET BLS Wagon | 12.2007-12.2010 2.8 T AWD - 2792ccm, 280pk, 206kw - Z 28 NET OPEL SIGNUM Hatchback SIGNUM Hatchback (Z03) | 05.2003-12.2008 2.8 V6 Turbo (F48) - 2792ccm, 230pk, 169kw - Z 28 NEL SIGNUM Hatchback (Z03) | 05.2003-12.2008 2.8 V6 Turbo (F48) - 2792ccm, 250pk, 184kw - Z 28 NET SIGNUM Hatchback (Z03) | 05.2003-12.2008 3.0 V6 CDTI (F48) - 2958ccm, 177pk, 130kw - Y 30 DT SIGNUM Hatchback (Z03) | 05.2003-12.2008 3.0 V6 CDTI (F48) - 2958ccm, 184pk, 135kw - Z 30 DT SIGNUM Hatchback (Z03) | 05.2003-12.2008 3.2 V6 (F48) - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA C VECTRA C (Z02) | 04.2002-01.2009 2.8 V6 Turbo (F69) - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA C (Z02) | 04.2002-01.2009 2.8 V6 Turbo (F69) - 2792ccm, 250pk, 184kw - Z 28 NET VECTRA C (Z02) | 04.2002-01.2009 2.8 V6 Turbo (F69) - 2792ccm, 255pk, 188kw - Z 28 NET VECTRA C (Z02) | 04.2002-01.2009 3.0 CDTI (F69) - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA C (Z02) | 04.2002-01.2009 3.0 CDTi (F69) - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA C (Z02) | 04.2002-01.2009 3.2 V6 (F69) - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA C Estate (Z02) | 10.2003-01.2009 2.8 V6 Turbo (F35) - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA C Estate (Z02) | 10.2003-01.2009 2.8 V6 Turbo (F35) - 2792ccm, 250pk, 184kw - Z 28 NET VECTRA C Estate (Z02) | 10.2003-01.2009 2.8 V6 Turbo (F35) - 2792ccm, 255pk, 188kw - Z 28 NET VECTRA C Estate (Z02) | 10.2003-01.2009 3.0 V6 CDTI (F35) - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA C Estate (Z02) | 10.2003-01.2009 3.0 V6 CDTI (F35) - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA C Estate (Z02) | 10.2003-01.2009 3.2 V6 (F35) - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA C GTS (Z02) | 08.2002-01.2009 2.8 V6 Turbo (F68) - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA C GTS (Z02) | 08.2002-01.2009 2.8 V6 Turbo (F68) - 2792ccm, 250pk, 184kw - Z 28 NET VECTRA C GTS (Z02) | 08.2002-01.2009 2.8 V6 Turbo (F68) - 2792ccm, 255pk, 188kw - Z 28 NET VECTRA C GTS (Z02) | 08.2002-01.2009 3.0 CDTI (F68) - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA C GTS (Z02) | 08.2002-01.2009 3.0 CDTi (F68) - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA C GTS (Z02) | 08.2002-01.2009 3.2 V6 (F68) - 3175ccm, 211pk, 155kw - Z 32 SE SAAB 9-3 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 1,8t - 1998ccm, 150pk, 110kw - B207E 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 1.8 i - 1796ccm, 122pk, 90kw - Z 18 XE 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 1.9 TiD - 1910ccm, 120pk, 88kw - Z 19 DT 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 1.9 TiD - 1910ccm, 150pk, 110kw - Z 19 DTH 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 1.9 TTiD - 1910ccm, 160pk, 118kw - A 19 DTR 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 1.9 TTiD - 1910ccm, 180pk, 132kw - A 19 DTR, Z 19 DTR 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t - 1998ccm, 163pk, 120kw - B207G 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t - 1998ccm, 175pk, 129kw - B207L 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t - 1998ccm, 210pk, 154kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t - 1998ccm, 241pk, 177kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t Bio Power - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t Bio Power - 1998ccm, 163pk, 120kw - B207H 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t BioPower - 1998ccm, 210pk, 154kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t BioPower XWD - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t BioPower XWD - 1998ccm, 163pk, 120kw - B207H 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t BioPower XWD - 1998ccm, 210pk, 154kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t XWD - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t XWD - 1998ccm, 163pk, 120kw - B207G 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t XWD - 1998ccm, 241pk, 177kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 Turbo Performance - 1998ccm, 252pk, 185kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 Turbo XWD - 1998ccm, 210pk, 154kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.2 TiD - 2171ccm, 125pk, 92kw - D223L 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 - 2792ccm, 256pk, 188kw - B284L 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 - 2792ccm, 276pk, 203kw - B284L 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 - 2792ccm, 230pk, 169kw - LP9 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 - 2792ccm, 250pk, 184kw - LP9 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 XWD - 2792ccm, 280pk, 206kw - B284R 9-3 Convertible 9-3 Convertible (YS3F) | 08.2003-02.2015 1,8t - 1998ccm, 150pk, 110kw - B207E 9-3 Convertible (YS3F) | 08.2003-02.2015 1.8 i - 1796ccm, 122pk, 90kw - Z 18 XE 9-3 Convertible (YS3F) | 08.2003-02.2015 1.9 TiD - 1910ccm, 120pk, 88kw - Z 19 DT 9-3 Convertible (YS3F) | 08.2003-02.2015 1.9 TiD - 1910ccm, 150pk, 110kw - Z 19 DTH 9-3 Convertible (YS3F) | 08.2003-02.2015 1.9 TTiD - 1910ccm, 130pk, 96kw - A 19 DTR 9-3 Convertible (YS3F) | 08.2003-02.2015 1.9 TTiD - 1910ccm, 160pk, 118kw - A 19 DTR 9-3 Convertible (YS3F) | 08.2003-02.2015 1.9 TTiD - 1910ccm, 180pk, 132kw - A 19 DTR, Z 19 DTR 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 t - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 t - 1998ccm, 163pk, 120kw - B207G 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 t - 1998ccm, 175pk, 129kw - B207L 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 t - 1998ccm, 210pk, 154kw - B207R 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 t BioPower - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 t BioPower - 1998ccm, 163pk, 120kw - B207H 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 T BioPower - 1998ccm, 197pk, 145kw - B207R 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 Turbo Performance - 1998ccm, 252pk, 185kw - B207R 9-3 Convertible (YS3F) | 08.2003-02.2015 2.8 Turbo V6 - 2792ccm, 256pk, 188kw - B284L 9-3 Convertible (YS3F) | 08.2003-02.2015 2.8 Turbo V6 - 2792ccm, 276pk, 203kw - B284R 9-3 Convertible (YS3F) | 08.2003-02.2015 2.8 Turbo V6 - 2792ccm, 230pk, 169kw - LP9 9-3 Convertible (YS3F) | 08.2003-02.2015 2.8 Turbo V6 - 2792ccm, 250pk, 184kw - LP9 9-3 Estate 9-3 Estate (E50) | 03.2005-02.2015 1.8 i - 1796ccm, 122pk, 90kw - Z 18 XE 9-3 Estate (E50) | 03.2005-02.2015 1.8t 2.0 - 1998ccm, 150pk, 110kw - B207E 9-3 Estate (E50) | 03.2005-02.2015 1.9 TiD - 1910ccm, 120pk, 88kw - Z 19 DT 9-3 Estate (E50) | 03.2005-02.2015 1.9 TiD - 1910ccm, 150pk, 110kw - Z 19 DTH 9-3 Estate (E50) | 03.2005-02.2015 1.9 TTiD - 1910ccm, 130pk, 96kw - A 19 DTR 9-3 Estate (E50) | 03.2005-02.2015 1.9 TTiD - 1910ccm, 160pk, 118kw - A 19 DTR 9-3 Estate (E50) | 03.2005-02.2015 1.9 TTiD - 1910ccm, 180pk, 132kw - Z 19 DTR 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 150pk, 110kw - B207E 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 163pk, 120kw - B207G 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 175pk, 129kw - B207L 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 209pk, 154kw - B207R 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 241pk, 177kw - B207R 9-3 Estate (E50) | 03.2005-02.2015 2.0 t Bio Power - 1998ccm, 200pk, 147kw - B207M 9-3 Estate (E50) | 03.2005-02.2015 2.0 t Bio Power XWD - 1998ccm, 209pk, 154kw - B207R 9-3 Estate (E50) | 03.2005-02.2015 2.0 t BioPower - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 Estate (E50) | 03.2005-02.2015 2.0 t BioPower - 1998ccm, 163pk, 120kw - B207H 9-3 Estate (E50) | 03.2005-02.2015 2.0 t BioPower XWD - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 Estate (E50) | 03.2005-02.2015 2.0 t BioPower XWD - 1998ccm, 163pk, 120kw - B207H 9-3 Estate (E50) | 03.2005-02.2015 2.0 t XWD - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 Estate (E50) | 03.2005-02.2015 2.0 t XWD - 1998ccm, 163pk, 120kw - B207G 9-3 Estate (E50) | 03.2005-02.2015 2.0 t XWD - 1998ccm, 209pk, 154kw - B207R 9-3 Estate (E50) | 03.2005-02.2015 2.0 t XWD - 1998ccm, 241pk, 177kw - B207R 9-3 Estate (E50) | 03.2005-02.2015 2.0 T16 - 1998ccm, 194pk, 143kw - B207L 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 - 2792ccm, 230pk, 169kw - B284L 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 - 2792ccm, 256pk, 188kw - B284L 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 - 2792ccm, 276pk, 203kw - B284R 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 - 2792ccm, 250pk, 184kw - LP9 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 XWD - 2792ccm, 280pk, 206kw - B284R 9-3X 9-3X (YS3) | 02.2009-02.2015 1.9 TTiD AWD - 1910ccm, 180pk, 132kw - A 19 DTR, Z 19 DTR 9-3X (YS3) | 02.2009-02.2015 2.0 t BioPower XWD - 1998ccm, 220pk, 162kw - A 20 NFT 9-3X (YS3) | 02.2009-02.2015 2.0 t BioPower XWD - 1998ccm, 209pk, 154kw - B207R 9-3X (YS3) | 02.2009-02.2015 2.0 t XWD - 1998ccm, 209pk, 154kw - B207R 9-3X (YS3) | 02.2009-02.2015 2.0 T16 XWD - 1998ccm, 220pk, 162kw - A 20 NFT VAUXHALL SIGNUM SIGNUM (Z03) | 03.2003-10.2008 2.8 V6 Turbo - 2792ccm, 230pk, 169kw - Z 28 NEL SIGNUM (Z03) | 03.2003-10.2008 2.8 V6 Turbo - 2792ccm, 250pk, 184kw - Z 28 NET SIGNUM (Z03) | 03.2003-10.2008 3.0 CDTi - 2958ccm, 177pk, 130kw - Y 30 DT SIGNUM (Z03) | 03.2003-10.2008 3.0 V6 CDTI - 2959ccm, 184pk, 135kw - Z 30 DT SIGNUM (Z03) | 03.2003-10.2008 3.2 V6 - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA Mk VECTRA Mk II (C) (Z02) | 01.2000-10.2008 3.0 CDTi - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA Mk II (C) (Z02) | 01.2000-10.2008 3.0 V6 CDTI - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA Mk II (C) (Z02) | 01.2000-10.2008 3.2 V6 - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA Mk II (C) Estate (Z02) | 10.2003-05.2009 2.8 V6 Turbo - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA Mk II (C) Estate (Z02) | 10.2003-05.2009 2.8 V6 Turbo - 2792ccm, 255pk, 188kw - Z 28 NET VECTRA Mk II (C) Estate (Z02) | 10.2003-05.2009 3.0 CDTi - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA Mk II (C) Estate (Z02) | 10.2003-05.2009 3.0 V6 CDTI - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA Mk II (C) Estate (Z02) | 10.2003-05.2009 3.2 V6 - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 2.8 V6 Turbo - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 2.8 V6 Turbo - 2792ccm, 250pk, 184kw - Z 28 NET VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 2.8 V6 Turbo - 2792ccm, 255pk, 188kw - Z 28 NET VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 3.0 CDTi - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 3.0 V6 CDTI - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 3.2 V6 - 3175ccm, 211pk, 155kw - Z 32 SE -
Original part numbers
569005 OPEL 24435132 SAAB 93171606 VAUXHALL 93175606 VAUXHALL 95526643 VAUXHALL 95526643 OPEL 95526643 CADILLAC 93175606 SAAB 93175606 OPEL 93175606 CADILLAC -
Manufacturer
Brembo is the undisputed leader in the production and development of brake parts for the automotive industry. Brembo stands for the best braking performance for your car. Brembo has built up enormous expertise to be able to develop and produce a wide variety of products. From brake pads and discs for over 96% of all passenger cars in Europe, America and Asia, to extreme braking systems used in Supercars and Formula 1.
The technical innovation and durability of Brembo brake pads and brake discs is guaranteed because all important processes such as design, production and testing are under one roof. As a result, Brembo brake pads and brake discs always deliver the best performance, time after time.
Brembo sport brake discs are cast, finished and tested by Brembo itself, so that exceptional quality can be guaranteed. Every newly produced Brembo brake disc thus has the same exceptional quality as the previous one.
Brembo brake parts distinguish themselves on the following points:
• Coverage of over 96% of the worldwide passenger car fleet
• Top quality
• Sportsmanship
• Better braking performance than other manufacturers
• Number 1 braking system used in sports cars and Formula 1
We currently have the following Brembo products in our range:
• Brake pads
• Brake discs
• Brake Shoe Set
• Wear Indicators
• Brake drums
• Calipers
• Brake hoses
• Wheel brake cylinders
• Master cylinders
• Penetrating Oil & Lubricants
• Brake power distributors
Is sportsmanship important to you? Then order Brembo brake parts!
-
