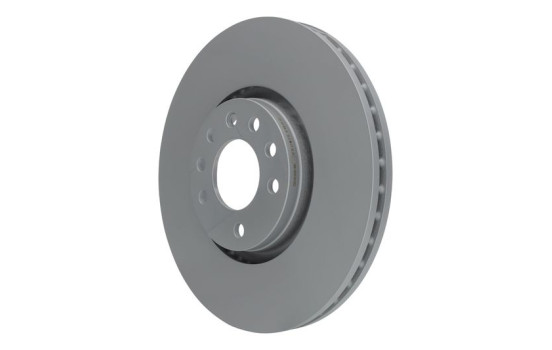

Brake Disc 24.0128-0164.1 ATE
Product number: 0384445
Manufacturer number: 24.0128-0164.1
EAN: 4006633228053
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Application: brake disc

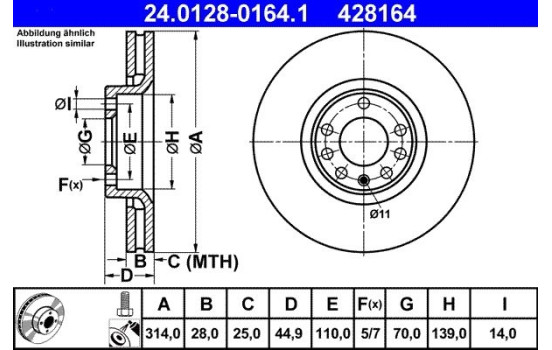

Outer diameter [mm] 314,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Assembly Front Brake pads Exclusive Inner diameter [mm] 139,0 Bolt Hole Circle Ø [mm] 110,0 Centering Diameter [mm] 70,0 Machining High-carbon Bore Ø [mm] 14,0 Inspection Tag E1 90R-02C0118 / 1023 MAPP code available No. of holes 2 7 Guarantee 2 years Height [mm] 44,9 Additional information With screws Brake disc thickness (mm) 28,0 Minimum thickness (mm) 25,0 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17539 ABE C3X035ABE AP 24893 V AP 24893 ASHIKA 60-00-0417 ASHIKA 60-00-0417C ATE 24.0128-0164.1 (this product) BELACO BDS1890 BLUE PRINT ADA104334 BORG & BECK BBD4395 BOSCH 0 986 479 143 BRECO BS 8495 BRECO BV 8495 BREMBO 09.9177.11 BREMBO 09.9177.10 BREMSI CD7237V CAR 142.1213 CAR HPD 1213 CIFAM 800-1353C COMLINE ADC1135V DELPHI BG3973 DENCKERMANN B130451 DJ PARTS BD2301 DON PCD13622 EUROBRAKE 5815203653 EUROBRAKE 5815313653 FEBI BILSTEIN 44130 FERODO DDF1237C-1 FERODO DDF1237 FTE 9081182 FTE 9071103 FTE BS5496B FTE BS5496 GALFER B1.G228-0164.1 GIRLING 6045491 HELLA 8DD 355 127-851 HELLA PAGID 8DD 355 127-851 ICER 78BD9005-2 JAPANPARTS DI-0417 JAPANPARTS DI-0417C JAPKO 600417 JAPKO 600417C JP GROUP 1263100500 JURID 562390JC JURID 562294J JURID 562390J JURID 562390JC-1 KAMOKA 1031125 KAWE 6944 10 KRAFT AUTOMOTIVE 6041733 LPR O1008V MAGNETI MARELLI 360406008500 MAGNETI MARELLI 360406008501 MALÒ 1110706 Manufacturer Manufacturer number Price MAPCO 25703C MAPCO 25703 MASTER-SPORT 24012801641-SET-MS MASTER-SPORT 24012801641-PCS-MS MASTER-SPORT 24012801641-PCS-MSP MASTER-SPORT 24012801641-SET-MSP MASTER-SPORT 24012801641PR-PCS-MSP MASTER-SPORT 24012801641PR-PCS-MS MAXGEAR 19-1318SPORT MAXGEAR 19-1318 MAXTECH 871552 METELLI 23-1353C METZGER 6110251 MEYLE 615 521 0008/PD MINTEX MDC1674 MOTAQUIP LVBD1059Z NATIONAL NBD1282 NK 313653 NK 203653 OPTIMAL BS-7912C OPTIMAL BS-7912HC PILENGA V208 PROTECHNIC PRD2301 QUARO QD4033 QUINTON HAZELL BDC5496 R BRAKE 78RBD29005 RAICAM RD00614 REMSA 6944.10 ROADHOUSE 6944.10 ROTINGER RT 20273HP-GL T3 ROTINGER RT 20273HP-GL T6 ROTINGER RT 20273-GL T3 ROTINGER RT 20273-GL ROTINGER RT 20273 ROTINGER RT 20273HP ROTINGER RT 20273HP-GL T5 ROTINGER RT 20273-GL T6 ROTINGER RT 20273HP-GL T9 ROTINGER RT 20273-GL T9 ROTINGER RT 20273-GL T5 ROTINGER RT 20273HP-GL SKF VKBD 80492 V1 STELLOX 6020-1374V-SX SWAG 40 94 4130 TEXTAR 92118803 TRISCAN 8120 24144C TRUSTING DF398 TRW DF4549 VALEO 197361 WOKING D6944.10 ZIMMERMANN 430.1499.20 ZIMMERMANN 430.1499.52 ZIMMERMANN 430.1499.53 -
Applicability
OPEL SIGNUM Hatchback SIGNUM Hatchback (Z03) | 05.2003-12.2008 2.8 V6 Turbo (F48) - 2792ccm, 230pk, 169kw - Z 28 NEL SIGNUM Hatchback (Z03) | 05.2003-12.2008 2.8 V6 Turbo (F48) - 2792ccm, 250pk, 184kw - Z 28 NET SIGNUM Hatchback (Z03) | 05.2003-12.2008 3.0 V6 CDTI (F48) - 2958ccm, 177pk, 130kw - Y 30 DT SIGNUM Hatchback (Z03) | 05.2003-12.2008 3.0 V6 CDTI (F48) - 2958ccm, 184pk, 135kw - Z 30 DT SIGNUM Hatchback (Z03) | 05.2003-12.2008 3.2 V6 (F48) - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA C VECTRA C (Z02) | 04.2002-01.2009 2.8 V6 Turbo (F69) - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA C (Z02) | 04.2002-01.2009 2.8 V6 Turbo (F69) - 2792ccm, 250pk, 184kw - Z 28 NET VECTRA C (Z02) | 04.2002-01.2009 3.0 CDTI (F69) - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA C (Z02) | 04.2002-01.2009 3.0 CDTi (F69) - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA C (Z02) | 04.2002-01.2009 3.2 V6 (F69) - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA C Estate (Z02) | 10.2003-01.2009 2.8 V6 Turbo (F35) - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA C Estate (Z02) | 10.2003-01.2009 2.8 V6 Turbo (F35) - 2792ccm, 250pk, 184kw - Z 28 NET VECTRA C Estate (Z02) | 10.2003-01.2009 3.0 V6 CDTI (F35) - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA C Estate (Z02) | 10.2003-01.2009 3.0 V6 CDTI (F35) - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA C Estate (Z02) | 10.2003-01.2009 3.2 V6 (F35) - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA C GTS (Z02) | 08.2002-01.2009 2.8 V6 Turbo (F68) - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA C GTS (Z02) | 08.2002-01.2009 2.8 V6 Turbo (F68) - 2792ccm, 250pk, 184kw - Z 28 NET VECTRA C GTS (Z02) | 08.2002-01.2009 2.8 V6 Turbo (F68) - 2792ccm, 255pk, 188kw - Z 28 NET VECTRA C GTS (Z02) | 08.2002-01.2009 3.0 CDTI (F68) - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA C GTS (Z02) | 08.2002-01.2009 3.0 CDTi (F68) - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA C GTS (Z02) | 08.2002-01.2009 3.2 V6 (F68) - 3175ccm, 211pk, 155kw - Z 32 SE SAAB 9-3 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t - 1998ccm, 175pk, 129kw - B207L 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t - 1998ccm, 210pk, 154kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t - 1998ccm, 241pk, 177kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t BioPower - 1998ccm, 200pk, 147kw - B207M 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t BioPower - 1998ccm, 210pk, 154kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t BioPower XWD - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t BioPower XWD - 1998ccm, 163pk, 120kw - B207H 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t BioPower XWD - 1998ccm, 210pk, 154kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t XWD - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t XWD - 1998ccm, 163pk, 120kw - B207G 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 t XWD - 1998ccm, 241pk, 177kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 Turbo Performance - 1998ccm, 252pk, 185kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.0 Turbo XWD - 1998ccm, 210pk, 154kw - B207R 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 - 2792ccm, 256pk, 188kw - B284L 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 - 2792ccm, 276pk, 203kw - B284L 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 - 2792ccm, 230pk, 169kw - LP9 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 - 2792ccm, 250pk, 184kw - LP9 9-3 (YS3F, E79, D79, D75) | 09.2002-02.2015 2.8 Turbo V6 XWD - 2792ccm, 280pk, 206kw - B284R 9-3 Convertible 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 t - 1998ccm, 175pk, 129kw - B207L 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 t - 1998ccm, 210pk, 154kw - B207R 9-3 Convertible (YS3F) | 08.2003-02.2015 2.0 Turbo Performance - 1998ccm, 252pk, 185kw - B207R 9-3 Convertible (YS3F) | 08.2003-02.2015 2.8 Turbo V6 - 2792ccm, 256pk, 188kw - B284L 9-3 Convertible (YS3F) | 08.2003-02.2015 2.8 Turbo V6 - 2792ccm, 276pk, 203kw - B284R 9-3 Convertible (YS3F) | 08.2003-02.2015 2.8 Turbo V6 - 2792ccm, 280pk, 206kw - B284R 9-3 Convertible (YS3F) | 08.2003-02.2015 2.8 Turbo V6 - 2792ccm, 230pk, 169kw - LP9 9-3 Convertible (YS3F) | 08.2003-02.2015 2.8 Turbo V6 - 2792ccm, 250pk, 184kw - LP9 9-3 Estate 9-3 Estate (E50) | 03.2005-02.2015 1.9 TiD - 1910ccm, 150pk, 110kw - Z 19 DTH 9-3 Estate (E50) | 03.2005-02.2015 1.9 TTiD - 1910ccm, 130pk, 96kw - A 19 DTR 9-3 Estate (E50) | 03.2005-02.2015 1.9 TTiD - 1910ccm, 160pk, 118kw - A 19 DTR 9-3 Estate (E50) | 03.2005-02.2015 1.9 TTiD - 1910ccm, 180pk, 132kw - Z 19 DTR 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 220pk, 162kw - A 20 NFT 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 200pk, 147kw - B207M 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 209pk, 154kw - B207R 9-3 Estate (E50) | 03.2005-02.2015 2.0 t - 1998ccm, 241pk, 177kw - B207R 9-3 Estate (E50) | 03.2005-02.2015 2.0 t XWD - 1998ccm, 209pk, 154kw - B207R 9-3 Estate (E50) | 03.2005-02.2015 2.0 t XWD - 1998ccm, 241pk, 177kw - B207R 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 - 2792ccm, 230pk, 169kw - B284L 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 - 2792ccm, 256pk, 188kw - B284L 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 - 2792ccm, 276pk, 203kw - B284R 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 - 2792ccm, 250pk, 184kw - LP9 9-3 Estate (E50) | 03.2005-02.2015 2.8 Turbo V6 XWD - 2792ccm, 280pk, 206kw - B284R 9-3X 9-3X (YS3) | 02.2009-02.2015 1.9 TTiD AWD - 1910ccm, 180pk, 132kw - A 19 DTR, Z 19 DTR 9-3X (YS3) | 02.2009-02.2015 2.0 t BioPower XWD - 1998ccm, 220pk, 162kw - A 20 NFT 9-3X (YS3) | 02.2009-02.2015 2.0 t BioPower XWD - 1998ccm, 209pk, 154kw - B207R 9-3X (YS3) | 02.2009-02.2015 2.0 t XWD - 1998ccm, 209pk, 154kw - B207R 9-3X (YS3) | 02.2009-02.2015 2.0 T16 XWD - 1998ccm, 220pk, 162kw - A 20 NFT VAUXHALL SIGNUM SIGNUM (Z03) | 03.2003-10.2008 2.8 V6 Turbo - 2792ccm, 230pk, 169kw - Z 28 NEL SIGNUM (Z03) | 03.2003-10.2008 2.8 V6 Turbo - 2792ccm, 250pk, 184kw - Z 28 NET SIGNUM (Z03) | 03.2003-10.2008 3.0 CDTi - 2958ccm, 177pk, 130kw - Y 30 DT SIGNUM (Z03) | 03.2003-10.2008 3.0 V6 CDTI - 2959ccm, 184pk, 135kw - Z 30 DT SIGNUM (Z03) | 03.2003-10.2008 3.2 V6 - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA Mk VECTRA Mk II (C) (Z02) | 01.2000-10.2008 3.0 CDTi - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA Mk II (C) (Z02) | 01.2000-10.2008 3.0 V6 CDTI - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA Mk II (C) (Z02) | 01.2000-10.2008 3.2 V6 - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA Mk II (C) Estate (Z02) | 10.2003-05.2009 2.8 V6 Turbo - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA Mk II (C) Estate (Z02) | 10.2003-05.2009 3.0 CDTi - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA Mk II (C) Estate (Z02) | 10.2003-05.2009 3.0 V6 CDTI - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA Mk II (C) Estate (Z02) | 10.2003-05.2009 3.2 V6 - 3175ccm, 211pk, 155kw - Z 32 SE VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 2.8 V6 Turbo - 2792ccm, 230pk, 169kw - Z 28 NEL VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 2.8 V6 Turbo - 2792ccm, 250pk, 184kw - Z 28 NET VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 3.0 CDTi - 2958ccm, 184pk, 135kw - Z 30 DT VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 3.0 V6 CDTI - 2958ccm, 177pk, 130kw - Y 30 DT VECTRA Mk II (C) GTS (Z02) | 08.2002-05.2009 3.2 V6 - 3175ccm, 211pk, 155kw - Z 32 SE -
Original part numbers
5 69 005 OPEL 93175606 OPEL 24435132 SAAB 93175606 SAAB 93175606 VAUXHALL 5 69 005 VAUXHALL -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
