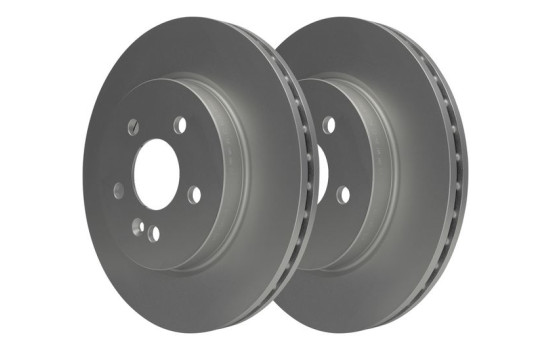

Brake Disc 24.0126-0116.1 ATE
Product number: 0383925
Manufacturer number: 24.0126-0116.1
EAN: 4006633075817
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications
Application: brake disc

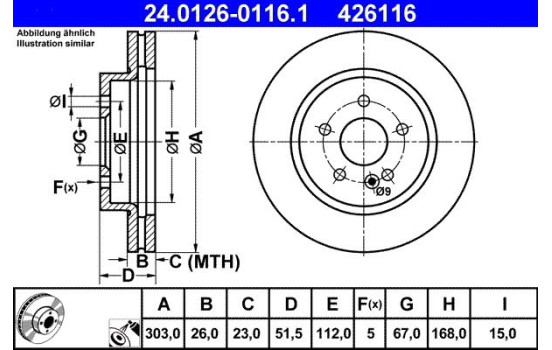

Outer diameter [mm] 303,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Assembly Front Brake pads Exclusive Inner diameter [mm] 168,0 Bolt Hole Circle Ø [mm] 112,0 Centering Diameter [mm] 67,0 Machining High-carbon Bore Ø [mm] 15,0 Inspection Tag E1 90R-02C0115 / 0051 MAPP code available Warranty 2 years Height [mm] 51,5 Brake disc thickness (mm) 26,0 Minimum thickness (mm) 23,0 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17109 ABE C3M029ABE AP 24767 V AP 24767 ASHIKA 60-00-0554C ATE 24.0126-0116.1 (this product) BARUM BAR26116 BELACO BDS1422HC BLUE PRINT ADU174339 BORG & BECK BBD4140 BOSCH 0 986 478 468 BRAXIS AE0399 BRECO BV 8352 BRECO BS 8352 BREMBO 09.7823.10 BREMBO 09.7823.11 BREMSI CD7036V BSG BSG 60-210-058 CAR 142.428 CHAMPION 562099CH CIFAM 800-700C COMLINE ADC1630V DELPHI BG3397 DENCKERMANN B130708 Dr!ve+ DP1010.11.1242 EUROBRAKE 5815343347 EUROBRAKE 5815313347 EUROBRAKE 5815203347 FEBI BILSTEIN 21921 FERODO DDF1036C FI.BA FBD303 FTE 9071138 FTE 9081118 FTE BS4817HB FTE BS4817 FTE BS4817B GIRLING 6041501 HELLA 8DD 355 129-751 HELLA PAGID 8DD 355 129-751 JAPANPARTS DI-0554C JAPKO 600554C JURID 562099JC JURID 562099J KAWE 6782 10 KRAFT AUTOMOTIVE 6041450 LPR M2711V MAGNETI MARELLI 360406033601 MAGNETI MARELLI 353612849240 MAGNETI MARELLI 361302040396 MAGNETI MARELLI 360406033600 Manufacturer Manufacturer number Price MAPCO 15792 MAPCO 15792C MASTER-SPORT 24012601161-SET-MS MASTER-SPORT 24012601161-SET-MSP MASTER-SPORT 24012601161PR-PCS-MSP MASTER-SPORT 24012601161-PCS-MSP MASTER-SPORT 24012601161PR-PCS-MS MASTER-SPORT 24012601161-PCS-MS MAXGEAR 19-0947 MAXGEAR 19-0947SPORT MAXTECH 873549 METELLI 23-0700C METZGER 6110480 MEYLE 015 521 2041 MEYLE 083 521 2041/PD MINTEX MDC1359 MOTAQUIP LVBE326Z NATIONAL NBD921 NK 313347 NK 343347 NK 203347 OPTIMAL BS-7330C OPTIMAL BS-7330 PILENGA V289 PROTECHNIC PRD2365 QUARO QD2016 QUINTON HAZELL BDC4817 RAICAM RD00461 REMSA 6782.10 ROADHOUSE 6782.10 ROTINGER RT 2712-GL T3 ROTINGER RT 2712-GL T9 ROTINGER RT 2712-GL T5 ROTINGER RT 2712-GL ROTINGER RT 2712 ROTINGER RT 2712-GL T6 SKF VKBD 80814 V1 STELLOX 6020-3347V-SX SWAG 10 92 1921 TEXTAR 92089905 TRISCAN 8120 23147C TRUCKTEC AUTOMOTIVE 02.35.079 TRUSTING DF535 TRW DF4150 VAICO V30-80041 VALEO 197237 WOKING D6782.10 ZIMMERMANN 400.3603.52 ZIMMERMANN 400.3603.20 ZIMMERMANN 400.3603.53 -
Applicability
MERCEDES-BENZ M-CLASS M-CLASS (W163) | 02.1998-06.2005 ML 230 (163.136) - 2295ccm, 150pk, 110kw - M 111.977 M-CLASS (W163) | 02.1998-06.2005 ML 270 CDI (163.113) - 2685ccm, 163pk, 120kw - OM 612.963 M-CLASS (W163) | 02.1998-06.2005 ML 320 (163.154) - 3199ccm, 218pk, 160kw - M 112.942 M-CLASS (W163) | 02.1998-06.2005 ML 430 (163.172) - 4266ccm, 272pk, 200kw - M 113.942 -
Original part numbers
163 421 00 12 MERCEDES-BENZ 163 421 02 12 MERCEDES-BENZ 163 421 04 12 MERCEDES-BENZ A 163 421 00 12 MERCEDES-BENZ A 163 421 02 12 MERCEDES-BENZ A 163 421 04 12 MERCEDES-BENZ -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
