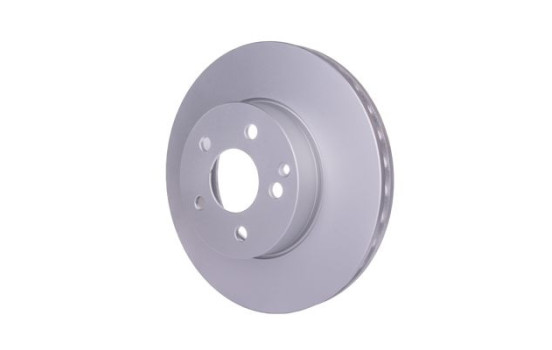

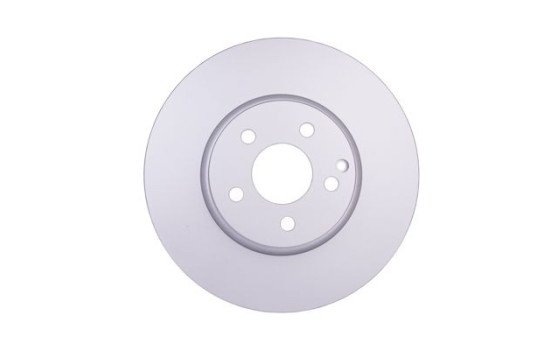

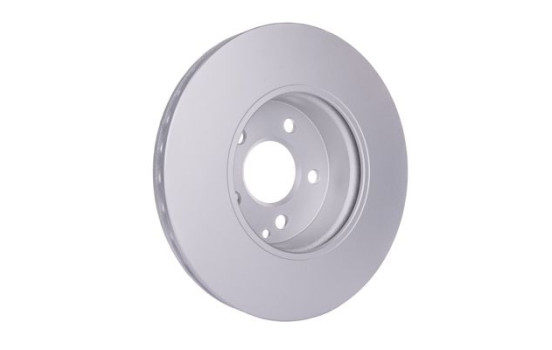

Brake disc 8DD 355 128-781 Hella

Video

Product number: 1396249

Manufacturer number: 8DD 355 128-781

EAN: 4082300660579

€ 51,¹⁴

Incl. VAT

View product specifications

In stock

Delivery Tomorrow

Quantity:

Secure payment

Free 30 days exchanges
Any part, any car
Fast delivery
Expert support

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Enter your number plate or Manually select.

Specifications

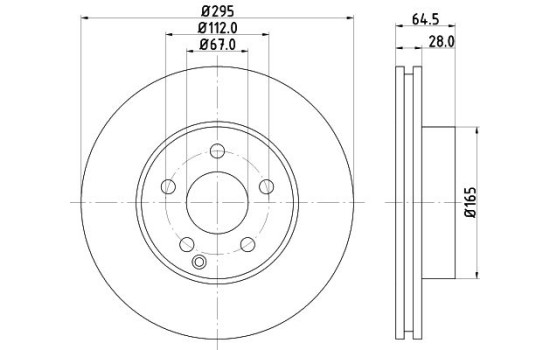

Outer diameter [mm]	295
Brake Disc Type	Internal ventilation
Surface	Coated
Brake pads	Exclusive
Inner diameter [mm]	154,5
Bolt Hole Circle Ø [mm]	112
Centering Diameter [mm]	67
Hole Arrangement / Number	05/06
Machining	High-carbon
Number of screws	2
Guarantee	2 years
Height [mm]	64,5
Additional information	Without wheel hub
	Without wheel studs
	Without wheel bearing
	With screws
Assy./disassy. by qualified personnel required!
Brake disc thickness (mm)	28
Minimum thickness (mm)	25,4
Weight [kg]	8,6
Hole diameter for wheel bolt [inch]	15,3

Similar products of other manufacturers

Manufacturer	Manufacturer number	Price
A.B.S.	17758	€ 39,96
ASAM	75697
ASHUKI	P330-126
BELACO	BDS1095HC
BLUE PRINT	ADU174306	€ 44,64
BREMSI	CD7690V
BSG	BSG 60-210-036	€ 62,36
CHAMPION	562627CH
DON	PCD10222
Dr!ve+	DP1010.11.1454
FEBI BILSTEIN	30550	€ 48,70
FERODO	DDF1690	€ 74,09
FERODO	DDF1690C	€ 121,19
FI.BA	FBD196
FTE	9071003
FTE	BS7248
HELLA	8DD 355 128-781
HELLA	8DD 355 114-201
HELLA	8DD 355 128-781	(this product)
HELLA PAGID	8DD 355 114-201
JURID	562627JC
MASTER-SPORT	24012801551-PCS-MS
MASTER-SPORT	24012801551PR-PCS-MS
MASTER-SPORT	24012801551-SET-MS
MASTER-SPORT	24012801551-PCS-MSP
MASTER-SPORT	24012801551-SET-MSP

Manufacturer	Manufacturer number	Price
MASTER-SPORT	24012801551PR-PCS-MSP
MAXGEAR	19-1953	€ 50,78
MAXGEAR	19-1953SPORT	€ 77,60
METZGER	6110153
MEYLE	015 521 2099	€ 63,14
MEYLE	083 521 2099/PD	€ 66,58
MINTEX	MDC2014C
QUARO	QD1775
QUARO	QD1775HC
RAICAM	RD01073
ROTINGER	RT 20723-GL T9
ROTINGER	RT 20723-GL
ROTINGER	RT 20723-GL T6
ROTINGER	RT 20723
ROTINGER	RT 20723-GL T3
ROTINGER	RT 20723-GL T5
SWAG	10 93 0550
TEXTAR	92163205	€ 75,02
TOPRAN	401 899
TRW	DF4863S	€ 58,18
VAICO	V30-80008
VALEO	197202
VALEO	672519
ZIMMERMANN	400.3653.52	€ 107,12
ZIMMERMANN	400.3653.20	€ 62,93
ZIMMERMANN	400.3653.53	€ 108,86

Applicability

MERCEDES-BENZ

	C-CLASS
	C-CLASS (W204) \| 01.2007-03.2014 C 180 CGI (204.031) - 1595ccm, 156pk, 115kw - M 274.910
	C-CLASS (W204) \| 01.2007-03.2014 C 180 CGI (204.049) - 1796ccm, 156pk, 115kw - M 271.820
	C-CLASS (W204) \| 01.2007-03.2014 C 180 Kompressor (204.044, 204.045) - 1597ccm, 156pk, 115kw - M 271.910
	C-CLASS (W204) \| 01.2007-03.2014 C 180 Kompressor (204.046) - 1796ccm, 156pk, 115kw - M 271.952
	C-CLASS (W204) \| 01.2007-03.2014 C 200 CGI (204.048) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820
	C-CLASS (W204) \| 01.2007-03.2014 C 200 Kompressor (204.041) - 1796ccm, 184pk, 135kw - M 271.950
	C-CLASS (W204) \| 01.2007-03.2014 C 220 CDI (204.002) - 2143ccm, 163pk, 120kw - OM 651.911
	C-CLASS (W204) \| 01.2007-03.2014 C 220 CDI (204.002) - 2143ccm, 170pk, 125kw - OM 651.911
	C-CLASS (W204) \| 01.2007-03.2014 C 220 CDI (204.008) - 2148ccm, 163pk, 120kw - OM 646.811
	C-CLASS (W204) \| 01.2007-03.2014 C 220 CDI (204.008) - 2148ccm, 170pk, 125kw - OM 646.811
	C-CLASS (W204) \| 01.2007-03.2014 C 220 CDI 4-matic (204.084) - 2143ccm, 170pk, 125kw - OM 651.912
	C-CLASS (W204) \| 01.2007-03.2014 C 230 (204.052) - 2496ccm, 204pk, 150kw - M 272.921
	C-CLASS (W204) \| 01.2007-03.2014 C 230 4-matic (204.085) - 2496ccm, 204pk, 150kw - M 272.911
	C-CLASS (W204) \| 01.2007-03.2014 C 250 CDI (204.003) - 2143ccm, 204pk, 150kw - OM 651.911
	C-CLASS (W204) \| 01.2007-03.2014 C 250 CDI 4-matic (204.082) - 2143ccm, 204pk, 150kw - OM 651.912
	C-CLASS (W204) \| 01.2007-03.2014 C 250 CGI (204.047) - 1796ccm, 204pk, 150kw - M 271.860
	C-CLASS (W204) \| 01.2007-03.2014 C 280 (204.054) - 2996ccm, 231pk, 170kw - M 272.947
	C-CLASS (W204) \| 01.2007-03.2014 C 280 4-matic (204.081) - 2996ccm, 231pk, 170kw - M 272.948
	C-CLASS (W204) \| 01.2007-03.2014 C 300 (204.054) - 2996ccm, 231pk, 170kw - M 272.947
	C-CLASS (W204) \| 01.2007-03.2014 C 300 4-matic (204.081) - 2996ccm, 231pk, 170kw - M 272.948
	C-CLASS Coupe
	C-CLASS Coupe (C204) \| 06.2011-??? C 180 (204.331) - 1595ccm, 156pk, 115kw - M 274.910
	C-CLASS Coupe (C204) \| 06.2011-??? C 200 CGI (204.348) - 1796ccm, 184pk, 135kw - M 271.860
	C-CLASS Coupe (C204) \| 06.2011-??? C 220 CDI (204.302) - 2143ccm, 163pk, 120kw - OM 651.911
	C-CLASS Coupe (C204) \| 06.2011-??? C 220 CDI (204.302) - 2143ccm, 170pk, 125kw - OM 651.911
	C-CLASS Coupe (C204) \| 06.2011-??? C 250 (204.347) - 1796ccm, 204pk, 150kw - M 271.860
	C-CLASS Coupe (C204) \| 06.2011-??? C 250 CDI (204.303) - 2143ccm, 204pk, 150kw - OM 651.911
	C-CLASS T-Model
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 180 (204.231) - 1595ccm, 156pk, 115kw - M 274.910
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 200 CGI (204.248) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 200 Kompressor (204.241) - 1796ccm, 184pk, 135kw - M 271.950
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 220 CDI (204.202) - 2143ccm, 163pk, 120kw - OM 651.911
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 220 CDI (204.202) - 2143ccm, 170pk, 125kw - OM 651.911
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 220 CDI (204.208) - 2148ccm, 163pk, 120kw - OM 646.811
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 220 CDI (204.208) - 2148ccm, 170pk, 125kw - OM 646.811
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 220 CDI 4-matic (204.284) - 2143ccm, 170pk, 125kw - OM 651.912
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 230 (204.252) - 2496ccm, 204pk, 150kw - M 272.921
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 250 (204.252) - 2496ccm, 204pk, 150kw - M 272.921
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 250 CDI (204.203) - 2143ccm, 204pk, 150kw - OM 651.911
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 250 CDI 4-matic (204.282) - 2143ccm, 204pk, 150kw - OM 651.912
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 250 CGI (204.247) - 1796ccm, 204pk, 150kw - M 271.860
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 280 (204.254) - 2996ccm, 231pk, 170kw - M 272.947
	C-CLASS T-Model (S204) \| 08.2007-08.2014 C 300 (204.254) - 2996ccm, 231pk, 170kw - M 272.947
	E-CLASS
	E-CLASS (W212) \| 01.2009-12.2016 E 200 (212.034) - 1991ccm, 184pk, 135kw - M 274.920
	E-CLASS (W212) \| 01.2009-12.2016 E 200 CDI / BlueTEC (212.005, 212.006) - 2143ccm, 136pk, 100kw - OM 651.925
	E-CLASS (W212) \| 01.2009-12.2016 E 200 CGI (212.048, 212.148) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820
	E-CLASS (W212) \| 01.2009-12.2016 E 200 NGT (212.035) - 1991ccm, 156pk, 115kw - M 274.920
	E-CLASS (W212) \| 01.2009-12.2016 E 200 NGT (212.041) - 1796ccm, 163pk, 120kw - M 271.958
	E-CLASS (W212) \| 01.2009-12.2016 E 220 BlueTEC (212.001) - 2143ccm, 177pk, 130kw - OM 651.924
	E-CLASS (W212) \| 01.2009-12.2016 E 220 CDI - 2143ccm, 163pk, 120kw - OM 651.924
	E-CLASS (W212) \| 01.2009-12.2016 E 220 CDI / BlueTEC (212.001, 212.002) - 2143ccm, 170pk, 125kw - OM 651.924
	E-CLASS (W212) \| 01.2009-12.2016 E 250 CDI / BlueTEC 4-matic (212.082, 212.097) - 2143ccm, 204pk, 150kw - OM 651.924
	E-CLASS (W212) \| 01.2009-12.2016 E 300 (212.055) - 3498ccm, 252pk, 185kw - M 276.952
	E-CLASS (W212) \| 01.2009-12.2016 E 300 4-matic (212.080) - 3498ccm, 252pk, 185kw - M 276.952
	E-CLASS (W212) \| 01.2009-12.2016 E 350 (212.056) - 3498ccm, 272pk, 200kw - M 272.980
	E-CLASS (W212) \| 01.2009-12.2016 E 350 4-matic (212.088) - 3498ccm, 306pk, 225kw - M 276.952
	E-CLASS Convertible
	E-CLASS Convertible (A207) \| 01.2010-12.2016 E 200 (207.434) - 1991ccm, 184pk, 135kw - M 274.920
	E-CLASS Convertible (A207) \| 01.2010-12.2016 E 200 CGI (207.448) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820
	E-CLASS Convertible (A207) \| 01.2010-12.2016 E 220 CDI (207.402) - 2143ccm, 163pk, 120kw - OM 651.911
	E-CLASS Convertible (A207) \| 01.2010-12.2016 E 220 CDI / BlueTEC / d (207.402, 207.401) - 2143ccm, 170pk, 125kw - OM 651.911
	E-CLASS Convertible (A207) \| 01.2010-12.2016 E 250 CGI (207.447) - 1796ccm, 204pk, 150kw - M 271.860
	E-CLASS Coupe
	E-CLASS Coupe (C207) \| 01.2009-12.2016 E 200 (207.334) - 1991ccm, 184pk, 135kw - M 274.920
	E-CLASS Coupe (C207) \| 01.2009-12.2016 E 200 CGI (207.348) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820
	E-CLASS Coupe (C207) \| 01.2009-12.2016 E 220 CDI (207.302) - 2143ccm, 163pk, 120kw - OM 651.911
	E-CLASS Coupe (C207) \| 01.2009-12.2016 E 220 CDI / d (207.302, 207.301) - 2143ccm, 170pk, 125kw - OM 651.911
	E-CLASS Coupe (C207) \| 01.2009-12.2016 E 250 CGI (207.347) - 1796ccm, 204pk, 150kw - M 271.860
	E-CLASS T-Model
	E-CLASS T-Model (S212) \| 08.2009-12.2016 E 200 (212.234) - 1991ccm, 184pk, 135kw - M 274.920
	E-CLASS T-Model (S212) \| 08.2009-12.2016 E 200 CDI / BlueTEC (212.205, 212.206) - 2143ccm, 136pk, 100kw - OM 651.925
	E-CLASS T-Model (S212) \| 08.2009-12.2016 E 200 CGI (212.248) - 1796ccm, 184pk, 135kw - M 271.860
	E-CLASS T-Model (S212) \| 08.2009-12.2016 E 220 CDI (212.202) - 2143ccm, 163pk, 120kw - OM 651.924
	E-CLASS T-Model (S212) \| 08.2009-12.2016 E 220 CDI / BlueTEC (212.202, 212.201) - 2143ccm, 170pk, 125kw - OM 651.924
	E-CLASS T-Model (S212) \| 08.2009-12.2016 E 250 (212.236) - 1991ccm, 211pk, 155kw - M 274.920
	E-CLASS T-Model (S212) \| 08.2009-12.2016 E 300 4-matic (212.280) - 3498ccm, 252pk, 185kw - M 276.952
	SLC
	SLC (R172) \| 01.2016-10.2017 180 (172.431) - 1595ccm, 156pk, 115kw - M 274.910
	SLK
	SLK (R172) \| 02.2011-??? 200 (172.448) - 1796ccm, 184pk, 135kw - M 271.860, M 271.861
	SLK (R172) \| 02.2011-??? 250 (172.447) - 1796ccm, 204pk, 150kw - M 271.860, M 271.861

Original part numbers

A 212 421 13 12	MERCEDES-BENZ
A 204 421 25 12	MERCEDES-BENZ
212 421 13 12	MERCEDES-BENZ
204 421 07 12	MERCEDES-BENZ
A 204 421 07 12	MERCEDES-BENZ
204 421 25 12	MERCEDES-BENZ
