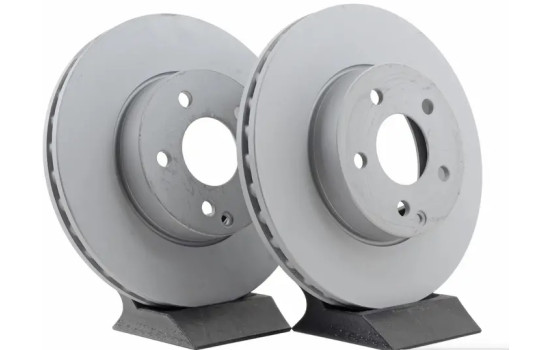

Brake Disc COAT Z 400.3653.20 Zimmermann
Product number: 0847689
Manufacturer number: 400.3653.20
EAN: 4250238716594
-
Free 30 days exchanges
-
Any part, any car
-
Fast delivery
-
Expert support
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
or .
-
Specifications

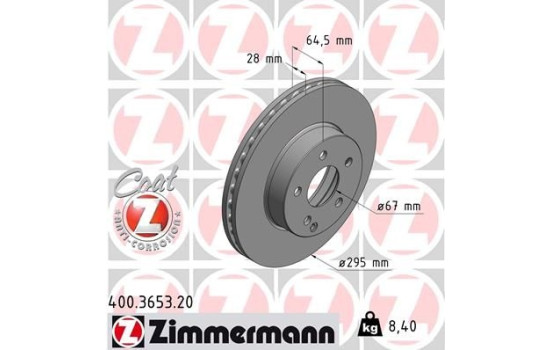

Outer diameter [mm] 295 Rim Hole Number 5 Brake Disc Type Internal ventilation Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 112 Centering Diameter [mm] 67 Hole Arrangement / Number 6/5 Machining High-carbon Inspection Tag ECE R90 APPROVED Guarantee 2 years Height [mm] 64 Brake disc thickness (mm) 28 Minimum thickness (mm) 25,4 Weight [kg] 8,4 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17758 ABE C3M073ABE AP 25506 V AP 25506 X ASAM 75697 ASHIKA 60-00-0517C ASHUKI P330-126 ATE 24.0128-0155.1 BELACO BDS1095HC BLUE PRINT ADU174306 BORG & BECK BBD4629 BOSCH 0 986 479 407 BRECO BV 9116 BREMBO 09.B280.4X BREMBO 09.B280.41 BREMSI CD7690V BSG BSG 60-210-036 CAR HPD 1368 CAR 142.1368 CHAMPION 562627CH CIFAM 800-935C COMLINE ADC1662V DENCKERMANN B130446 DJ PARTS BD2158 DON PCD10222 Dr!ve+ DP1010.11.1454 EUROBRAKE 58152033100 EUROBRAKE 58153133100 FEBI BILSTEIN 30550 FERODO DDF1690 FERODO DDF1690C FI.BA FBD196 FREMAX BD-6475 FTE BS7248HB FTE BS7248B FTE BS7248 FTE 9081091 FTE 9082604 FTE 9071003 GALFER B1.G228-0155.1 GIRLING 6048635 HELLA 8DD 355 114-201 HELLA 8DD 355 128-781 HELLA PAGID 8DD 355 128-781 HELLA PAGID 8DD 355 114-201 ICER 78BD6475-2 JAPANPARTS DI0517JM JAPANPARTS DI-0517C JAPKO 600517C JP GROUP 1363107400 JURATEK MER305 JURID 562627JC KAMOKA 103271 KAWE 61184 10 KEY PARTS KBD4629 KRAFT AUTOMOTIVE 6041478 LORO 231-03-096 Manufacturer Manufacturer number Price LYNXauto BN-1084 MAGNETI MARELLI 361302040680 MAGNETI MARELLI 360406076600 MAGNETI MARELLI 360406146801 MAGNETI MARELLI 361302040558 MAPCO 25810C MASTER-SPORT 24012801551-PCS-MS MASTER-SPORT 24012801551PR-PCS-MS MASTER-SPORT 24012801551PR-PCS-MSP MASTER-SPORT 24012801551-SET-MSP MASTER-SPORT 24012801551-PCS-MSP MASTER-SPORT 24012801551-SET-MS MAXGEAR 19-1953SPORT MAXGEAR 19-1953 MAXTECH 873587 METELLI 23-0935C METZGER 6110153 MEYLE 083 521 2099/PD MEYLE 015 521 2099 MINTEX MDC2014C MOTAQUIP LVBD1351Z NATIONAL NBD1552 NK 2033100 NK 3133100 OPEN PARTS BDR2418.20 OPTIMAL BS-8216C OPTIMAL BS-8216HC Omnicraft 2134092 PROTECHNIC PRD6111 QUARO QD1775HC QUARO QD1775 R BRAKE 78RBD26475 RAICAM RD01073 REMSA 61184.10 ROADHOUSE 61184.10 ROTINGER RT 20723-GL T5 ROTINGER RT 20723-GL T6 ROTINGER RT 20723-GL T9 ROTINGER RT 20723-GL ROTINGER RT 20723-GL T3 ROTINGER RT 20723 SKF VKBD 80181 V1 SWAG 10 93 0550 TEXTAR 92163205 TOPRAN 401 899 TRISCAN 8120 23187C TRUSTING DF1234 TRW DF4863S VAICO V30-80008 VALEO 672519 VALEO 197202 WAGNER WGR1690-1 WOKING D61184.10 ZIMMERMANN 400.3653.52 ZIMMERMANN 400.3653.53 ZIMMERMANN 400.3653.20 (this product) -
Applicability
MERCEDES-BENZ C-CLASS C-CLASS (W204) | 01.2007-03.2014 C 180 CGI (204.031) - 1595ccm, 156pk, 115kw - M 274.910 C-CLASS (W204) | 01.2007-03.2014 C 180 CGI (204.049) - 1796ccm, 156pk, 115kw - M 271.820 C-CLASS (W204) | 01.2007-03.2014 C 180 Kompressor (204.044, 204.045) - 1597ccm, 156pk, 115kw - M 271.910 C-CLASS (W204) | 01.2007-03.2014 C 180 Kompressor (204.046) - 1796ccm, 156pk, 115kw - M 271.952 C-CLASS (W204) | 01.2007-03.2014 C 200 (204.048) - 1796ccm, 186pk, 137kw - M 271.820 C-CLASS (W204) | 01.2007-03.2014 C 200 CGI (204.048) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820 C-CLASS (W204) | 01.2007-03.2014 C 200 Kompressor (204.041) - 1796ccm, 184pk, 135kw - M 271.950 C-CLASS (W204) | 01.2007-03.2014 C 220 CDI (204.002) - 2143ccm, 163pk, 120kw - OM 651.911 C-CLASS (W204) | 01.2007-03.2014 C 220 CDI (204.002) - 2143ccm, 170pk, 125kw - OM 651.911 C-CLASS (W204) | 01.2007-03.2014 C 220 CDI (204.008) - 2148ccm, 163pk, 120kw - OM 646.811 C-CLASS (W204) | 01.2007-03.2014 C 220 CDI (204.008) - 2148ccm, 170pk, 125kw - OM 646.811 C-CLASS (W204) | 01.2007-03.2014 C 220 CDI 4-matic (204.084) - 2143ccm, 170pk, 125kw - OM 651.912 C-CLASS (W204) | 01.2007-03.2014 C 230 (204.052) - 2496ccm, 204pk, 150kw - M 272.921 C-CLASS (W204) | 01.2007-03.2014 C 230 4-matic (204.085) - 2496ccm, 204pk, 150kw - M 272.911 C-CLASS (W204) | 01.2007-03.2014 C 250 CDI (204.003) - 2143ccm, 204pk, 150kw - OM 651.911 C-CLASS (W204) | 01.2007-03.2014 C 250 CDI 4-matic (204.082) - 2143ccm, 204pk, 150kw - OM 651.912 C-CLASS (W204) | 01.2007-03.2014 C 250 CGI (204.047) - 1796ccm, 204pk, 150kw - M 271.860 C-CLASS (W204) | 01.2007-03.2014 C 280 (204.054) - 2996ccm, 231pk, 170kw - M 272.947 C-CLASS (W204) | 01.2007-03.2014 C 280 4-matic (204.081) - 2996ccm, 231pk, 170kw - M 272.948 C-CLASS (W204) | 01.2007-03.2014 C 300 (204.054) - 2996ccm, 231pk, 170kw - M 272.947 C-CLASS (W204) | 01.2007-03.2014 C 300 4-matic (204.081) - 2996ccm, 231pk, 170kw - M 272.948 C-CLASS Coupe C-CLASS Coupe (C204) | 06.2011-??? C 180 (204.331) - 1595ccm, 156pk, 115kw - M 274.910 C-CLASS Coupe (C204) | 06.2011-??? C 180 (204.349) - 1796ccm, 156pk, 115kw - M 271.820 C-CLASS Coupe (C204) | 06.2011-??? C 200 CGI (204.348) - 1796ccm, 184pk, 135kw - M 271.860 C-CLASS Coupe (C204) | 06.2011-??? C 220 CDI (204.302) - 2143ccm, 163pk, 120kw - OM 651.911 C-CLASS Coupe (C204) | 06.2011-??? C 220 CDI (204.302) - 2143ccm, 170pk, 125kw - OM 651.911 C-CLASS Coupe (C204) | 06.2011-??? C 250 (204.347) - 1796ccm, 204pk, 150kw - M 271.860 C-CLASS Coupe (C204) | 06.2011-??? C 250 CDI (204.303) - 2143ccm, 204pk, 150kw - OM 651.911 C-CLASS Coupe (C204) | 06.2011-??? C 350 4-matic (204.388) - 3498ccm, 306pk, 225kw - M 276.957 C-CLASS T-Model C-CLASS T-Model (S204) | 08.2007-08.2014 C 180 CGI (204.249) - 1796ccm, 156pk, 115kw - M 271.820 C-CLASS T-Model (S204) | 08.2007-08.2014 C 200 CGI (204.248) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820 C-CLASS T-Model (S204) | 08.2007-08.2014 C 200 Kompressor (204.241) - 1796ccm, 184pk, 135kw - M 271.950 C-CLASS T-Model (S204) | 08.2007-08.2014 C 220 CDI (204.202) - 2143ccm, 170pk, 125kw - OM 651.911 C-CLASS T-Model (S204) | 08.2007-08.2014 C 220 CDI (204.208) - 2148ccm, 170pk, 125kw - OM 646.811 C-CLASS T-Model (S204) | 08.2007-08.2014 C 230 (204.252) - 2496ccm, 204pk, 150kw - M 272.921 C-CLASS T-Model (S204) | 08.2007-08.2014 C 250 CDI (204.203) - 2143ccm, 204pk, 150kw - OM 651.911 C-CLASS T-Model (S204) | 08.2007-08.2014 C 250 CDI 4-matic (204.282) - 2143ccm, 204pk, 150kw - OM 651.912 C-CLASS T-Model (S204) | 08.2007-08.2014 C 250 CGI (204.247) - 1796ccm, 204pk, 150kw - M 271.860 C-CLASS T-Model (S204) | 08.2007-08.2014 C 280 (204.254) - 2996ccm, 231pk, 170kw - M 272.947 C-CLASS T-Model (S204) | 08.2007-08.2014 C 300 (204.254) - 2996ccm, 231pk, 170kw - M 272.947 E-CLASS E-CLASS (W212) | 01.2009-12.2016 E 200 (212.034) - 1991ccm, 184pk, 135kw - M 274.920 E-CLASS (W212) | 01.2009-12.2016 E 200 CDI / BlueTEC (212.005, 212.006) - 2143ccm, 136pk, 100kw - OM 651.925 E-CLASS (W212) | 01.2009-12.2016 E 200 CGI (212.048, 212.148) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820 E-CLASS (W212) | 01.2009-12.2016 E 200 NGT (212.035) - 1991ccm, 156pk, 115kw - M 274.920 E-CLASS (W212) | 01.2009-12.2016 E 200 NGT (212.041) - 1796ccm, 163pk, 120kw - M 271.958 E-CLASS (W212) | 01.2009-12.2016 E 220 BlueTEC (212.001) - 2143ccm, 177pk, 130kw - OM 651.924 E-CLASS (W212) | 01.2009-12.2016 E 220 CDI - 2143ccm, 163pk, 120kw - OM 651.924 E-CLASS (W212) | 01.2009-12.2016 E 220 CDI / BlueTEC (212.001, 212.002) - 2143ccm, 170pk, 125kw - OM 651.924 E-CLASS (W212) | 01.2009-12.2016 E 250 CDI / BlueTEC (212.003, 212.004) - 2143ccm, 204pk, 150kw - OM 651.924 E-CLASS Convertible E-CLASS Convertible (A207) | 01.2010-12.2016 E 200 (207.434) - 1991ccm, 184pk, 135kw - M 274.920 E-CLASS Convertible (A207) | 01.2010-12.2016 E 200 CGI (207.448) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820 E-CLASS Convertible (A207) | 01.2010-12.2016 E 220 BlueTEC (207.401) - 2143ccm, 177pk, 130kw - OM 651.911 E-CLASS Convertible (A207) | 01.2010-12.2016 E 220 CDI (207.402) - 2143ccm, 163pk, 120kw - OM 651.911 E-CLASS Convertible (A207) | 01.2010-12.2016 E 220 CDI / BlueTEC / d (207.402, 207.401) - 2143ccm, 170pk, 125kw - OM 651.911 E-CLASS Convertible (A207) | 01.2010-12.2016 E 250 CDI / BlueTEC / d (207.403, 207.404) - 2143ccm, 204pk, 150kw - OM 651.911 E-CLASS Convertible (A207) | 01.2010-12.2016 E 250 CGI (207.447) - 1796ccm, 204pk, 150kw - M 271.860 E-CLASS Convertible (A207) | 01.2010-12.2016 E 350 BlueTEC (207.426) - 2987ccm, 252pk, 185kw - OM 642.838 E-CLASS Convertible (A207) | 01.2010-12.2016 E 350 BlueTEC/ d (207.426) - 2987ccm, 258pk, 190kw - OM 642.838 E-CLASS Convertible (A207) | 01.2010-12.2016 E 350 CDI (207.422) - 2987ccm, 231pk, 170kw - OM 642.836 E-CLASS Convertible (A207) | 01.2010-12.2016 E 350 CDI (207.423) - 2987ccm, 265pk, 195kw - OM 642.838 E-CLASS Coupe E-CLASS Coupe (C207) | 01.2009-12.2016 E 200 (207.334) - 1991ccm, 184pk, 135kw - M 274.920 E-CLASS Coupe (C207) | 01.2009-12.2016 E 200 CGI (207.348) - 1796ccm, 184pk, 135kw - M 271.860, M 271.820 E-CLASS Coupe (C207) | 01.2009-12.2016 E 220 BlueTEC (207.301) - 2143ccm, 177pk, 130kw - OM 651.911 E-CLASS Coupe (C207) | 01.2009-12.2016 E 220 CDI (207.302) - 2143ccm, 163pk, 120kw - OM 651.911 E-CLASS Coupe (C207) | 01.2009-12.2016 E 220 CDI / d (207.302, 207.301) - 2143ccm, 170pk, 125kw - OM 651.911 E-CLASS Coupe (C207) | 01.2009-12.2016 E 250 CDI / BlueTEC / d (207.303, 207.304) - 2143ccm, 204pk, 150kw - OM 651.911 E-CLASS Coupe (C207) | 01.2009-12.2016 E 250 CGI (207.347) - 1796ccm, 204pk, 150kw - M 271.860 E-CLASS T-Model E-CLASS T-Model (S212) | 08.2009-12.2016 E 200 (212.234) - 1991ccm, 184pk, 135kw - M 274.920 E-CLASS T-Model (S212) | 08.2009-12.2016 E 200 CDI / BlueTEC (212.205, 212.206) - 2143ccm, 136pk, 100kw - OM 651.925 E-CLASS T-Model (S212) | 08.2009-12.2016 E 200 CGI (212.248) - 1796ccm, 184pk, 135kw - M 271.860 E-CLASS T-Model (S212) | 08.2009-12.2016 E 220 CDI (212.202) - 2143ccm, 163pk, 120kw - OM 651.924 E-CLASS T-Model (S212) | 08.2009-12.2016 E 220 CDI / BlueTEC (212.202, 212.201) - 2143ccm, 170pk, 125kw - OM 651.924 SLC SLC (R172) | 01.2016-10.2017 180 (172.431) - 1595ccm, 156pk, 115kw - M 274.910 SLK SLK (R172) | 02.2011-??? 200 (172.448) - 1796ccm, 184pk, 135kw - M 271.860, M 271.861 SLK (R172) | 02.2011-??? 250 (172.447) - 1796ccm, 204pk, 150kw - M 271.860, M 271.861 -
Original part numbers
204 421 0712 MERCEDES-BENZ 204 421 1612 MERCEDES-BENZ 204 421 2412 MERCEDES-BENZ 204 421 2512 MERCEDES-BENZ 212 421 1212 MERCEDES-BENZ 212 421 1312 MERCEDES-BENZ A 212 421 1312 MERCEDES-BENZ A 204 421 0712 MERCEDES-BENZ A 204 421 1612 MERCEDES-BENZ A 204 421 2412 MERCEDES-BENZ A 204 421 2512 MERCEDES-BENZ A 212 421 1212 MERCEDES-BENZ 204 421 0712 MERCEDES-BENZ (BBDC) 204 421 2512 MERCEDES-BENZ (BBDC) 212 421 1312 MERCEDES-BENZ (BBDC) A 204 421 0712 MERCEDES-BENZ (BBDC) A 204 421 2512 MERCEDES-BENZ (BBDC) A 212 421 1312 MERCEDES-BENZ (BBDC) -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
